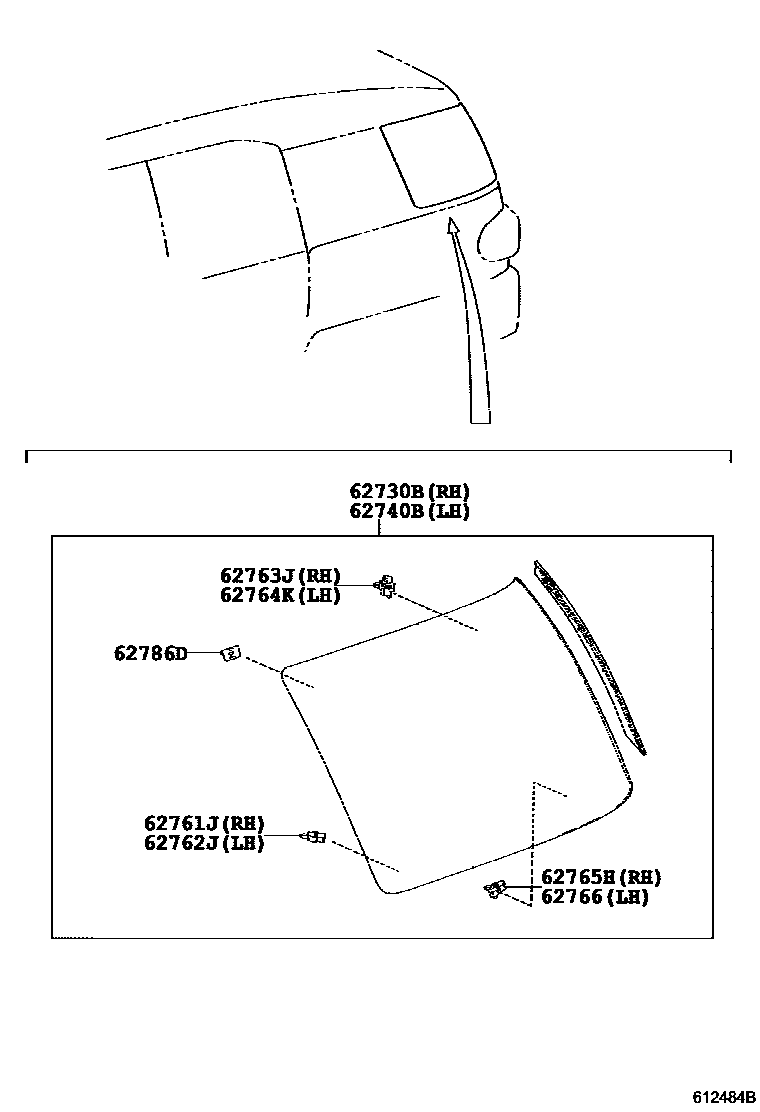

Toyota FJ CRUISER — SIDE WINDOW

62730BWINDOW ASSY, QUARTER, REAR RH

main62730-35151i200712-200906

*TT,T=3.1,PRIVACY

main62730-35152i200907-201011

*TT,T=3.1,PRIVACY; *TT,T=3.1,PRIVACY,BACK GLASS-PRIVACY

main62730-35153i201308

*TT,T=3.1,PRIVACY; *TT,T=3.1,PRIVACY,BACK GLASS-PRIVACY

main62730-35161i200707-200906

*UVCTT,T=3.1,GREEN

main62730-35162i200907-201011

*UVCTT,T=3.1,GREEN

main62730-35163i201307

*UVCTT,T=3.1,GREEN

62740BWINDOW ASSY, QUARTER, REAR LH

main62740-35151i200712-200906

*TT,T=3.1,PRIVACY

main62740-35152i201011-201307

*TT,T=3.1,PRIVACY; *TT,T=3.1,PRIVACY,BACK GLASS-PRIVACY

main62740-35153i201308

*TT,T=3.1,PRIVACY; *TT,T=3.1,PRIVACY,BACK GLASS-PRIVACY

main62740-35161i200707-200906

*UVCTT,T=3.1,GREEN

main62740-35162i201011-201306

*UVCTT,T=3.1,GREEN

main62740-35163i201307

*UVCTT,T=3.1,GREEN

62761JRETAINER, QUARTER WINDOW GLASS, FRONT RH

main62761-35010i201011

62762JRETAINER, QUARTER WINDOW GLASS, FRONT LH

main62761-35010i200707-201011

62763JRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-35010i200707-201011

62764KRETAINER, QUARTER WINDOW GLASS, UPPER

main62764-35010i201011

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-35010i201011

62766RETAINER, QUARTER WINDOW GLASS, LOWER LH

main62766-35010i200707-201011

62786DSPACER, QUARTER WINDOW GLASS, NO.2

main62786-35020×2i200707-201011

9 parts on this diagram · 1 diagram in section

SIDE WINDOW for Toyota FJ CRUISER

This section contains 9 genuine Toyota parts for the SIDE WINDOW system of the Toyota FJ CRUISER. Key components include: WINDOW ASSY, QUARTER, REAR RH, WINDOW ASSY, QUARTER, REAR LH, RETAINER, QUARTER WINDOW GLASS, FRONT RH, RETAINER, QUARTER WINDOW GLASS, FRONT LH, RETAINER, QUARTER WINDOW GLASS, UPPER.
