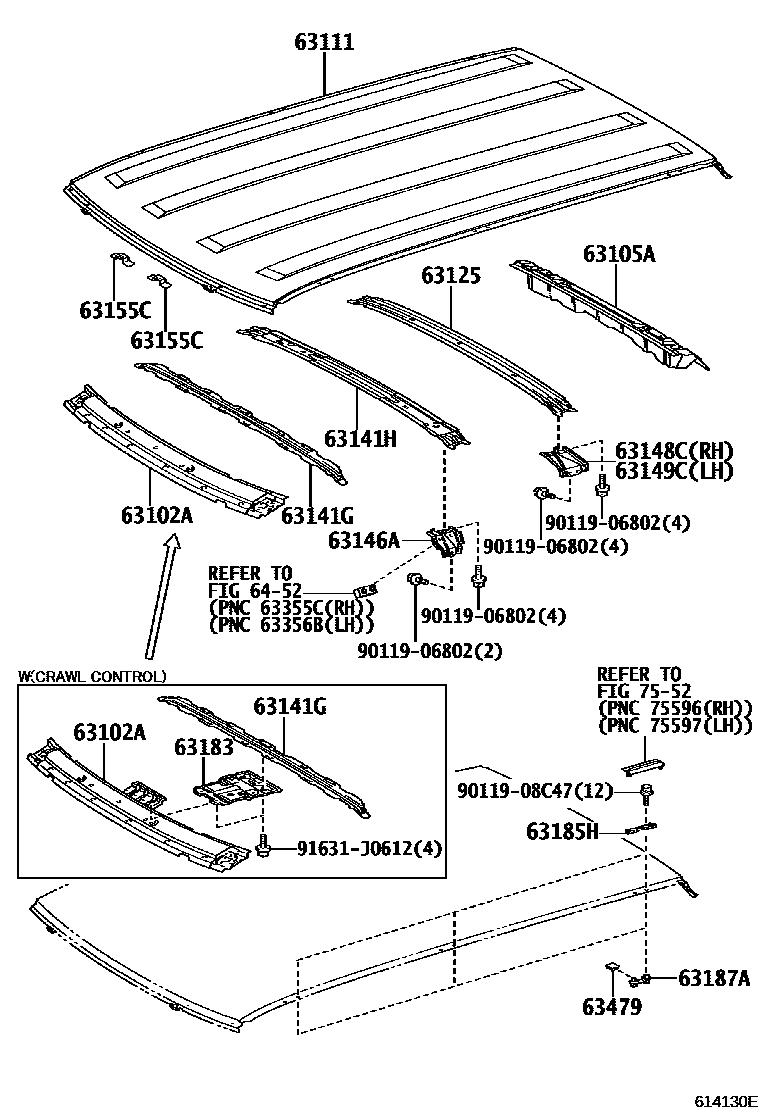

Toyota FJ CRUISER — ROOF PANEL & BACK PANEL

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-35050iGSJ15..SA201011-201208

main63102-35080iGSJ15..ATM..(ARL,CHI,GCC,GEN)201208

VSC-WITH(A-TRC & CRAWL CONTROL)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-35080iGSJ15200707-200907

main63105-35081iGSJ15200908-200912

main63105-35082iGSJ15201001-201011

63111PANEL, ROOF

main63111-35280iGSJ15200707-201011

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-35030iGSJ15201011

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63104-35020iGSJ15..ATM..(ARL,CHI,GCC,GEN)201208

VSC-WITH(A-TRC & CRAWL CONTROL)

main63141-35050iGSJ15200707-201011

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63103-35020iGSJ15200707-201011

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-35010×2iGSJ15200707-201011

63148CREINFORCEMENT, ROOF PANEL SIDE, RH

main63148-35010iGSJ15200707-201011

63149CREINFORCEMENT, ROOF PANEL SIDE, LH

main63149-35010iGSJ15200707-201011

63155CRETAINER, ROOF PANEL SUPPORT

main63155-35010×2iGSJ15200707-201011

63183BRACKET, ROOF CONSOLE, FRONT

main63183-35010iGSJ15..ATM..GCC201208

VSC-WITH(A-TRC & CRAWL CONTROL)

63185HBRACKET, ROOF RACK

main63185-42020×6iGSJ15200707-201011

63187ABRACKET, ROOF RACK, REAR

main63187-35020×6iGSJ15200707-201011

63479RETAINER, ROOF INNER RACK

main63479-42010×6iGSJ15200707-201011

6452

7552

9011906802

main90119-06802

9011908C47

main90119-08C47

91631J0612

main91631-J0612

19 parts on this diagram · 1 diagram in section
