Toyota FJ CRUISER — MIRROR
81880DBULB, OUTER MIRROR LAMP ASSY
12V 5W; 12V 5W,FOR GCC; 12V 5W,IMAGE PACKAGE
87807STAY SUB-ASSY, INNER REAR VIEW MIRROR
87810MIRROR ASSY, INNER REAR VIEW
AUDIO-AM/FM CD 6SPEAKER&BACK MONITOR-WITH; BACK MONITOR-WITH
BACK MONITOR-WITH
DK.GRAY,TRIM1#
AUDIO-RADIO LESS 8SPEAKER&BACK MONITOR-WITH; BACK MONITOR-WITH
BACK MONITOR-WITH
BACK MONITOR-WITH
AUDIO-AM/FM CD 6SPEAKER&BACK MONITOR-WITH
AUDIO-JBL 10SPEAKER WITH(SUB WOOFER)&BACK MONITOR-WITH
AUDIO-JBL 10SPEAKER WITH(SUB WOOFER)&BACK MONITOR-WITH
BACK MONITOR-WITH
BACK MONITOR-WITH
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
BACK MONITOR-WITH
DK.GRAY,TRIM1#
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,SILVER
NO PAINT REQ.,ALGERIA SPEC,SILVER; NO PAINT REQ.,IVORY COAST SPEC,SILVER; NO PAINT REQ.,SILVER
NO PAINT REQ.,SILVER
NO PAINT REQ.,FOR GCC; NO PAINT REQ.,IMAGE PACKAGE
NO PAINT REQ.,SPECIAL EDITION(KUWAIT/QATAR/YEMEN); NO PAINT REQ.,SPECIALEDITION(SAUDI ARABIA/UAE/BAHRAIN)
NO PAINT REQ.,PHILIPPINES SPEC,SILVER
NO PAINT REQ.,PHILIPPINES SPEC&COLOR PACKAGE(FOR GCC),SILVER; NO PAINT REQ.,PHILIPPINES SPEC&IMAGE PACKAGE,SILVER
NO PAINT REQ.,COLOR PACKAGE(FOR GCC),SILVER; NO PAINT REQ.,IMAGE PACKAGE,SILVER
FINAL EDITION GLOBAL(LHD)
FINAL EDITION GLOBAL(RHD)
87911AVISOR, OUTER MIRROR, RH
ALGERIA SPEC; IVORY COAST SPEC
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,SILVER
NO PAINT REQ.,SILVER
NO PAINT REQ.,SILVER
NO PAINT REQ.,FOR GCC; NO PAINT REQ.,IMAGE PACKAGE
NO PAINT REQ.,SPECIAL EDITION(KUWAIT/QATAR/YEMEN); NO PAINT REQ.,SPECIALEDITION(SAUDI ARABIA/UAE/BAHRAIN)
NO PAINT REQ.,PHILIPPINES SPEC,SILVER
NO PAINT REQ.,PHILIPPINES SPEC&COLOR PACKAGE(FOR GCC),SILVER; NO PAINT REQ.,PHILIPPINES SPEC&IMAGE PACKAGE,SILVER
NO PAINT REQ.,COLOR PACKAGE(FOR GCC),SILVER; NO PAINT REQ.,IMAGE PACKAGE,SILVER
FINAL EDITION GLOBAL(LHD)
FINAL EDITION GLOBAL(RHD)
87941AVISOR, OUTER MIRROR, LH
ALGERIA SPEC; IVORY COAST SPEC
9011906541
main90119-06541
9015450005
main90154-50005
9098011181
main90980-11181
13 parts on this diagram · 2 diagrams in section

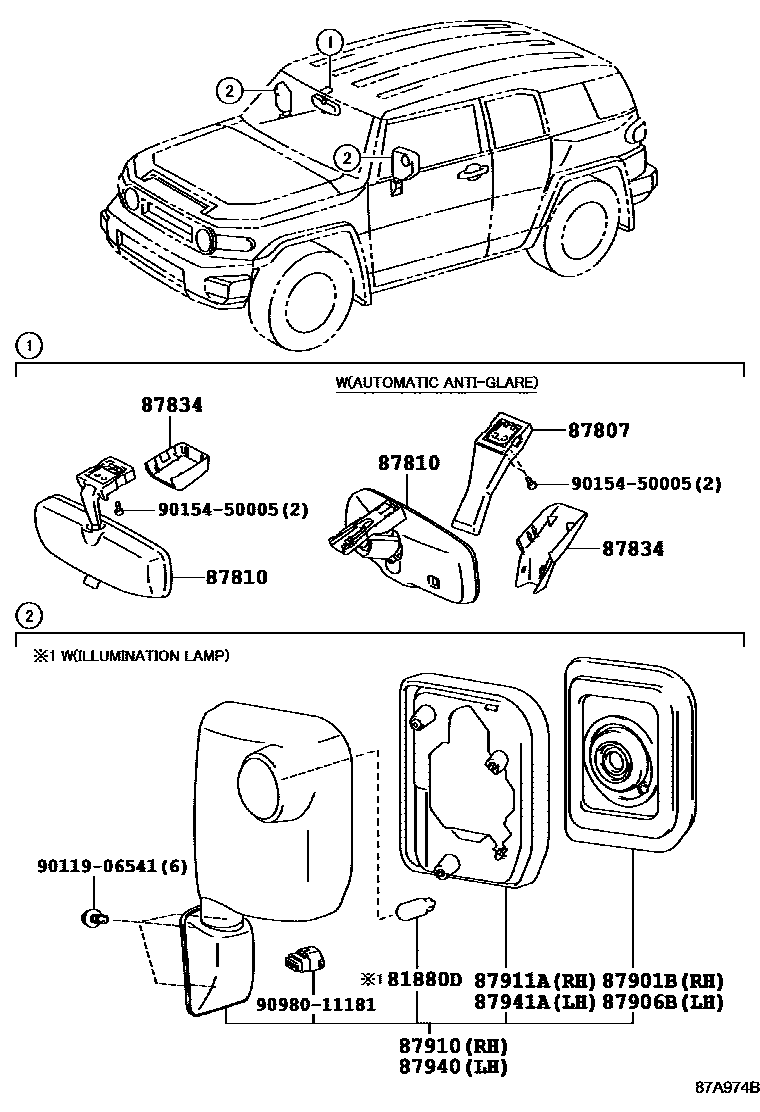

MIRROR for Toyota FJ CRUISER
This section contains 13 genuine Toyota parts for the MIRROR system of the Toyota FJ CRUISER. Key components include: BULB, OUTER MIRROR LAMP ASSY, STAY SUB-ASSY, INNER REAR VIEW MIRROR, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR SUB-ASSY, OUTER REAR VIEW, RH.
