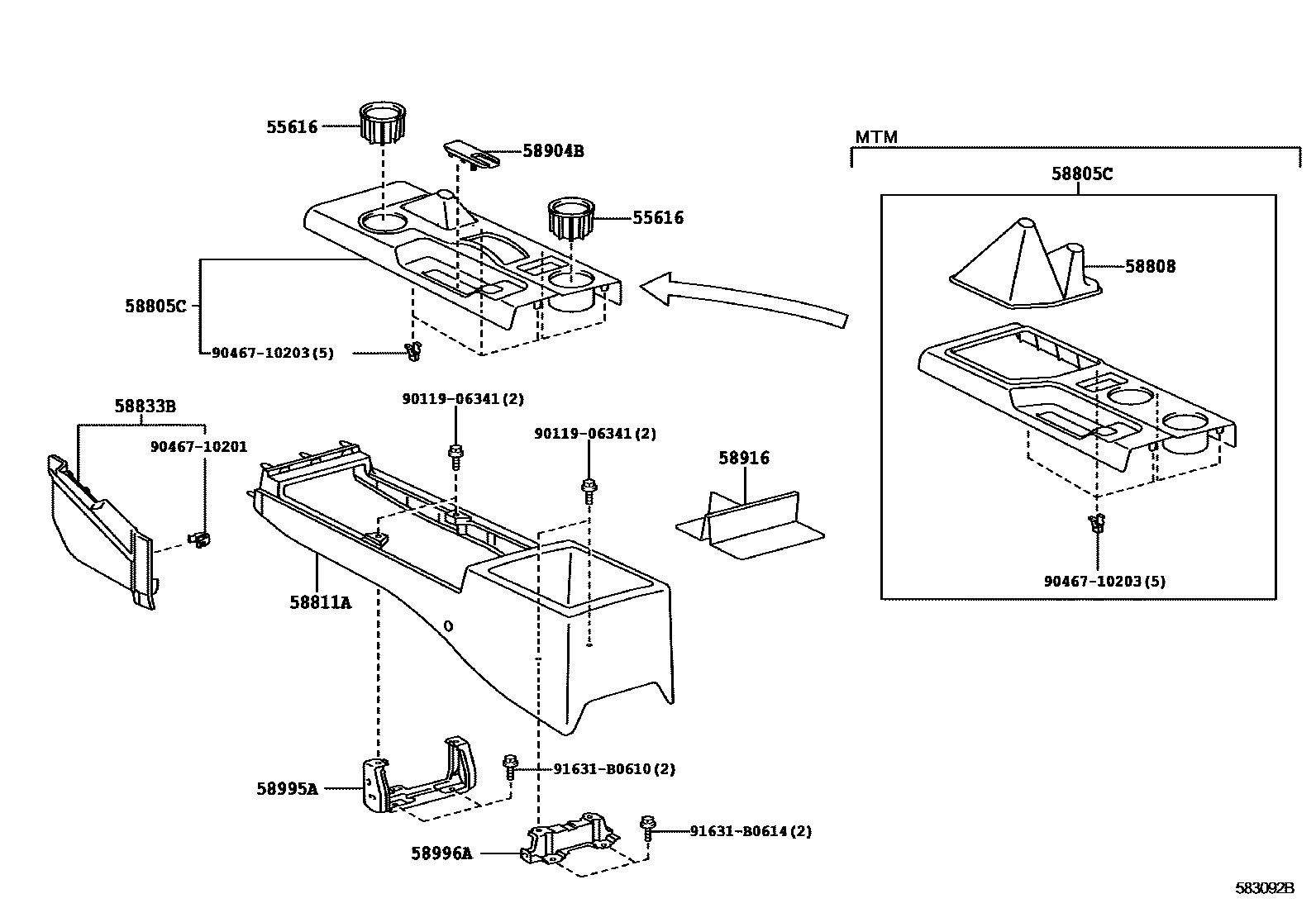

Toyota FJ CRUISER — CONSOLE BOX & BRACKET

0001 1 0002 1

55616DAMPER, INSTRUMENT PANEL CUP HOLDER

main55616-35010×2iGSJ15..MTM201011-201712

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-35081-B0iGSJ15..ATM..LHD201011-201512

DK.GRAY,TRIM1#

main58805-35082-B0iGSJ15..ATM..LHD201601

DK.GRAY,TRIM1#

main58805-35100-B0iGSJ15..MTM201011-201712

DK.GRAY,TRIM1#

main58805-35130-B0iGSJ15..RHD201011

DK.GRAY,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-35300-B0iGSJ15..MTM200707-201011

DK.GRAY,TRIM1#

58811ABOX, CONSOLE, FRONT

main58802-35230-B0iGSJ15..MTM200707-201011

DK.GRAY,TRIM1#

main58802-35240-B0iGSJ15..ATM..LHD201011-201512

DK.GRAY,TRIM1#

main58802-35241-B0iGSJ15..ATM..LHD201601

DK.GRAY,TRIM1#

main58802-35250-B0iGSJ15..RHD201011

DK.GRAY,TRIM1#

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-35060-B0iGSJ15200707-201011

DK.GRAY,TRIM1#

main58833-35070-B0iGSJ15..RHD201011

DK.GRAY,TRIM1#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-35050iGSJ15200707-201011

main58904-35060-B0iGSJ15..RHD201011

DK.GRAY,TRIM1#

58916MAT, BOX BOTTOM

main58916-35050iGSJ15200707-201011

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-60060iGSJ15200707-201011

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-60061iGSJ15200707-201011

9011906341

main90119-06341

9046710201

main90467-10201

9046710203

main90467-10203

91631B0610

main91631-B0610

91631B0614

main91631-B0614

14 parts on this diagram · 2 diagrams in section
