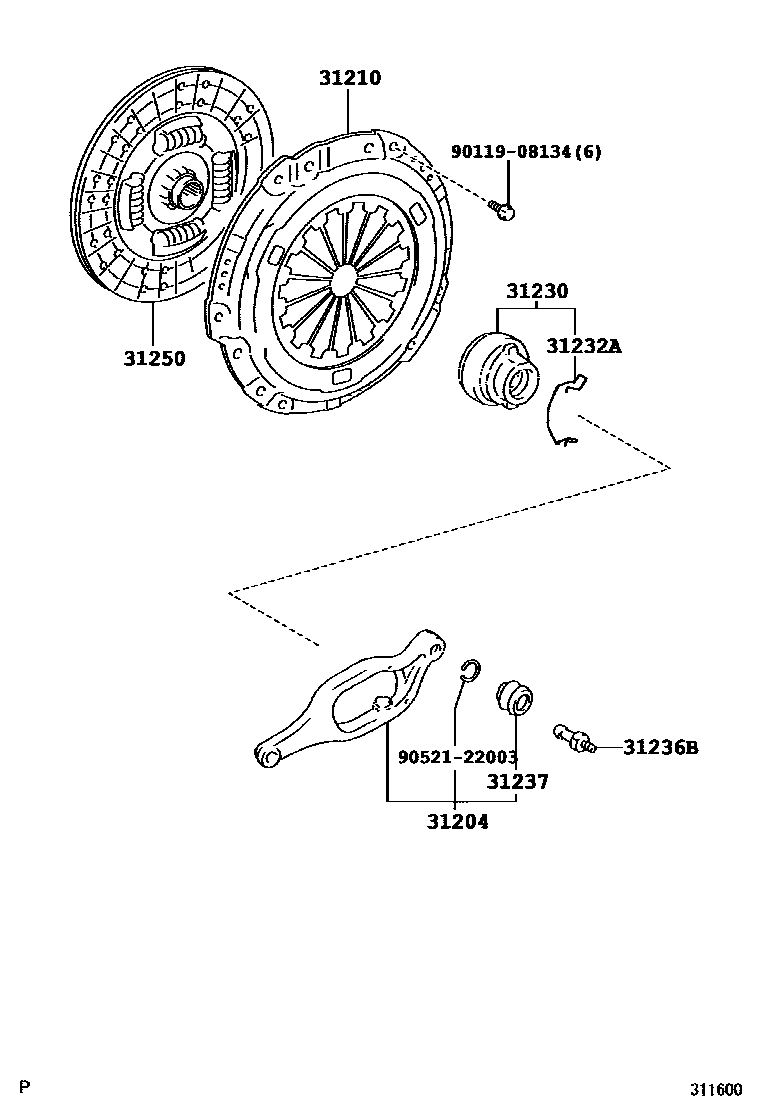

Toyota FJ CRUISER — CLUTCH & RELEASE FORK

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-35060i200707-201011

31210COVER ASSY, CLUTCH

main31210-60280i200707-201011

31230BEARING ASSY, CLUTCH RELEASE

main31230-60240i200707-201009

main31230-60241i201009-201011

31232ACLIP, RELEASE BEARING HUB

main31232-60050i200707-201011

31236BSUPPORT, RELEASE FORK

main31236-35050i201010-201011

main31236-60060i200707-201010

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-60010i200707-201011

31250DISC ASSY, CLUTCH

main31250-35450i200902-200903

main31250-35451i200904-201011

main31250-60370i200707-200901

9011908134

main90119-08134

9052122003

main90521-22003

9 parts on this diagram · 1 diagram in section

CLUTCH & RELEASE FORK for Toyota FJ CRUISER

This section contains 9 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota FJ CRUISER. Key components include: FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB, SUPPORT, RELEASE FORK.
