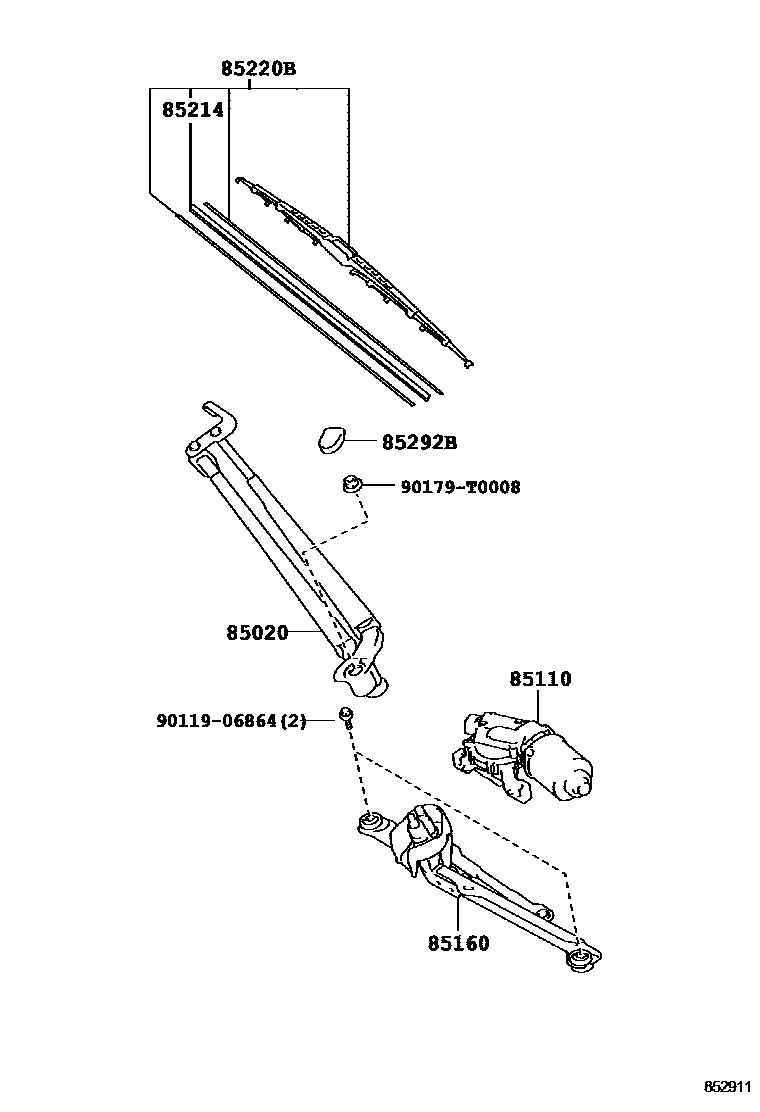

Toyota ETIOS — WINDSHIELD WIPER

85020ARM ASSY, FRONT WIPER

main85020-52010iNGK1#201209-201708

main85020-52011iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201709-202103

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0D170iNGK1#201209-201604

main85110-0D310iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201604-202103

85160LINK ASSY, WINDSHIELD WIPER

main85150-0D170iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

85214RUBBER, WIPER BLADE, NO.1

main85214-44140iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

85220BBLADE, FRONT WIPER

main85222-52260iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

85292BCAP, FRONT WIPER ARM HEAD

main85292-12020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

9011906864

main90119-06864

90179T0008

main90179-T0008

8 parts on this diagram · 1 diagram in section
