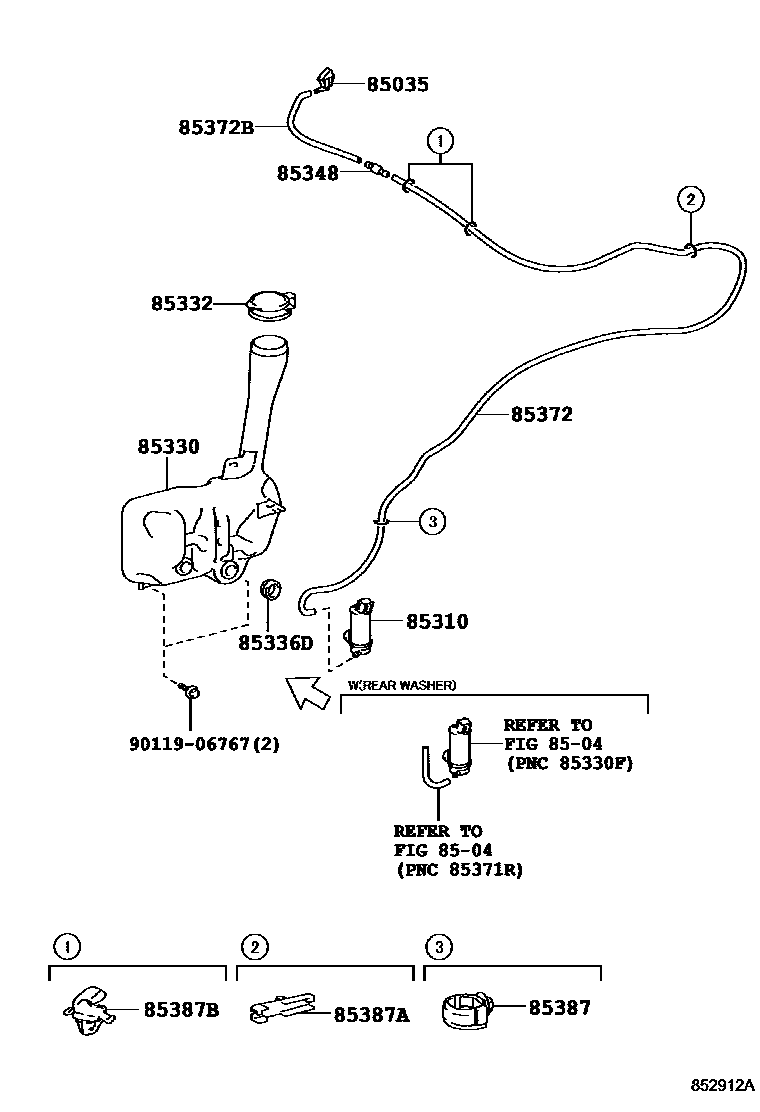

Toyota ETIOS — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0D130iNGK1#201209-201903

main85381-0D240iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201903-202103

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D180iNGK15;NGK11..STD201209-201903

main85330-0D190iNGK11,12..CROSS,X,XLS,XS201209-201903

main85330-21010iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201903-202103

sub85330-0D100

85330JAR ASSY, WINDSHIELD WASHER

main85315-0D150iNGK15;NGK11..STD201209-201408

main85315-0D151iNGK15201408-201903

main85315-0D160iNGK11,12..CROSS,X,XLS,XS201209-201408

main85315-0D161iNGK11,12201408-201903

main85315-0D190iNGK11..4FC;NGK12..X,XLS;NGK12..XS..AGT201903

main85315-0D210iNGK15..BZ201903-202103

85332CAP, WINDSHIELD WASHER JAR

main85316-0D160iNGK1#201209-201903

main85316-0D190iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201903-202103

85336DPACKING, WINDSHIELD WASHER JAR

main85336-0D160iNGK1#201209-201903

main85336-60300iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201903-202103

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iNGK11..4FC;NGK15..AGT;NGK12..X,XLS;NGK12..XS..AGT201903

main85385-0D090iNGK1#201209-201903

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33201iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201903-202103

L=1830

main90069-46060iNGK1#201209-201903

L=1830

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33203iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201903-202103

L=250

main90069-46061iNGK1#201209-201903

L=250

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-3F230iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

85387ACLAMP, WASHER, NO.2

main85387-12840iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

85387BCLAMP, WASHER, NO.3

main85371-12040×2iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

9011906767

main90119-06767

13 parts on this diagram · 1 diagram in section
