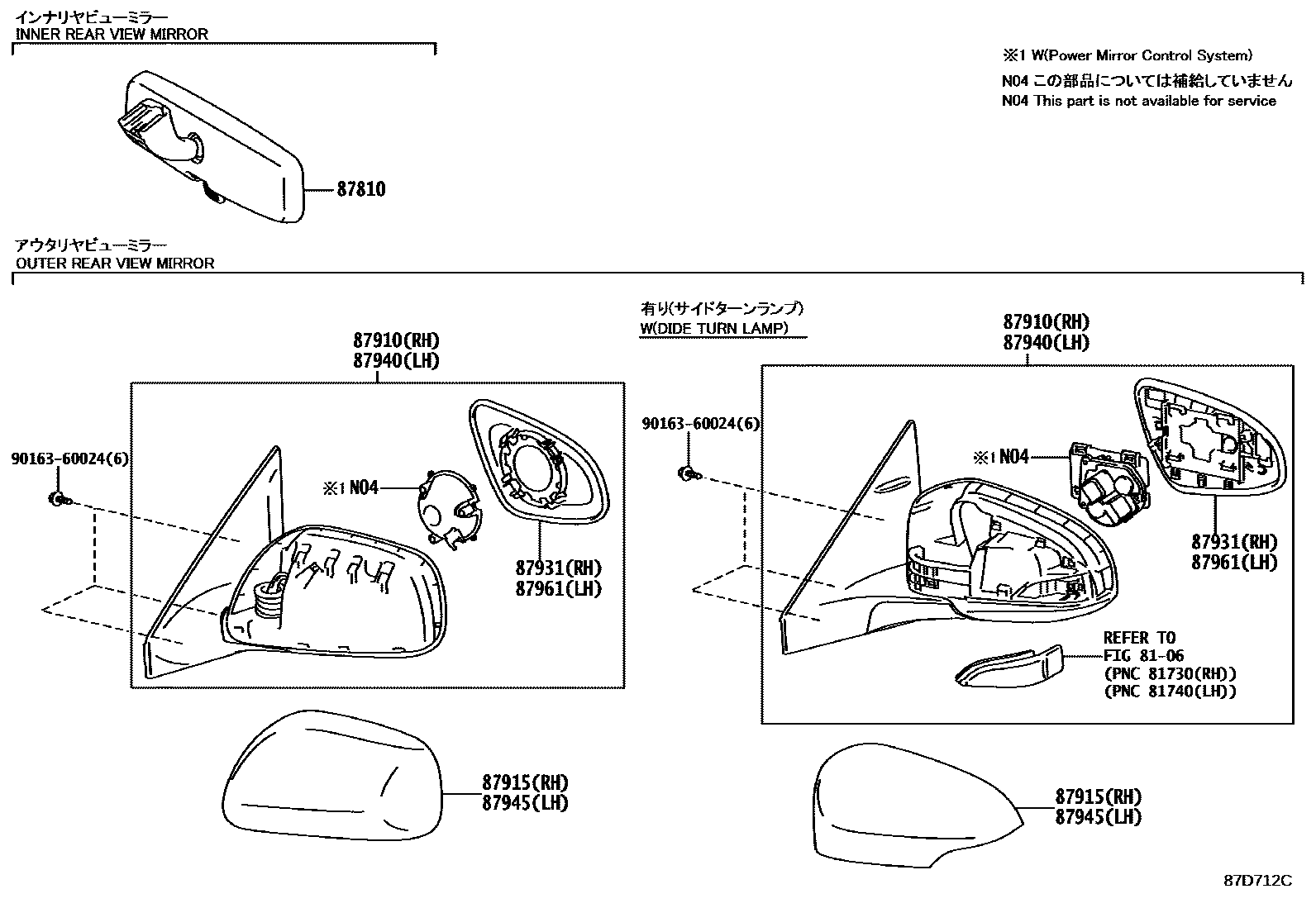

Toyota ETIOS — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
main87810-0D050iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE(COLORED),WITH(TURN LAMP)
87915COVER, OUTER MIRROR, RH
PAINT REQ.
NO PAINT REQ.
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*ERCDM(COLORED)
NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE(COLORED),WITH(TURN LAMP)
87945COVER, OUTER MIRROR, LH
PAINT REQ.
NO PAINT REQ.
87961MIRROR OUTER, LH
9016360024
main90163-60024
9 parts on this diagram · 2 diagrams in section
