Toyota ETIOS — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

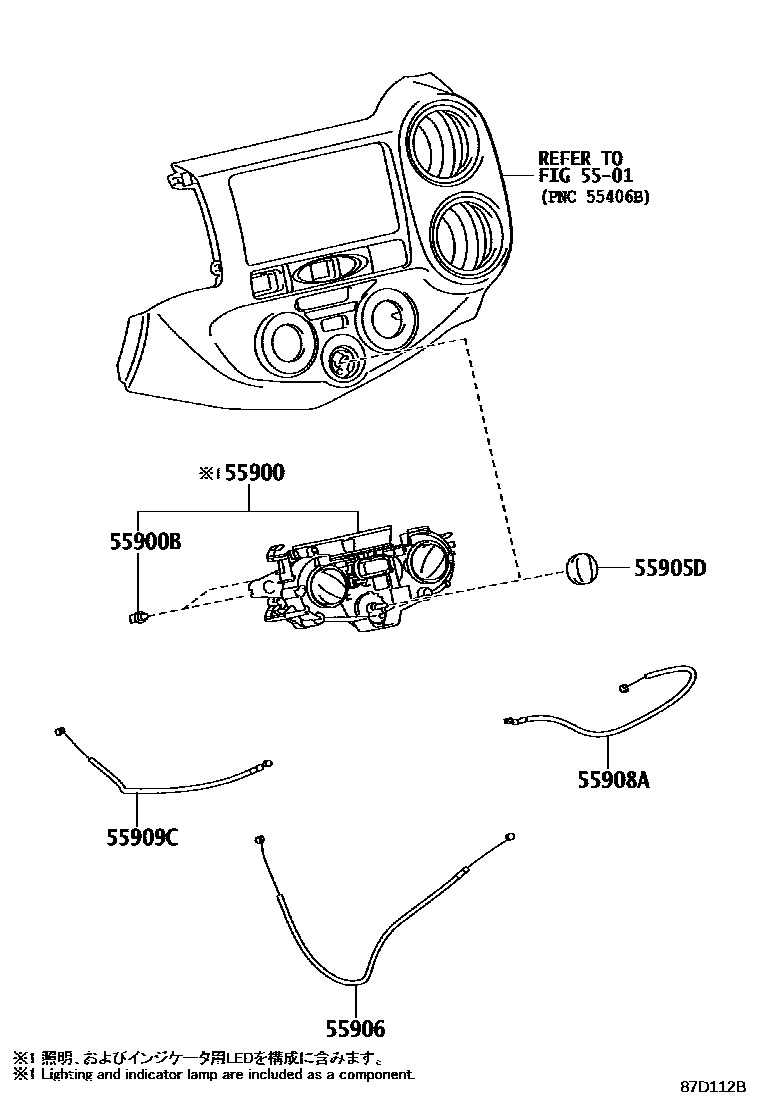

55900CONTROL ASSY, AIR CONDITIONER

main55900-0D270i201309

main55900-0D290-B0i201209-201309

FRONT AIR CONDITIONER-MANUAL,GRAY,TRIM1#; GRAY,TRIM1#

main55900-0D300-B0i201209-201309

GRAY,TRIM1#

main55900-0D300-C0i201309-201310

BLACK,TRIM2#

main55900-0D560-B0i201209-201309

GRAY,TRIM1#

main55900-0D830-C0i201309-201604

BLACK,TRIM2#

55900BBULB, AIR CONDITIONER CONTROL

main81936-0D010i201309-202103

12V 1.2W

55905DKNOB SUB-ASSY, CONTROL

main55905-0D100i201209-201309

main55905-0D160i201309-202103

main55905-0D170i201209-201309

main55905-0D171i201309-201604

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-0D090i201209-202103

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-0D110i201209-202103

55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0D080i201209-202103

7 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT for Toyota ETIOS

This section contains 13 genuine Toyota parts for the HEATING & AIR CONDITIONING - CONTROL & AIR DUCT system of the Toyota ETIOS. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, DUCT, HEATER TO REGISTER, NO.1, DUCT, HEATER TO REGISTER, NO.2, DUCT, HEATER TO REGISTER, NO.3, CONTROL ASSY, AIR CONDITIONER.
