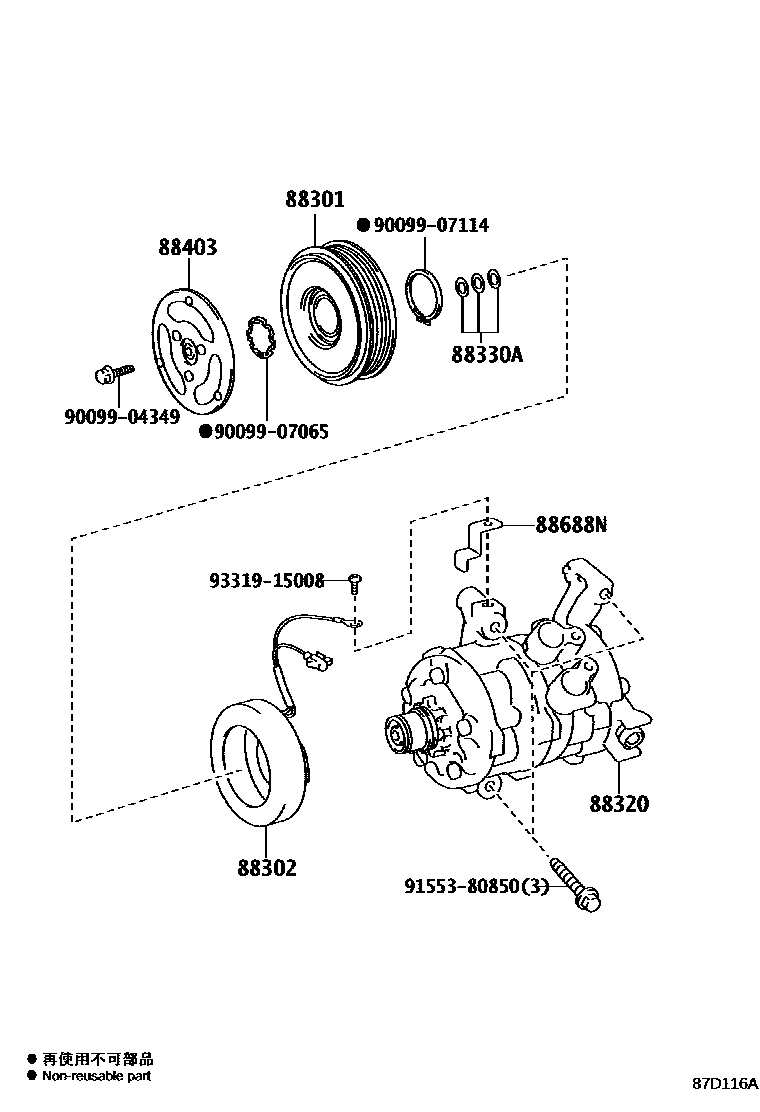

Toyota ETIOS — HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-0D150i201209-201604

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-0D120i201209-201604

88320COMPRESSOR ASSY, COOLER

main88320-0D050i201209-201604

main88320-0D120i201604-202103

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i201209-202103

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-0D080i201209-201604

88688NBRACKET, COOLER

main88688-0D380i201209-201604

main88849-0D030i201604-202103

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9155380850

main91553-80850

9331915008

main93319-15008

11 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota ETIOS

This section contains 13 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota ETIOS. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), HUB SUB-ASSY, MAGNET CLUTCH.
