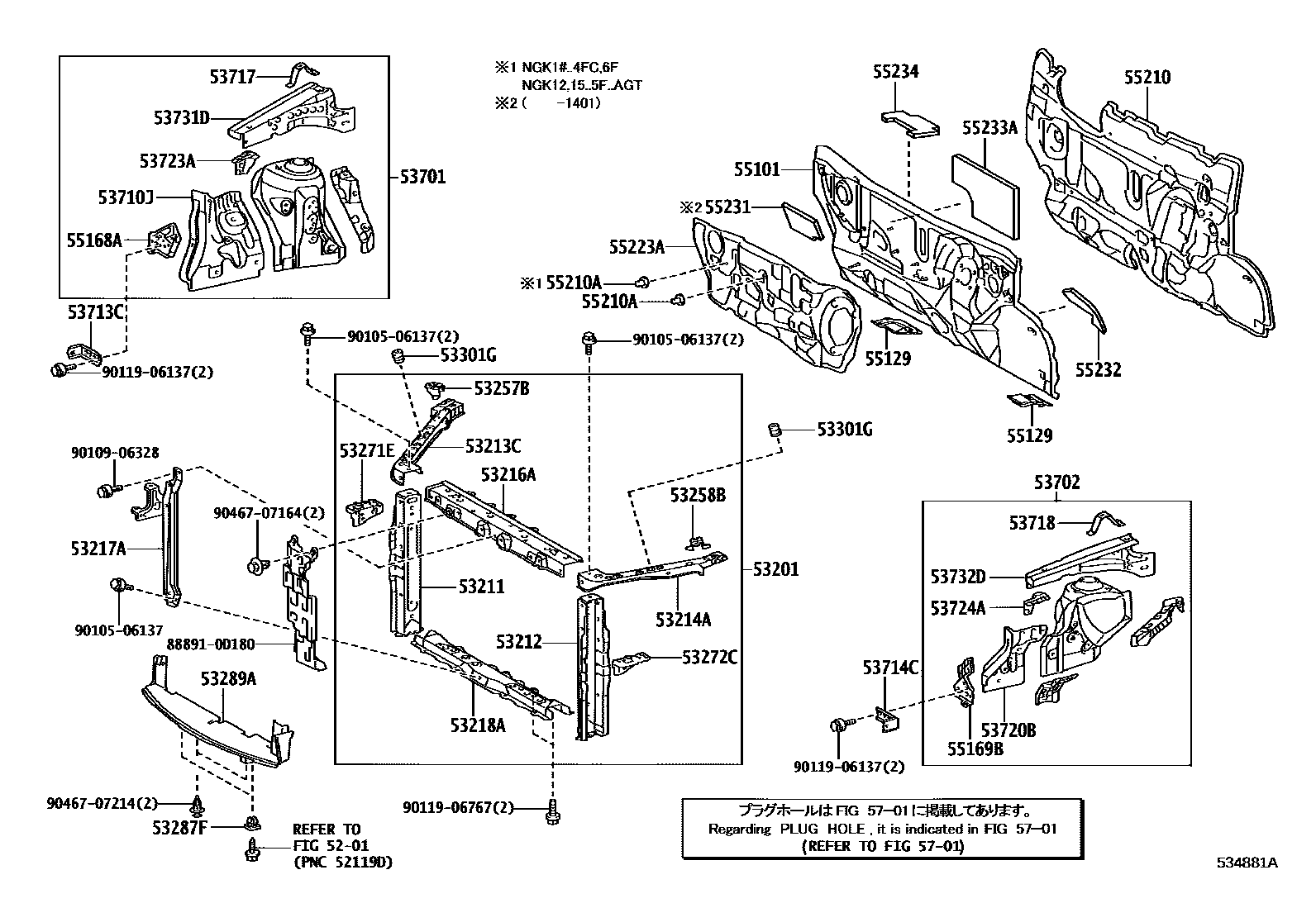

Toyota ETIOS — FRONT FENDER APRON & DASH PANEL

5201

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0D901iNGK1#..STD,X,XLS,XS201209-201312

main53201-0D904iNGK12..CROSS201311-201312

main53201-0D905iNGK1#..X,XLS,XS201312-201702

main53201-0D906iNGK12..CROSS201312-201702

main53201-0D908iNGK12..CROSS201702-201802

main53201-0D909supersedes 53201-0D907iNGK1#201809

W(PACKAGE OPTION : SS4 PLATING)

53211SUPPORT, RADIATOR, RH

main53211-0D060iNGK1#201209

53212SUPPORT, RADIATOR, LH

main53211-0D060iNGK1#201209-201312

main53212-0D090iNGK1#201312

53213CSUPPORT, RADIATOR, UPPER FRONT

main53213-0D080iNGK1#201209-201701

main53213-0D270iNGK1#201702

53214ASUPPORT, RADIATOR, UPPER LH

main53214-0D080iNGK1#201209

53216ASUPPORT, RADIATOR, UPPER

main53216-0D070iNGK1#..STD,X,XLS,XS201209

main53216-0D071iNGK12..CROSS201311-201802

53217ABRACE, HOOD LOCK SUPPORT

main53208-0D070iNGK1#..STD,X,XLS,XS201209

main53208-0D120iNGK12..CROSS201311-201802

main53208-YP010iNGK12,15..XLS201608

W(PACKAGE OPTION : SS4 PLATING)

53218ASUPPORT, RADIATOR, LOWER

main53218-0D060iNGK1#201312

main53218-0D080iNGK1#..X,XLS,XS201209-201311

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-0D010iNGK1#201209

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-0D010iNGK1#201209

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-0D010iNGK1#201209

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-0D010iNGK1#201209

53287FGROMMET, NO.1

main90189-06193×2iNGK1#201209

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-0D040iNGK1#..STD,X,XLS,XS201209

main53289-0D090iNGK12..CROSS201311-201802

53301GCUSHION, HOOD BUMPER

main90541-15111×2iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0D120iNGK1#201209-201611

main53701-0D121iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201612-202103

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0D110iNGK1#201209-201611

main53702-0D111iNGK11..4FC;NGK15..AGT;NGK12..XS..AGT;NGK12..CROSS,X,XLS201612

53710JAPRON ASSY, FRONT FENDER, RH

main53710-0D050iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-0D010iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53713-0D010iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

53717PLATE, FENDER APRON, RH

main53717-0D010iNGK1#201209-201409

main53717-0D160iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201410-202103

53718PLATE, FENDER APRON, LH

main53718-0D010iNGK1#201209-201409

main53718-0D160iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201410-202103

53720BAPRON ASSY, FRONT FENDER, LH

main53720-0D060iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-0D020iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53724-0D040iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-0D040iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-0D040iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

55101PANEL SUB-ASSY, DASH

main55101-0D250iNGK12,15..AGT201309-201604

main55101-0D270iNGK1#..BZ201209-201604

main55101-0D730iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201604-202103

main55101-0D740iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

55129COVER, DASH PANEL HOLE

main55129-0D090iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

RH

main55139-0D010iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209

LH

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-0D060iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-0D060iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209

55210INSULATOR ASSY, DASH PANEL

main55210-0D271iNGK11..STD201209-201310

main55210-0D291iNGK1#..CROSS,X,XLS,XS201209-201604

main55210-0D350iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201604-202103

55210ACLIP

main90467-06197×2iNGK11..4FC;NGK15..AGT;NGK12..5F..AGT;NGK12..6F..XS..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201309

55223AINSULATOR, DASH PANEL, OUTER

main55223-0D130iNGK1#201209-201604

main55223-0D220iNGK11..6F;NGK15..BZ;NGK12..XS..BZ201604-202103

55231SHEET, DASH PANEL INSULATOR, RH

main55231-0D020iNGK1#201209-201401

55232SHEET, DASH PANEL INSULATOR, LH

main55232-0D020iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209

55233ASHEET, DASH PANEL INSULATOR

main55233-0D040iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

55234SHEET, DASH PANEL INSULATOR, NO.2

main55234-0D040iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201209-202103

5701

888910D180PACKING (FOR COOLER)

main88891-0D180

9010506137

main90105-06137

9010906328

main90109-06328

9011906137

main90119-06137

9011906767

main90119-06767

9046707164

main90467-07164

9046707214

main90467-07214

47 parts on this diagram · 1 diagram in section
