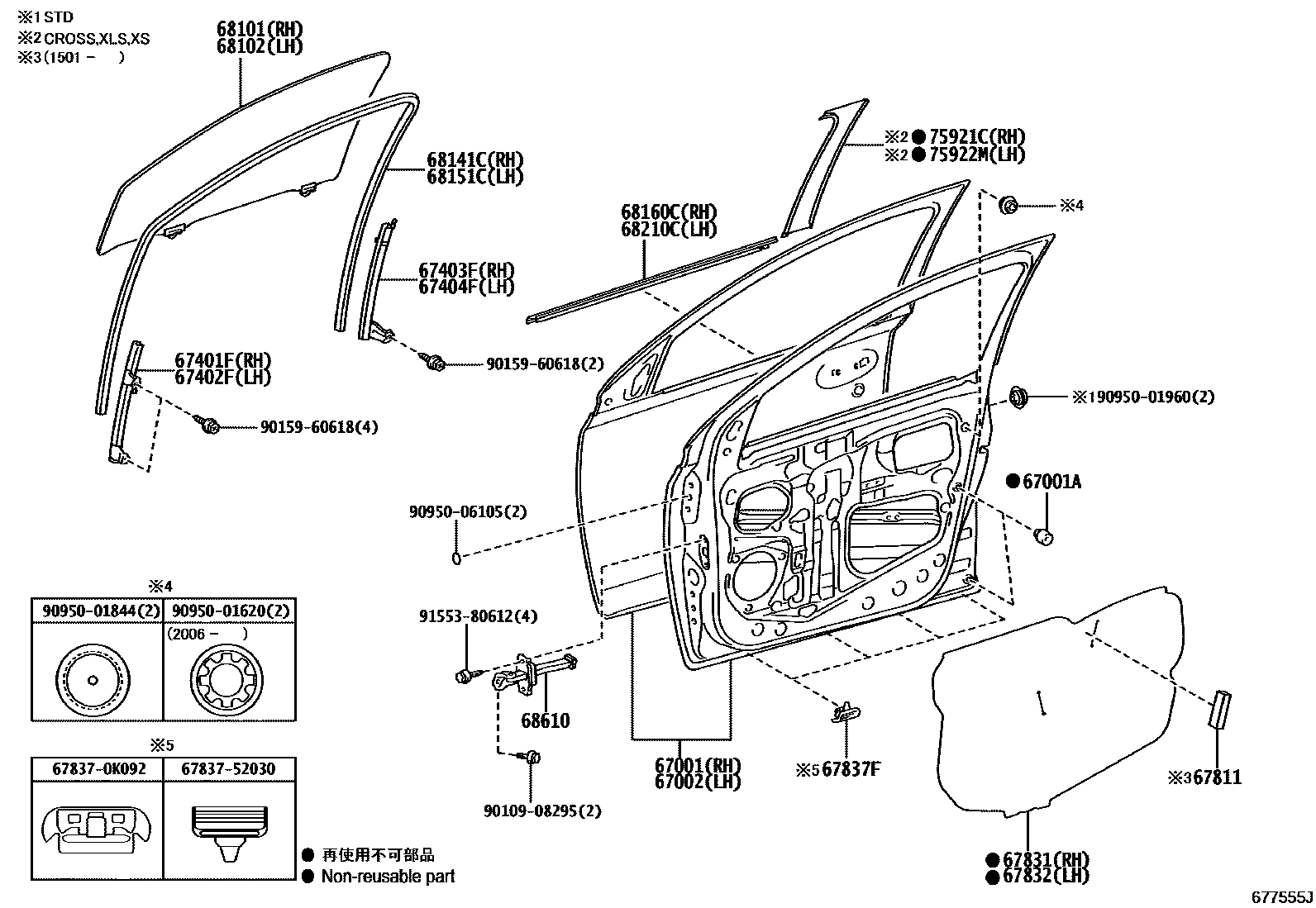

Toyota ETIOS — FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
main67404-0D100iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209
67811PAD, FRONT DOOR SILENCER
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837FSEAL, DOOR DUST PROOF
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=3.1,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=3.1,GREEN
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68610CHECK ASSY, FRONT DOOR
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
9010908295
main90109-08295
9015960618
main90159-60618
9095001620
main90950-01620
9095001844
main90950-01844
9095001960
main90950-01960
9095006105
main90950-06105
9155380612
main91553-80612
27 parts on this diagram · 2 diagrams in section
FRONT DOOR PANEL & GLASS for Toyota ETIOS
This section contains 38 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota ETIOS. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, CUSHION, FRONT DOOR PANEL, PANEL SUB-ASSY, FRONT DOOR, LH, FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH, FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH.
