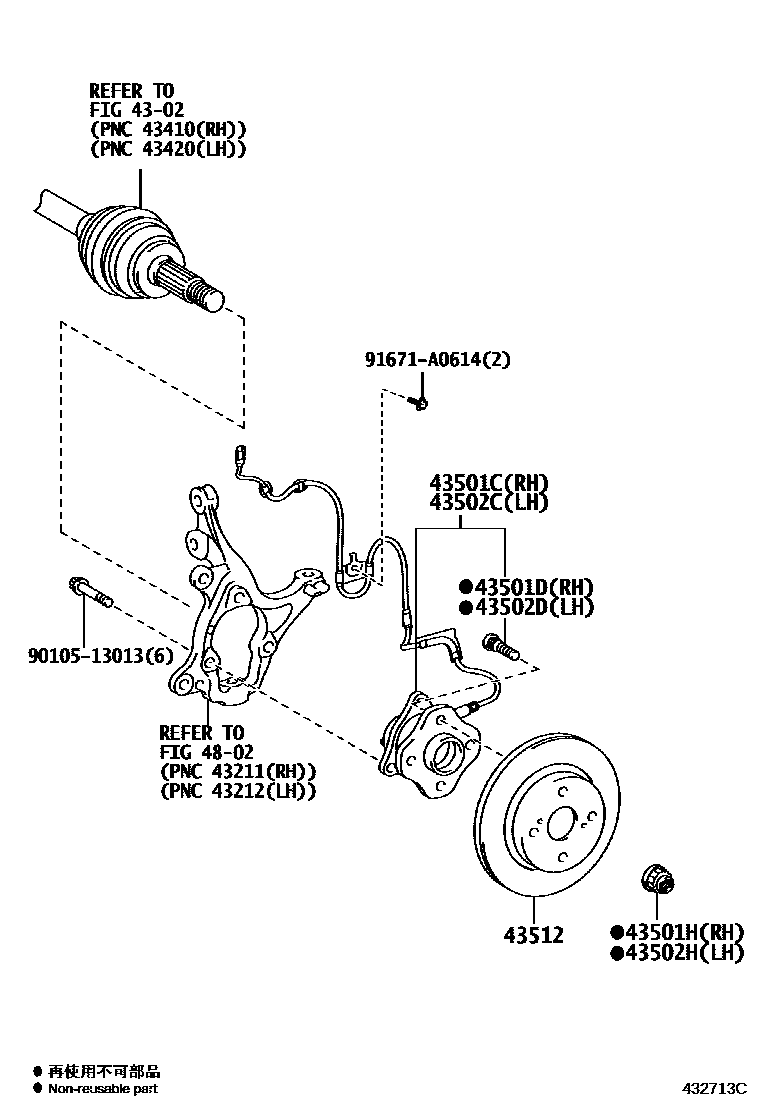

Toyota ETIOS — FRONT AXLE HUB
4302FRONT DRIVE SHAFT
43501CHUB SUB-ASSY, FRONT AXLE, RH
43501DBOLT, HUB (FOR FRONT AXLE RH)
43501HNUT (FOR FRONT AXLE SHAFT RH)
(J)
main90177-T0017iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201405-202103
(L)
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43560-0D030iNGK12,15..5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK11..(4FC,5F)..(X,XS);NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02049iNGK12,15..5F;NGK11..4FC,5F;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(CROSS,X,XLS)201209-202103
43502HNUT (FOR FRONT AXLE SHAFT LH)
(J)
(L)
43512DISC, FRONT
4802FRONT AXLE ARM & STEERING KNUCKLE
9010513013
main90105-13013
91671A0614
main91671-A0614
11 parts on this diagram · 1 diagram in section
FRONT AXLE HUB for Toyota ETIOS
This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota ETIOS. Key components include: FRONT DRIVE SHAFT, HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), NUT (FOR FRONT AXLE SHAFT RH), HUB SUB-ASSY, FRONT AXLE, LH.
