Toyota ETIOS — CRANKSHAFT & PISTON
04130RING SET, SINGLE PISTON
11711BEARING, CRANKSHAFT
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
11721BEARING, CRANKSHAFT, NO.2
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK4,REFER REPAIR MANUAL
MARK5,REFER REPAIR MANUAL
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
STD
13011RING SET, PISTON
STD
STD
STD
13041BEARING, CONNECTING ROD
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK1,(J),REFER R/M
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
13201ROD SUB-ASSY, CONNECTING
13265BOLT, CONNECTING ROD
main13265-21020×8i2NRFBE..NGK12..5F;1NRFBE,2NR#..NGK11,15;2NRFE..NGK12..X,XLS,XS;2NRFE..NGK12..5F..CROSS;2NRFBE..NGK12..(4FC,6F)..(XLS,XS)201209
13405FLYWHEEL SUB-ASSY
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8,(L)
L=18,OD=8,(J)
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
(J)
(J)
13453GEAR, FLYWHEEL RING
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING

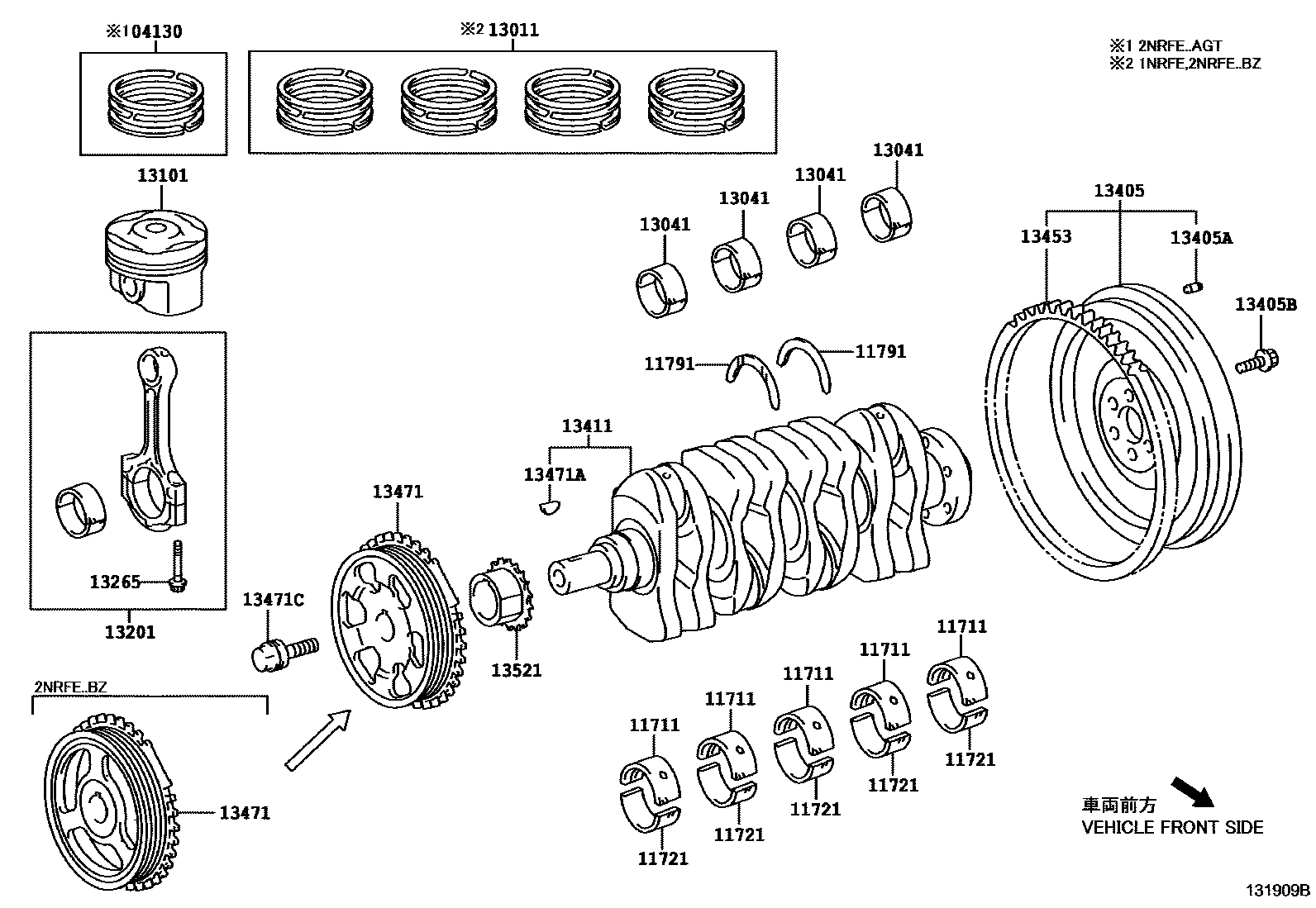

18 parts on this diagram · 2 diagrams in section
CRANKSHAFT & PISTON for Toyota ETIOS
This section contains 22 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota ETIOS. Key components include: RING SET, SINGLE PISTON, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, BEARING, CRANKSHAFT, NO.2, WASHER, CRANKSHAFT THRUST, UPPER.
