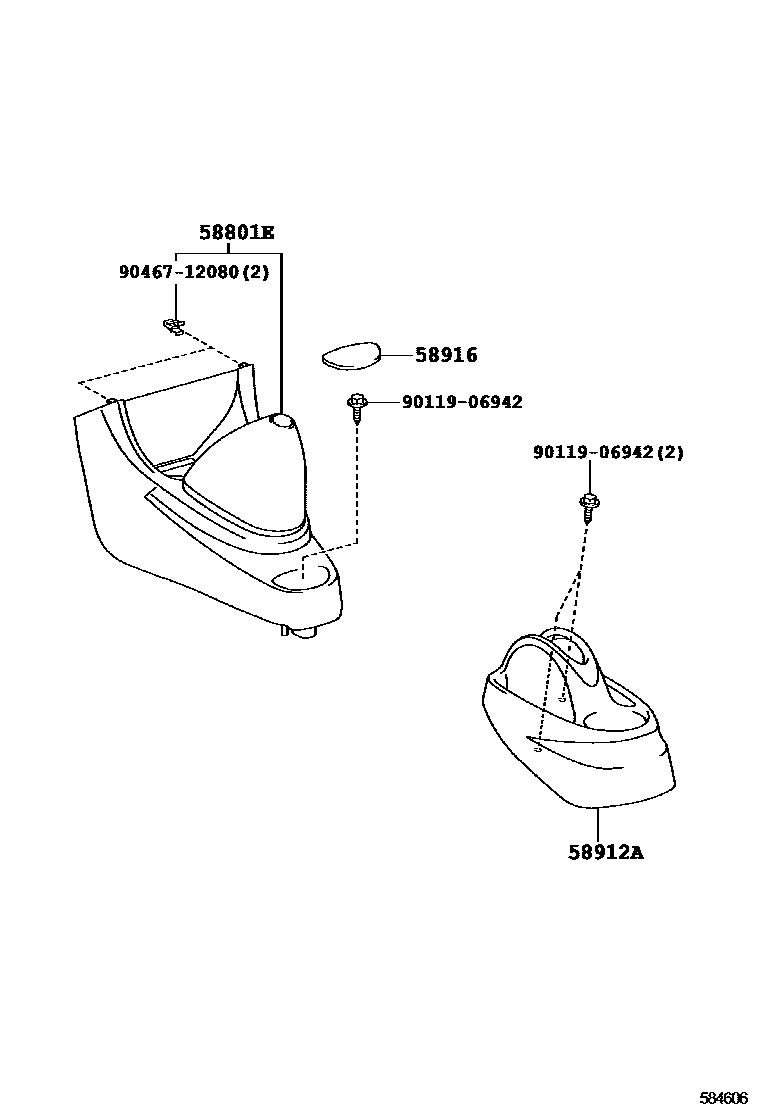

Toyota ETIOS — CONSOLE BOX & BRACKET

0001 1 0002 1

58801EBOX SUB-ASSY, CONSOLE, UPPER

main58801-0D020-C0iNGK11,15;NGK12..X,XLS;NGK12..XS..AGT201209-201604

BLACK,TRIM1#,2#

main58801-0D060-C0iNGK12..4FC..XS;NGK15..4FC..BZ201604-202103

BLACK,TRIM2#

main58801-0D070-C0iNGK12..XS..AGT;NGK15..6F..AGT;NGK12..6F..(CROSS,X,XLS)201604

BLACK,TRIM2#

58912ABOX, REAR CONSOLE

main58911-0D160-C0iNGK11,15;NGK12..X,XLS;NGK12..XS..AGT201209-201409

BLACK,TRIM1#,2#

main58911-0D360-C0iNGK11..6F;NGK15..(4FC,6F)..BZ;NGK12..(4FC,6F)..XS..BZ201409-202103

BLACK,TRIM2#

58916MAT, BOX BOTTOM

main58916-0D020iNGK15..6F..BZ;NGK11,12..6F..(X,XS)..BZ201209-202103

9011906942

main90119-06942

9046712080

main90467-12080

5 parts on this diagram · 2 diagrams in section
