Toyota ETIOS — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP & EXTINGU

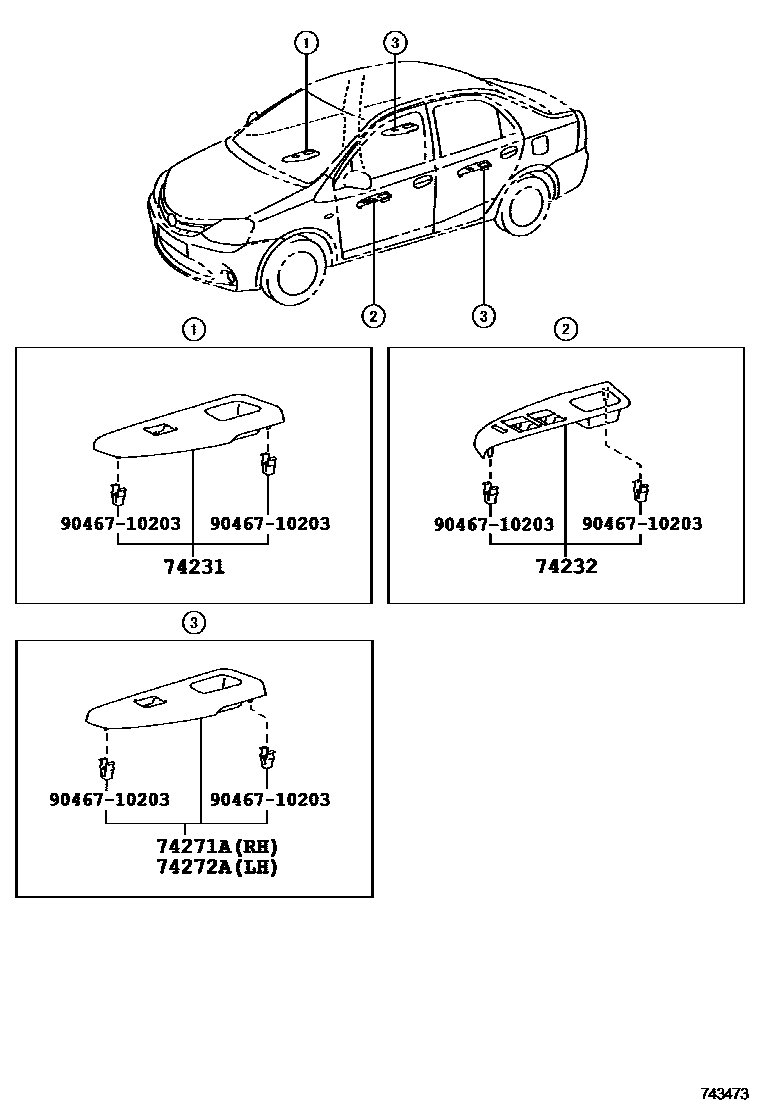

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0D180-C0iNGK11..4FC;NGK12..5F..XS..BZ;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(X,XLS)201309

BLACK,TRIM2#

main74231-0DA30iNGK12..CROSS201408-201802

(L)

main74231-52A20iNGK12..CROSS201408-201802

(J)

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0D160-C0iNGK11..4FC;NGK12..5F..XS..BZ;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(X,XLS)201309

BLACK,TRIM2#

main74232-0DA30iNGK12..CROSS201408-201802

(L)

main74232-52780iNGK12..CROSS201408-201802

(J)

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0D080-C0iNGK12..XLS;NGK12..XS..AGT;NGK11,15..XLS,XS201209-201604

BLACK,TRIM1#,2#

main74271-0D530iNGK12..CROSS201408-201802

(L)

main74271-52350iNGK12..CROSS201311-201408

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0D080-C0iNGK11..4FC;NGK12..5F..XS..BZ;NGK12..6F..XS..AGT;NGK15..(4FC,6F)..AGT;NGK12..(4FC,6F)..(X,XLS)201309

BLACK,TRIM2#

main74272-0D530iNGK12..CROSS201408-201802

(L)

main74272-52330iNGK12..CROSS201408-201802

(J)

9046710203

main90467-10203

5 parts on this diagram · 2 diagrams in section
