Toyota ETIOS/LIVA/CROSS — VACUUM PUMP

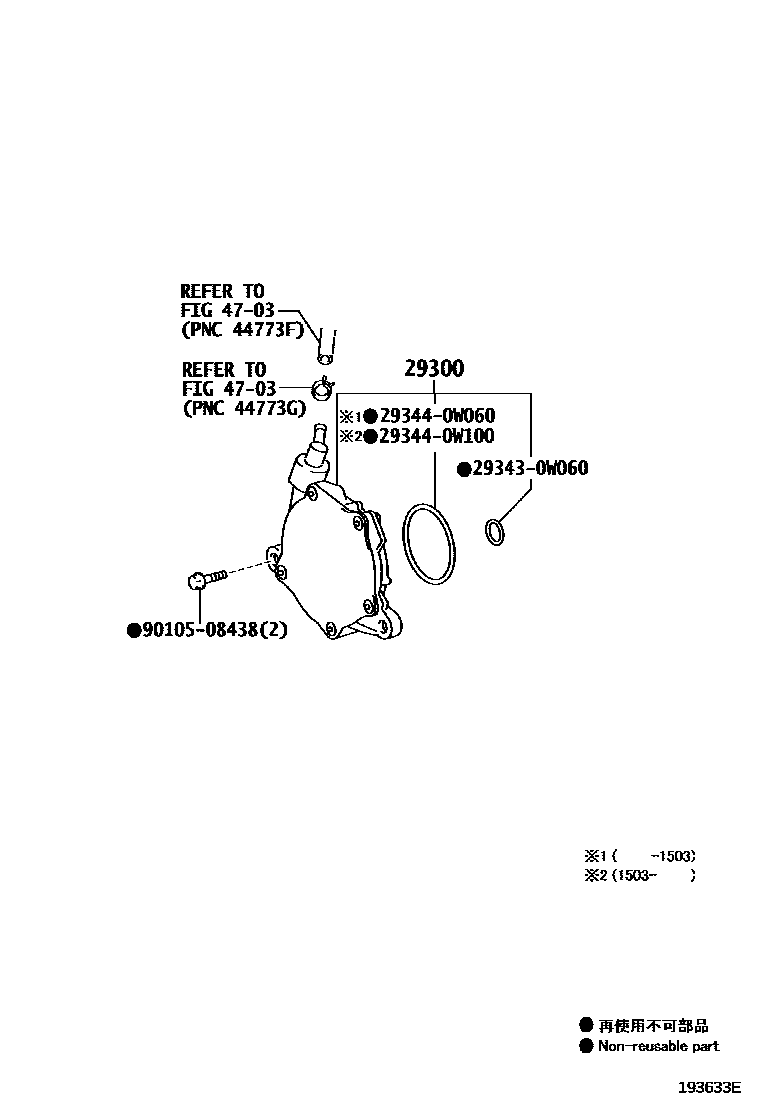

Parts diagram

29300PUMP ASSY, VACUUM

main29300-0W080i201108-201303

main29300-0W100i201503-201703

main29300-0W101i201704

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

293430W060RING, O VACUUM PUMP, NO.1

main29343-0W060

293440W060RING, O VACUUM PUMP, NO.2

main29344-0W060

293440W100RING, O VACUUM PUMP, NO.2

main29344-0W100

9010508438

main90105-08438

6 parts on this diagram · 1 diagram in section

VACUUM PUMP for Toyota ETIOS/LIVA/CROSS

This section contains 6 genuine Toyota parts for the VACUUM PUMP system of the Toyota ETIOS/LIVA/CROSS. Key components include: PUMP ASSY, VACUUM, BRAKE BOOSTER & VACUUM TUBE, RING, O VACUUM PUMP, NO.1, RING, O VACUUM PUMP, NO.2.
