Toyota ETIOS/LIVA/CROSS — METER

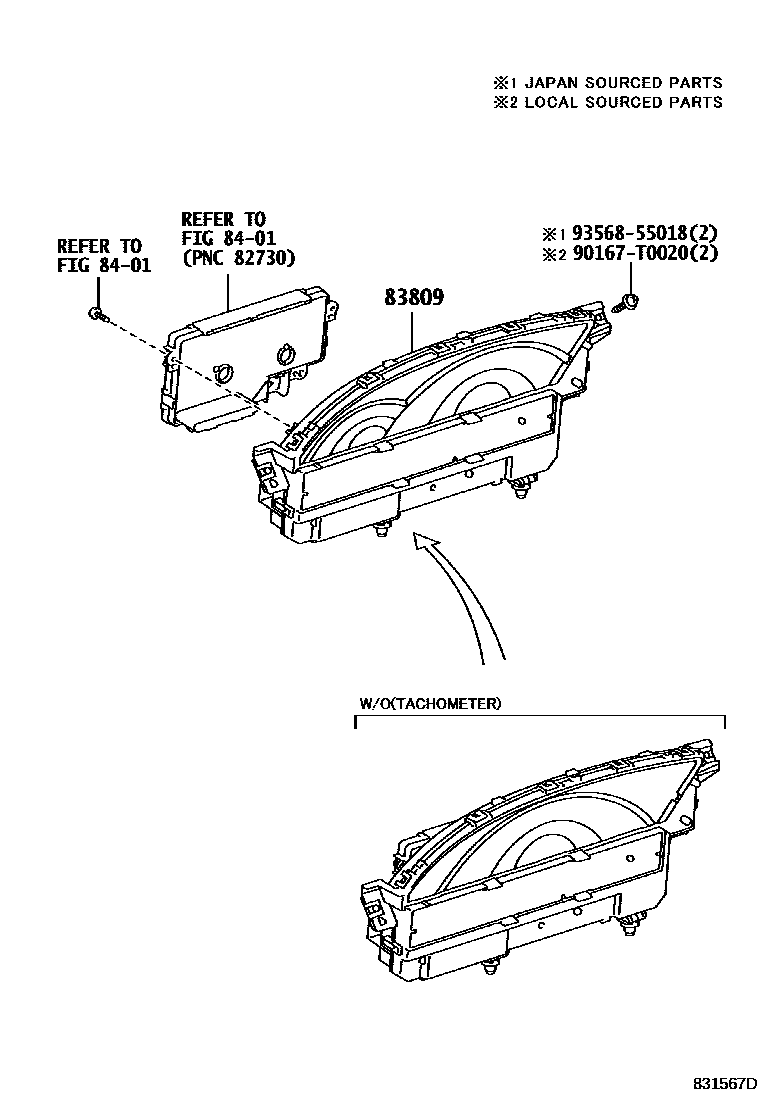

Parts diagram

83809METER SUB-ASSY, COMBINATION

main83809-0D010i201012-201302

main83809-0D020i201012-201303

main83809-0D030i201203-201303

main83809-0D050i201108-201303

main83809-0D070i201108-201303

main83809-0D090i201303-201501

main83809-0D100i201303-201501

main83809-0D110supersedes 83809-0D370i201303-201409

main83809-0D120supersedes 83809-0D380i201303-201409

SAFETY PACKAGE(WITH ABS)

main83809-0D130i201303-201609

main83809-0D170supersedes 83809-0D360i201303-201409

main83809-0D190i201303-201409

main83809-0D210i201409-201410

main83809-0D220i201404-201802

main83809-0D230i201404-201410

main83809-0D240supersedes 83809-0D330i201404

main83809-0D261i201501

main83809-0D271i201501

main83809-0D280i201401-201409

main83809-0D320i201409-201410

main83809-0D380i201410-201609

main83809-0D390i201410-201609

main83809-0D400i201410-201504

main83809-0D420i201802

DENSO

main83809-0D060i201108-201303

SAFTY PACKAGE

main83809-0D140supersedes 83809-0D350i201410-201504

SRS AIR BAG-WITHOUT

main83809-0D150i201303-201409

SAFETY PACKAGE(WITH ABS)

main83809-0D160i201303-201409

SAFETY PACKAGE(WITH ABS)

main83809-0D200supersedes 83809-0D370i201410-201504

SRS AIR BAG-WITHOUT

main83809-0D290supersedes 83809-0D370i201410-201504

INDONESIA SPEC&SRS AIR BAG-WITHOUT&SPEEDOMETER-ANALOGUE KM/H , WITH(TACHOMETER)

main83809-0D300supersedes 83809-0D311i201310-201501

WITH(POWER STEERING & POWER WINDOW)

main83809-0D340supersedes 83809-0D370i201410-201504

INDONESIA SPEC

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90167T0020

main90167-T0020

9356855018

main93568-55018

4 parts on this diagram · 1 diagram in section

METER for Toyota ETIOS/LIVA/CROSS

This section contains 4 genuine Toyota parts for the METER system of the Toyota ETIOS/LIVA/CROSS. Key components include: METER SUB-ASSY, COMBINATION, SWITCH & RELAY & COMPUTER.
