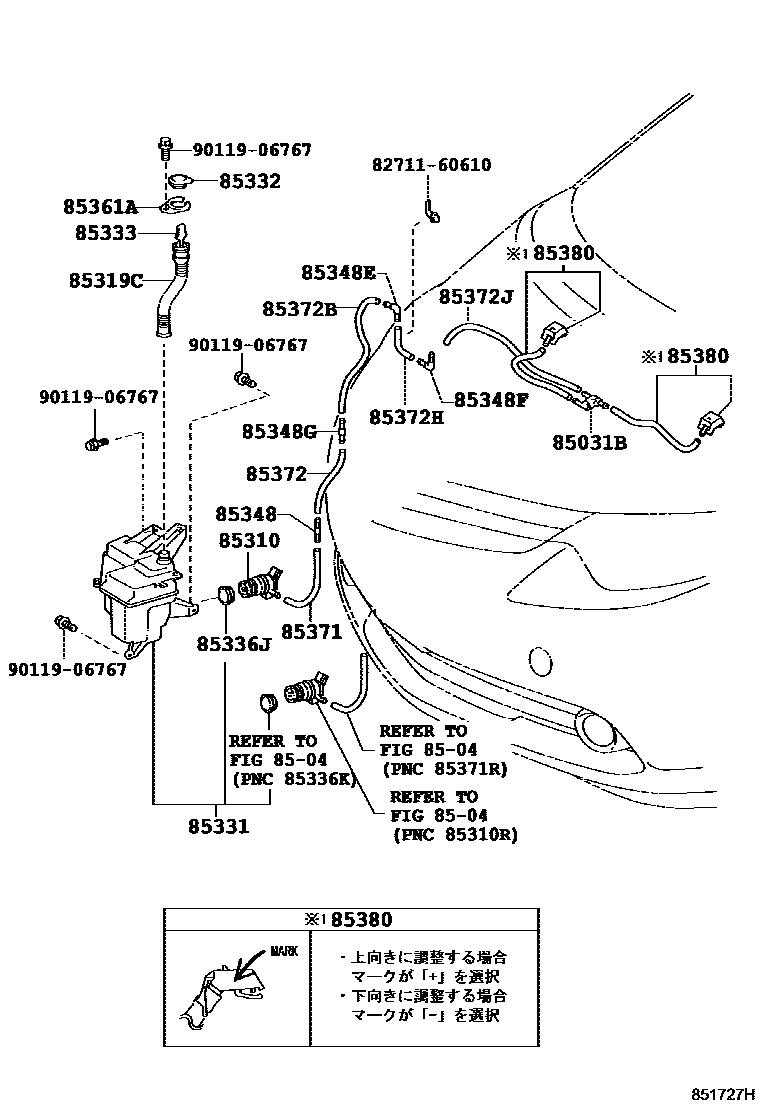

Toyota ESTIMA — WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-28020i200812-201204

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i200601-200812

85319CHOSE, WASHER

main85319-28230i200601-200812

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85315-28230i200601-200812

85332CAP, WINDSHIELD WASHER JAR

main85316-48060i200601-200812

85333FILTER, WINDSHIELD WASHER JAR

main85312-30080i200601-200812

85336JPROTECTOR, WASHER JAR

main85336-60300i200601-200812

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i200601-200812

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200i200601-200812

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85355-20200i200601-200812

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122i200812-201204

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-30380i200812-201204

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i200601-200812

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i200601-200812

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i200601-200812

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080i201605

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080i201605

85380NOZZLE & HOSE ASSY, FR WASHER

main85380-28100×2i200601-200609

main85380-28130×2i200601-200609

main85380-28140×2i200601-200609

main85380-28160×2i200609-200812

main85380-28170×2i200812-201204

main85380-28180×2i201605

8271160610WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60610

9011906767

main90119-06767

21 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota ESTIMA

This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota ESTIMA. Key components include: VALVE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, WASHER, JAR SUB-ASSY, WINDSHIELD WASHER.
