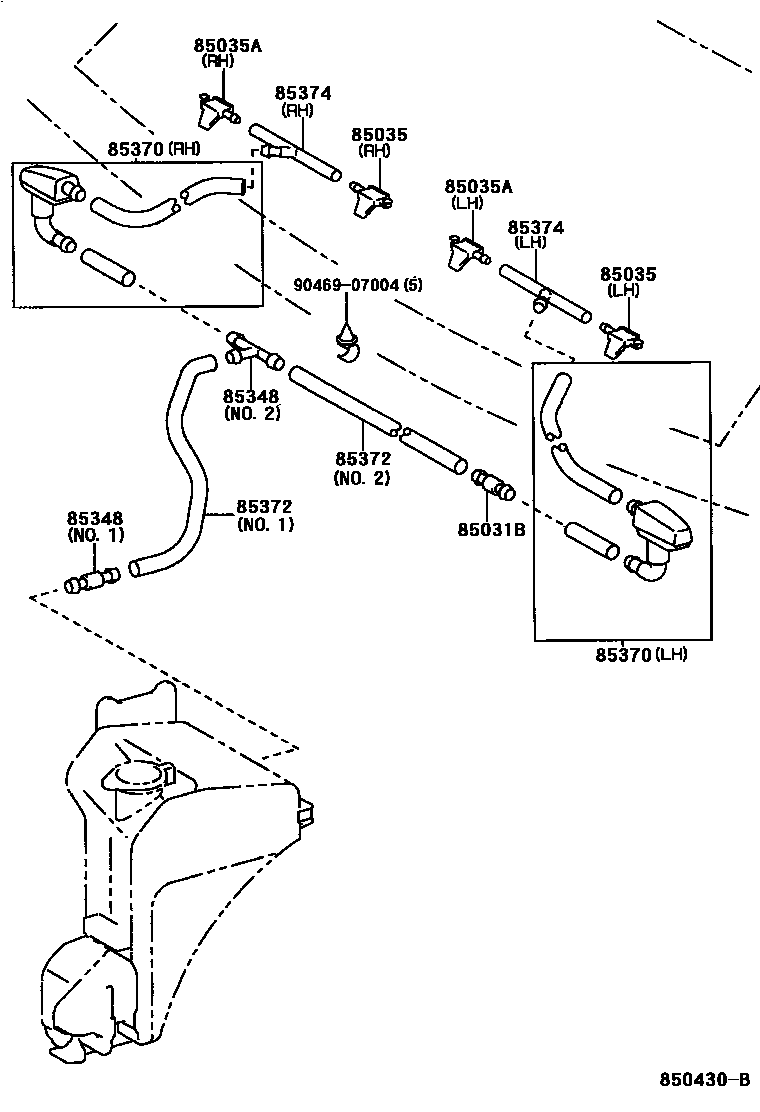

Toyota ESTIMA — WINDSHIELD WASHER

0001 1���� & �-� 0002 1���� & �-� 0003 1���- & �-� 0004 1���- & �-�

85031BVALVE SUB-ASSY, WASHER

main85031-12250×2iTCR1#,2#199005-199308

85035NOZZLE SUB-ASSY, WASHER

main85382-28010iTCR11,21199005-199208

main85382-28011iTCR1#,2#199208-199308

main85382-28020iTCR1#,2#199005-199308

main85382-28050×2iTCR1#,2#199308-199912

85035ANOZZLE, FR WASHER, RH

main85381-28010iTCR1#,2#199005-199308

main85381-28020iTCR11,21199005-199208

main85381-28021iTCR1#,2#199208-199308

main85381-28080iTCR1#,2#199308-199912

main85381-28090iTCR1#,2#199308-199912

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85334-22470iTCR1#,2#..EFI199005-199801

main85348-12250iTCR1#,2#199005-199912

main85349-89122iTCR1#,2#..SPC199308-199912

main85355-20200iTCR1#,2#199005-199308

main85375-95D00iTCR1#,2#..SPC199408-199912

85370HOSE ASSY, WINDSHIELD WASHER

main85370-28070iTCR1#,2#199005-199308

main85370-28290iTCR1#,2#199308-199912

main85370-28300iTCR1#,2#199308-199912

main85370-95D07iTCR1#,2#199005-199308

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iTCR1#,2#199308-199912

main90099-33299iTCR1#,2#199005-199308

main90099-33382iTCR1#,2#199005-199308

85374HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE)

main85374-28010iTCR1#,2#199005-199308

main85374-28020iTCR1#,2#199005-199308

main85374-28050×2iTCR1#,2#199308-199912

9046907004

main90469-07004

8 parts on this diagram · 4 diagrams in section
