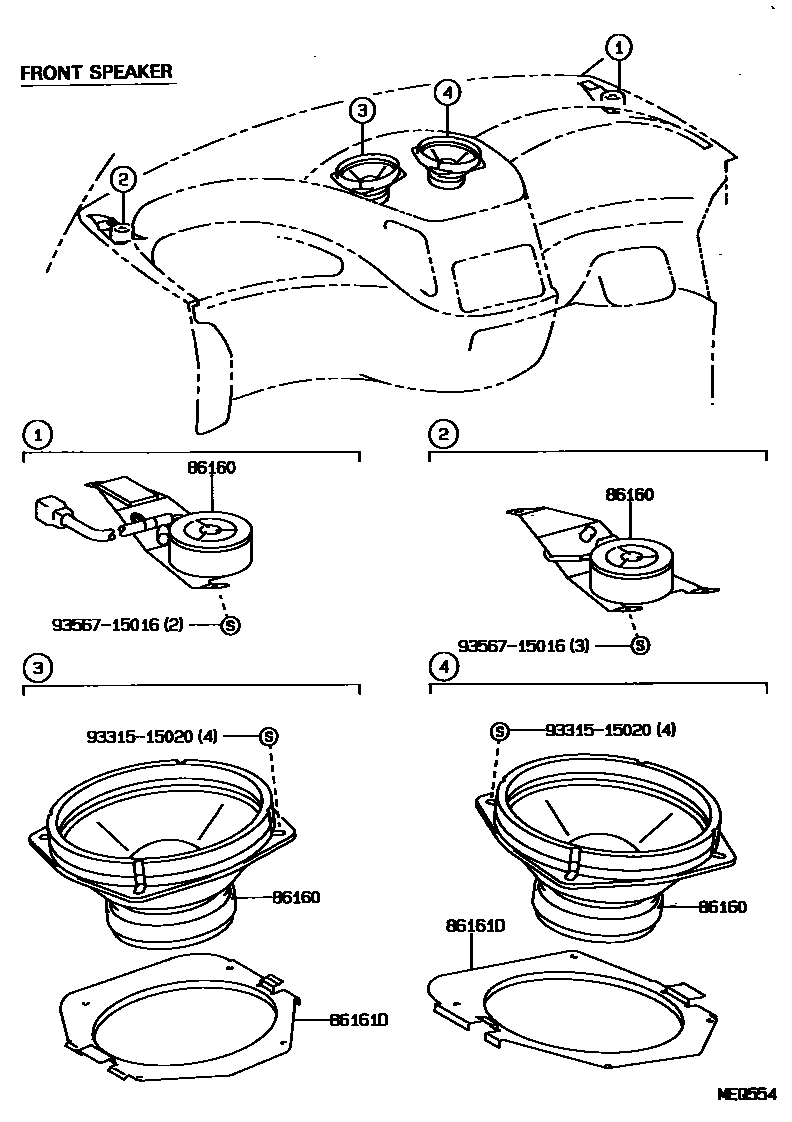

Toyota ESTIMA — SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-28140i199108-199308

FRONT DOOR,RH

main86160-28150i199108-199308

FRONT DOOR,LH

main86160-28290i199308-199912

TWEETER LH

main86160-28300i199108-199308

main86160-28440i199608-199912

FR DOOR,RH

main86160-28450i199608-199912

FR DOOR,LH

main86160-95D01×2i199005-199108

CENTER

main86160-95D08i199005-199108

main86160-95D09i199005-199108

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-95D00i199005-199108

main86161-95D01i199005-199108

9331515020

main93315-15020

9356715016

main93567-15016

4 parts on this diagram · 4 diagrams in section

SPEAKER for Toyota ESTIMA

This section contains 20 genuine Toyota parts for the SPEAKER system of the Toyota ESTIMA. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, BRACKET, SPEAKER MOUNTING, NO.1, GRILLE, SPEAKER.
