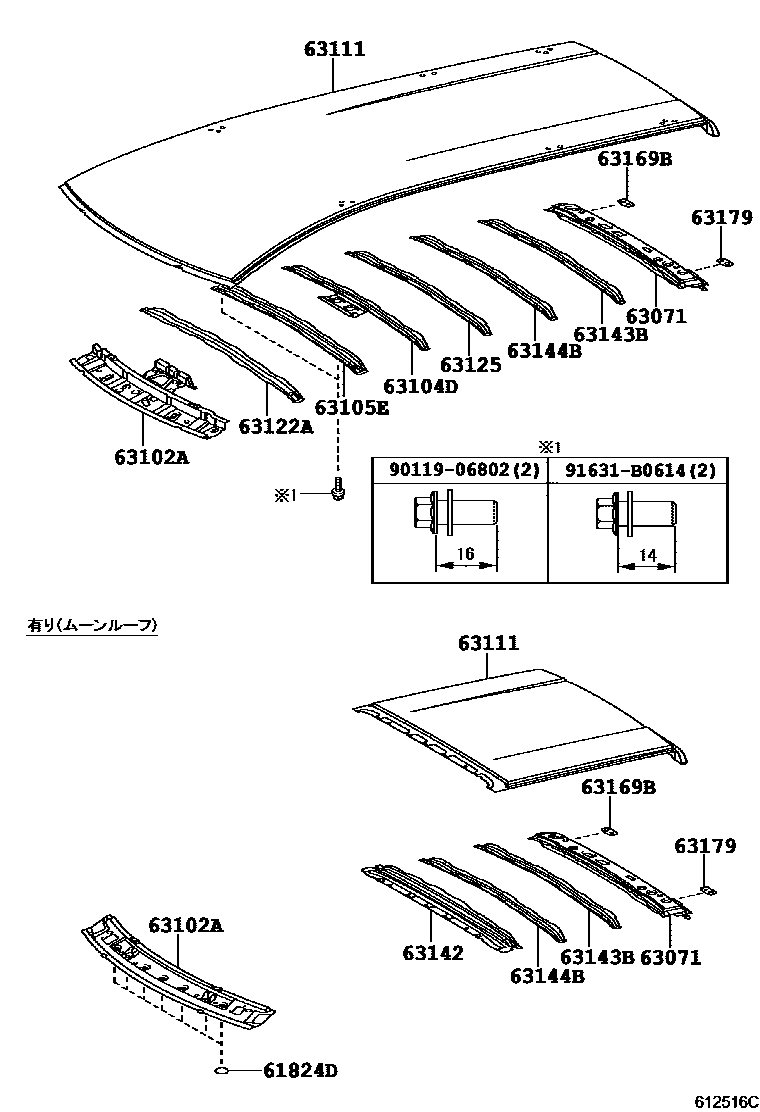

Toyota ESTIMA — ROOF PANEL & BACK PANEL

0001 1������� 0002 1������

61824DPLATE, NOISE CONTROL, NO.1

main61824-12050×7iACR5#,GSR5#..CBU200601-200812

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-28040iACR5#,GSR5#..CBU200601-200812

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-28030iACR5#..CBU201605

main63102-28040supersedes 63102-28030iACR5#,GSR5#..CBU200601-200812

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-28070iACR5#,GSR5#..CBU200812-201204

63105EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3

main63105-28080iACR5#,GSR5#..CBU200601-200812

63111PANEL, ROOF

main63111-28250iACR5#..CBU201605

main63111-28270supersedes 63111-28250iACR5#..(AEPR,AERAS)..CBU201605

63122AREINFORCEMENT, ROOF PANEL, FRONT

main63122-28090iACR5#,GSR5#..CBU201204-201605

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-28080iACR5#,GSR5#..CBU200812-201204

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-28090iACR5#,GSR5#..CBU200601-200812

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-28080iACR5#..CBU201605

main63143-28090supersedes 63143-28080iACR5#,GSR5#..CBU200601-200812

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-28070iACR5#..CBU201605

main63144-28080supersedes 63144-28070iACR5#,GSR5#..CBU200601-200812

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-35020iACR5#,GSR5#..CBU200601-200812

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-35020iACR5#,GSR5#..CBU200601-200812

9011906802

main90119-06802

91631B0614

main91631-B0614

15 parts on this diagram · 2 diagrams in section
