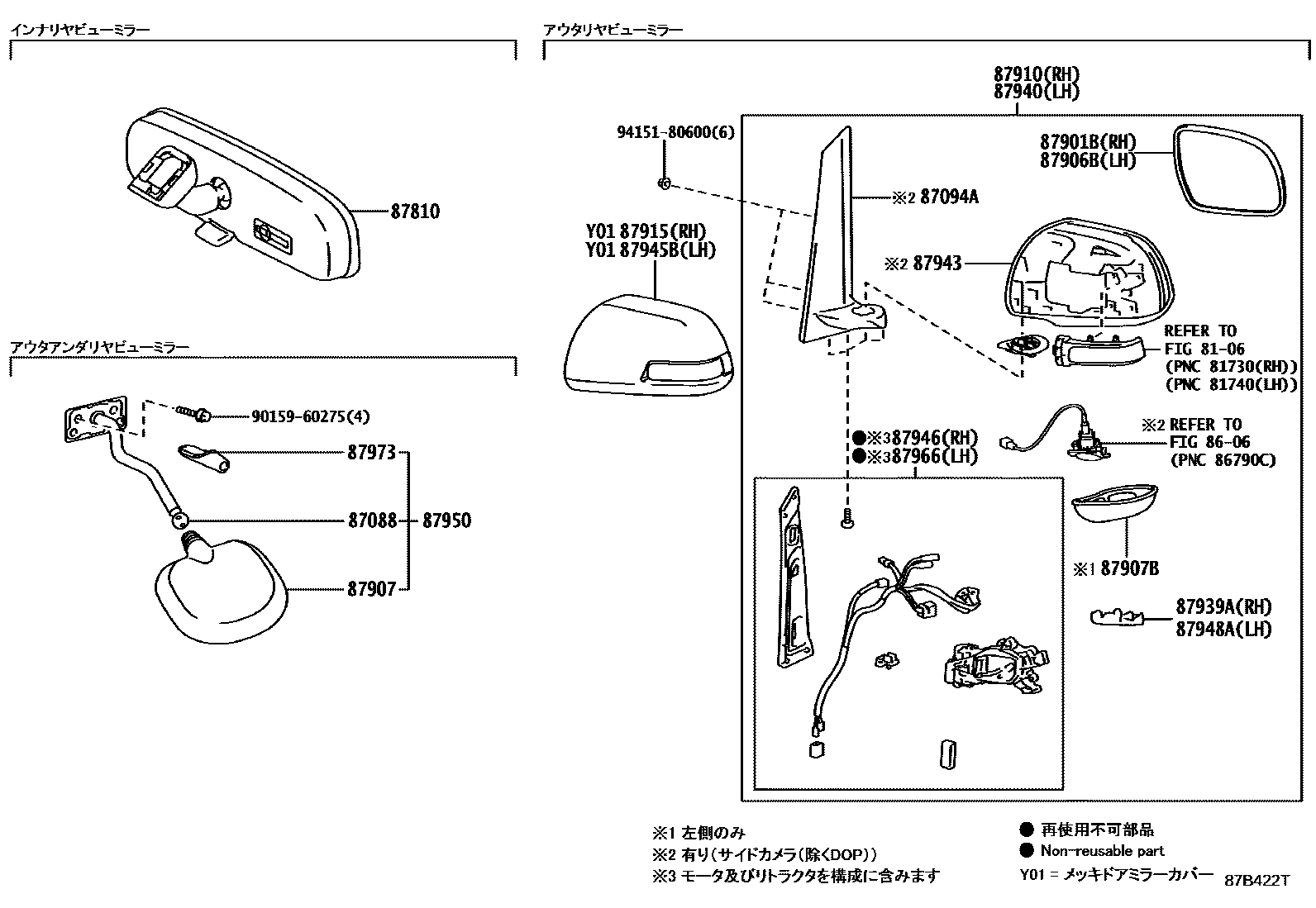

Toyota ESTIMA — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
87088ARM SUB-ASSY, OUTER UNDER REAR VIEW MIRROR
87094ASTAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH
87810MIRROR ASSY, INNER REAR VIEW
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87931-28A30iACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU; GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU200601-200706
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87907MIRROR SUB-ASSY, OUTER UNDER VIEW
87907BDEVICE SUB-ASSY,FRONT FENDER SIDE VIEW,LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
MEDIUM SILVER ME.,1F8
GRAY ME.,1G3
ICE TITANIUM M.M.,1H4
BLACK,202
SPARKLING BLACK PEARL CS.,220
DK. RED M.M.,3Q3
RED M.M.,3R3
DEEP RED M.M.,3R9
DARK SHERRY M.M.,4W4
SILKY GOLD M.M.,5A4
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
GRAYISH BLUE M.M.,8V5
LT.PURPLE M.M.,9AE
87939ACOVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-28A51iACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU; GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU200601-200706
87943BODY, OUTER MIRROR, LH
87945BCOVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
MEDIUM SILVER ME.,1F8
GRAY ME.,1G3
ICE TITANIUM M.M.,1H4
BLACK,202
SPARKLING BLACK PEARL CS.,220
DK. RED M.M.,3Q3
RED M.M.,3R3
DEEP RED M.M.,3R9
DARK SHERRY M.M.,4W4
SILKY GOLD M.M.,5A4
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
GRAYISH BLUE M.M.,8V5
LT.PURPLE M.M.,9AE
87946RETRACTOR, OUTER MIRROR, RH
main87946-28A30iACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU; GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU200601-200706
87948COVER, OUTER MIRROR HOLE, LH
87948ACOVER, OUTER MIRROR HOLE, LH
87950MIRROR ASSY, OUTER UNDER REAR VIEW
87966RETRACTOR, OUTER MIRROR, LH
main87966-28A50iACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU; GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU200601-200706
87973COVER, OUTER UNDER RR VIEW MIRROR
9015960275
main90159-60275
9415180600
main94151-80600
23 parts on this diagram · 3 diagrams in section
MIRROR for Toyota ESTIMA
This section contains 27 genuine Toyota parts for the MIRROR system of the Toyota ESTIMA. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, ARM SUB-ASSY, OUTER UNDER REAR VIEW MIRROR, STAY SUB-ASSY, OUTER REAR VIEW MIRROR, RH, STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH.
