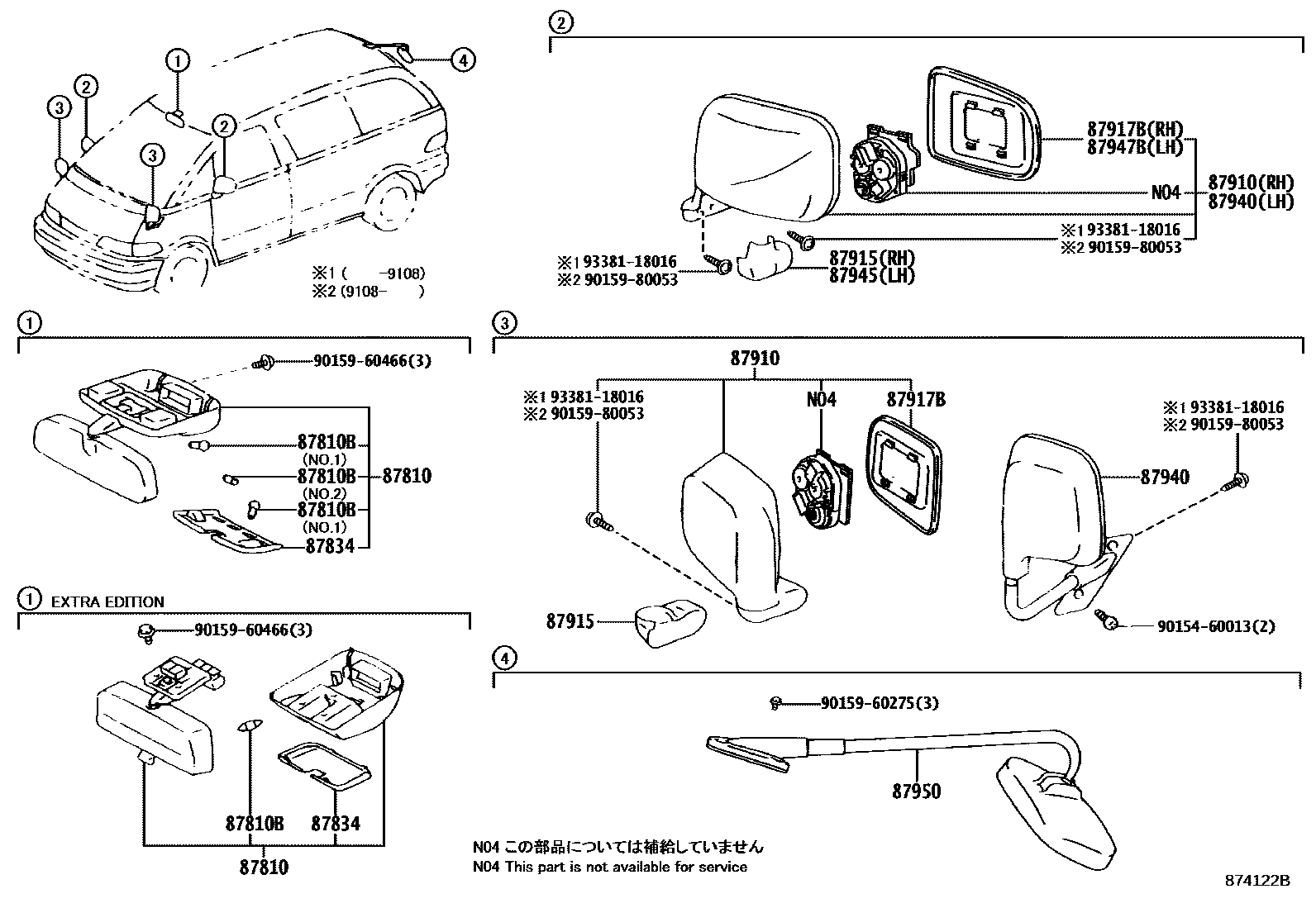

Toyota ESTIMA — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
LT.GRAY,TRIM1#
LIGHT GRAY,TRIM1#
LIGHT GRAIGE,TRIM4#
LT.GRAY,TRIM1#
87810BBULB, INNER REAR VIEW MIRROR LAMP
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
87915COVER, OUTER MIRROR, RH
BLACK,042 ,191; BLACK,042 ,191 ,199 ,1C0 ,205 ,3J7 ,760
BLACK,046 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H4
87917BMIRROR, OUTER REAR VIEW, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87945COVER, OUTER MIRROR, LH
BLACK,042 ,191; BLACK,042 ,191 ,199 ,1C0 ,205 ,3J7 ,760
BLACK,046 ,3J7 ,4K9 ,4L6 ,6L3 ,8G2 ,8H4
87947BMIRROR, OUTER REAR VIEW, LH
87950MIRROR ASSY, OUTER UNDER REAR VIEW
9015460013
main90154-60013
9015960275
main90159-60275
9015960466
main90159-60466
9015980053
main90159-80053
9338118016
main93381-18016
15 parts on this diagram · 1 diagram in section
MIRROR for Toyota ESTIMA
This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota ESTIMA. Key components include: MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, COVER, OUTER MIRROR, RH.
