Toyota ESTIMA — METER

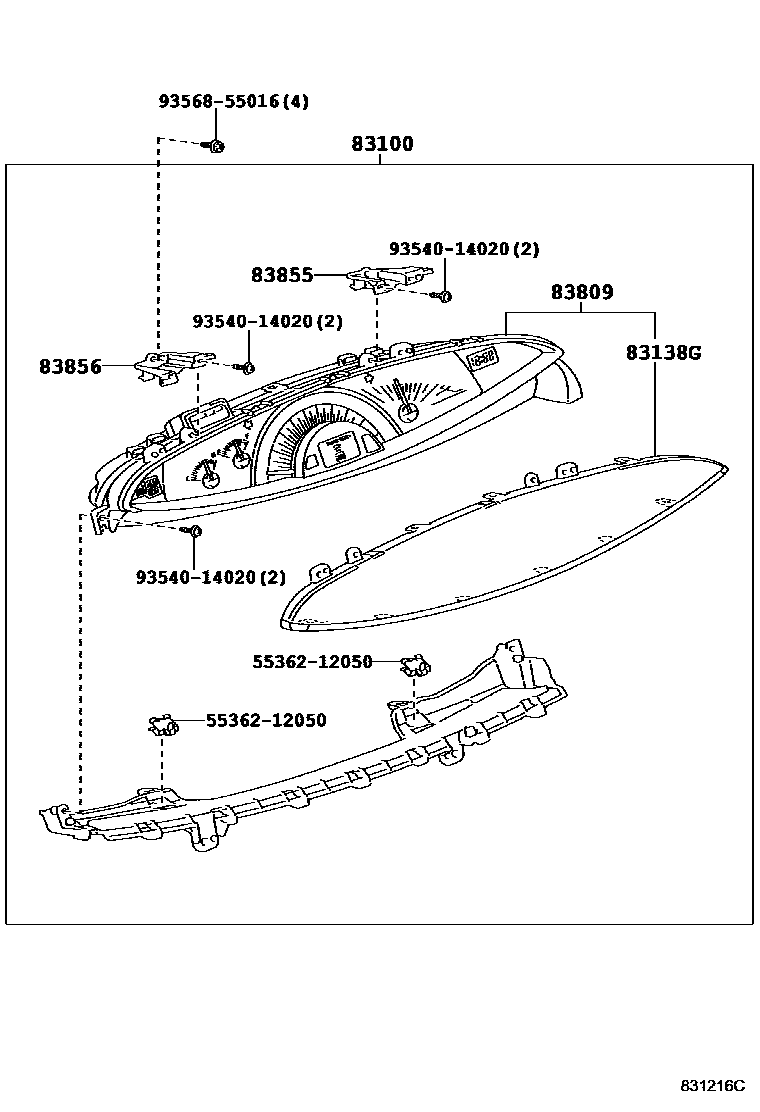

Parts diagram

83100METER ASSY, COMBINATION

main83800-28B80-E0i200601-200706

main83800-28B90-B0i200601-200706

main83800-28C20-E0supersedes 83800-28F41-E0i200601-200604

main83800-28C21-E0i200605-200706

main83800-28D40-E0i200601-200706

main83800-28D80-B0i200601-200706

main83800-28D80-E0i200608-200706

main83800-28F10-E0i200706-200812

main83800-28F11-E0i200812-200905

main83800-28F20-B0i200706-200812

main83800-28F30-B0i200706-200812

main83800-28F30-E0i200706-200812

main83800-28F31-C0supersedes 83800-28F21-C0i200812-200908

main83800-28F31-E0supersedes 83800-28F21-E0i200812-200908

main83800-28F40-E0i200706-200812

main83800-28F41-C0i200812-200908

main83800-28F50-E0i200706-200812

main83800-28F51-E0i200812-200908

main83800-28F60-E0i200706-200812

main83800-28F61-E0i200812-200908

main83800-28J50i200906-201005

main83800-28J51i201204-201303

main83800-28J52i201304-201605

main83800-28J70i200909-201005

main83800-28J71supersedes 83800-28J61i201006-201204

main83800-28J80i200909-201005

main83800-28J81i201006-201204

main83800-28J90i200909-201005

main83800-28J91i201006-201204

main83800-28K00i200909-201005

main83800-28K01i201006-201204

main83800-28L20i201204-201304

main83800-28L21i201304-201605

main83800-28L30i201204-201304

main83800-28L31i201304-201605

main83800-28M90i201605

main83800-28D60-B0i200601-200706

main83800-28D70-B0supersedes 83800-28C10-B0i200601-200706

main83800-28F51-C0i200812-200908

main83800-28F61-C0i200907-200908

main83800-28F70-B0i200706-200812

main83800-28F80-B0supersedes 83800-28F40-B0i200706-200812

83138GGLASS, COMBINATION METER

main83852-28B80i200812-200906

main83852-28B90i200601-200812

main83852-28F11i201204-201605

main83852-28F21i201204-201605

main83852-28M90i201605

83809METER SUB-ASSY, COMBINATION

main83809-28010i200601-200706

main83809-28020i200601-200706

main83809-28030i200601-200706

main83809-28050supersedes 83809-28242i200601-200604

main83809-28051i200605-200706

main83809-28060i200601-200706

main83809-28210i200706-200812

main83809-28211i200812-201005

main83809-28212i201006-201204

main83809-28213i201304-201605

main83809-28220i200706-200812

main83809-28230i200706-200812

main83809-28231i200812-201005

main83809-28232supersedes 83809-28222i201006-201204

main83809-28250i200706-200812

main83809-28251i200812-201005

main83809-28252i201006-201204

main83809-28260i200706-200812

main83809-28261i200812-201005

main83809-28262i201006-201204

main83809-28430i201204-201304

main83809-28431i201304-201605

main83809-28440i201204-201304

main83809-28441i201304-201605

main83809-28540i201605

main83809-28070i200601-200706

main83809-28080supersedes 83809-28040i200601-200706

main83809-28270i200706-200812

main83809-28280supersedes 83809-28240i200706-200812

83855BRACKET, COMBINATION METER, NO.1

main83855-28B80i200601-200812

83856BRACKET, COMBINATION METER, NO.2

main83856-28B80i200601-200812

5536212050BRACKET, INSTRUMENT PANEL LOWER REGISTER MOUNTING

main55362-12050

9354014020

main93540-14020

9356855016

main93568-55016

8 parts on this diagram · 1 diagram in section

METER for Toyota ESTIMA

This section contains 8 genuine Toyota parts for the METER system of the Toyota ESTIMA. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER, METER SUB-ASSY, COMBINATION, BRACKET, COMBINATION METER, NO.1, BRACKET, COMBINATION METER, NO.2.
