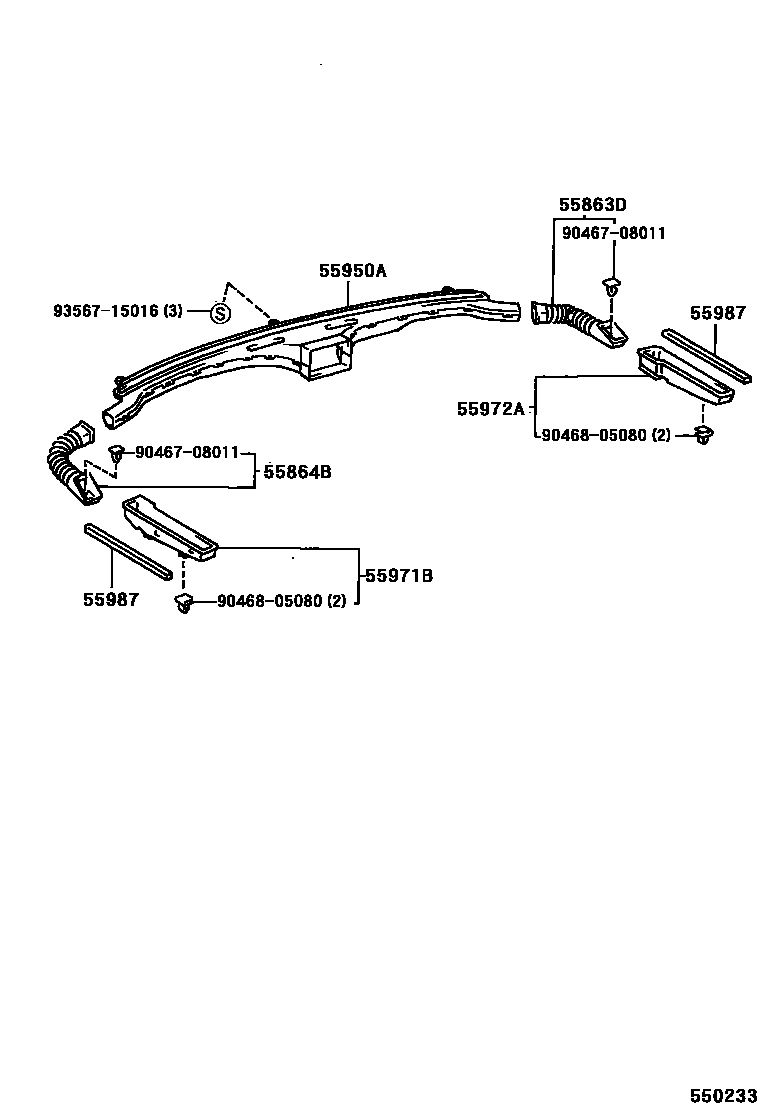

Toyota ESTIMA — FRONT VENTILATOR

55863DBOOT, SIDE VENTILATOR DUCT

main55863-95D00iTCR1#,2#199005-199912

55864BBOOT, SIDE VENTILATOR DUCT, NO.2

main55864-95D00iTCR1#,2#199005-199912

55950ANOZZLE ASSY, DEFROSTER

main55950-95D01iTCR1#,2#199005-199912

55971BDUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-95D00iTCR1#,2#199005-199912

55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-95D00iTCR1#,2#199005-199912

55987SEAL, DEFROSTER NOZZLE, NO.4

main55987-95D00×2iTCR1#,2#199005-199912

9046708011

main90467-08011

9046805080

main90468-05080

9356715016

main93567-15016

9 parts on this diagram · 1 diagram in section
