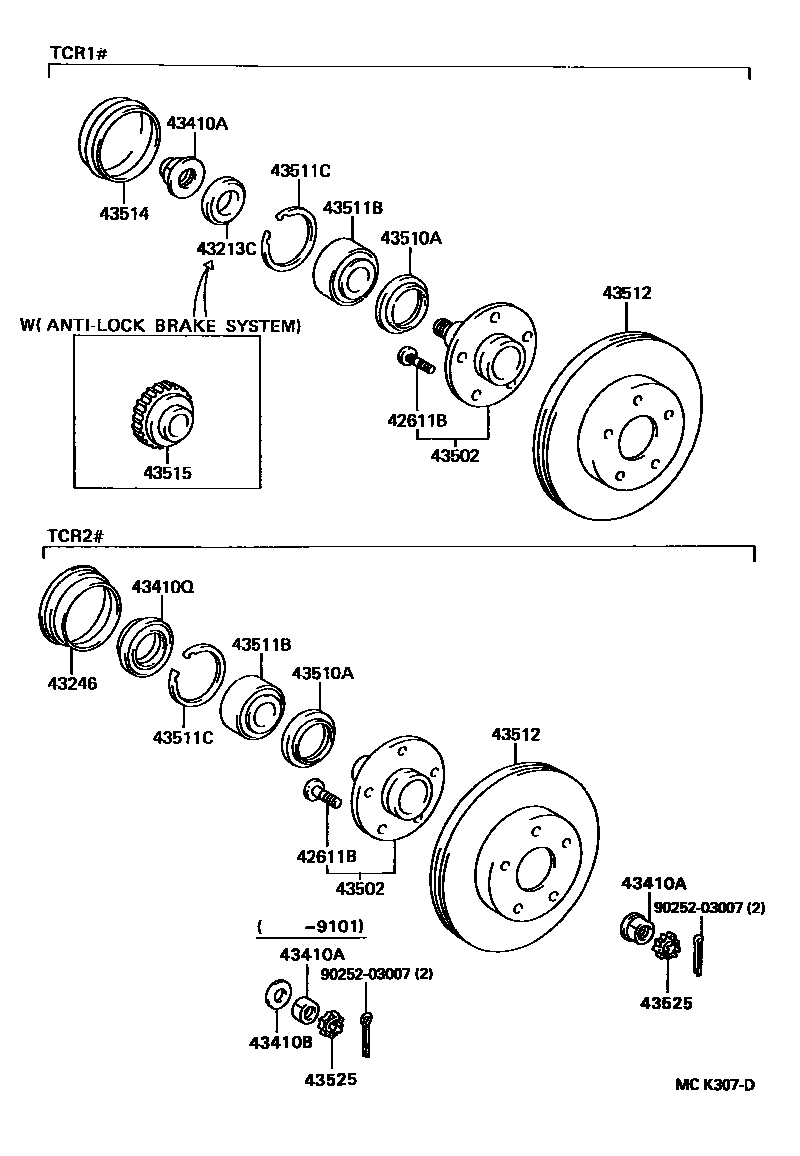

Toyota ESTIMA — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02049×10i199005-199912

43213CSPACER (FOR DRIVE SHAFT)

main90560-43001×2i199302-199608

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-28010×2i199005-199912

43410ANUT (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90170-19002×2i199005-199101

main90178-22001×2i199801-199912

main90179-22020×2i199101-199801

main90179-24010×2i199005-199912

43410BWASHER (FOR AXLE HUB & DRIVE SHAFT SETTING)

main90201-20012×2i199005-199101

43410QSEAL, OIL (FOR FRONT DRIVE SHAFT)

main90311-56014×2i199005-199912

43502HUB SUB-ASSY, FRONT AXLE

main43502-28040×2i199005-199912

main43502-28050×2i199005-199912

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-61001×2i199005-199912

43511BBEARING (FOR FRONT AXLE HUB)

main90369-43007×2i199005-199912

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-82002×2i199005-199912

43512DISC, FRONT

main43512-28070×2i199608-199912

MARK=20MM

main43512-28090×2i199302-199608

43514CAP, FRONT HUB GREASE

main43514-28010×2i199005-199912

43515ROTOR, SKID CONTROL, FRONT

main43515-28010×2i199005-199308

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010×2i199005-199101

main43525-20030×2i199101-199912

9025203007

main90252-03007

15 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota ESTIMA

This section contains 15 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota ESTIMA. Key components include: BOLT, HUB (FOR FRONT AXLE), SPACER (FOR DRIVE SHAFT), DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1, NUT (FOR AXLE HUB & DRIVE SHAFT SETTING), WASHER (FOR AXLE HUB & DRIVE SHAFT SETTING).
