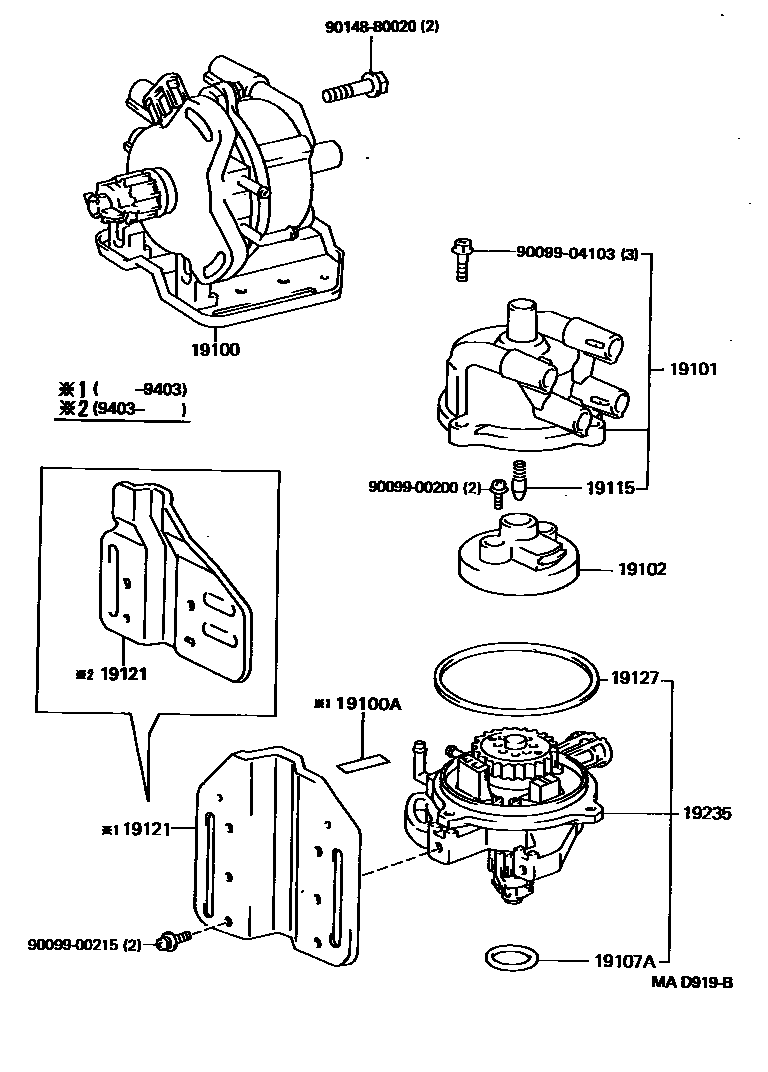

Toyota ESTIMA — DISTRIBUTOR

0001 1 0002 1

19100DISTRIBUTOR ASSY

main19100-76010i2TZFE..TCR1#,2#199005-199401

main19100-76020i2TZFZE..TCR1#,2#199408-199912

main19100-76030i2TZFE..TCR1#,2#199401-199608

main19100-76040i2TZFE..TCR10,20199608-199801

19100ATAPE, SEALING

main90919-24004i2TZFE..TCR1#,2#199005-199403

sub90919-24003

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-76010i2TZ#..TCR1#,2#199005-199912

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-74040i2TZ#..TCR1#,2#199005-199912

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14091i2TZ#..TCR1#,2#199005-199912

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-88280i2TZ#..TCR1#,2#199005-199912

19121COVER, DUST PROOF

main19121-76010i2TZFE..TCR1#,2#199005-199401

main19121-76020i2TZ#..TCR1#,2#199403-199912

19127PACKING, DUST PROOF

main19127-76010i2TZ#..TCR1#,2#199005-199912

19235HOUSING, DISTRIBUTOR

main19235-76010i2TZFE..TCR1#,2#199005-199608

main19235-76020i2TZFZE..TCR1#,2#199408-199912

main19235-76040i2TZFE..TCR10,20199608-199801

9009900200

main90099-00200

9009900215

main90099-00215

9009904103

main90099-04103

9014880020

main90148-80020

13 parts on this diagram · 2 diagrams in section
