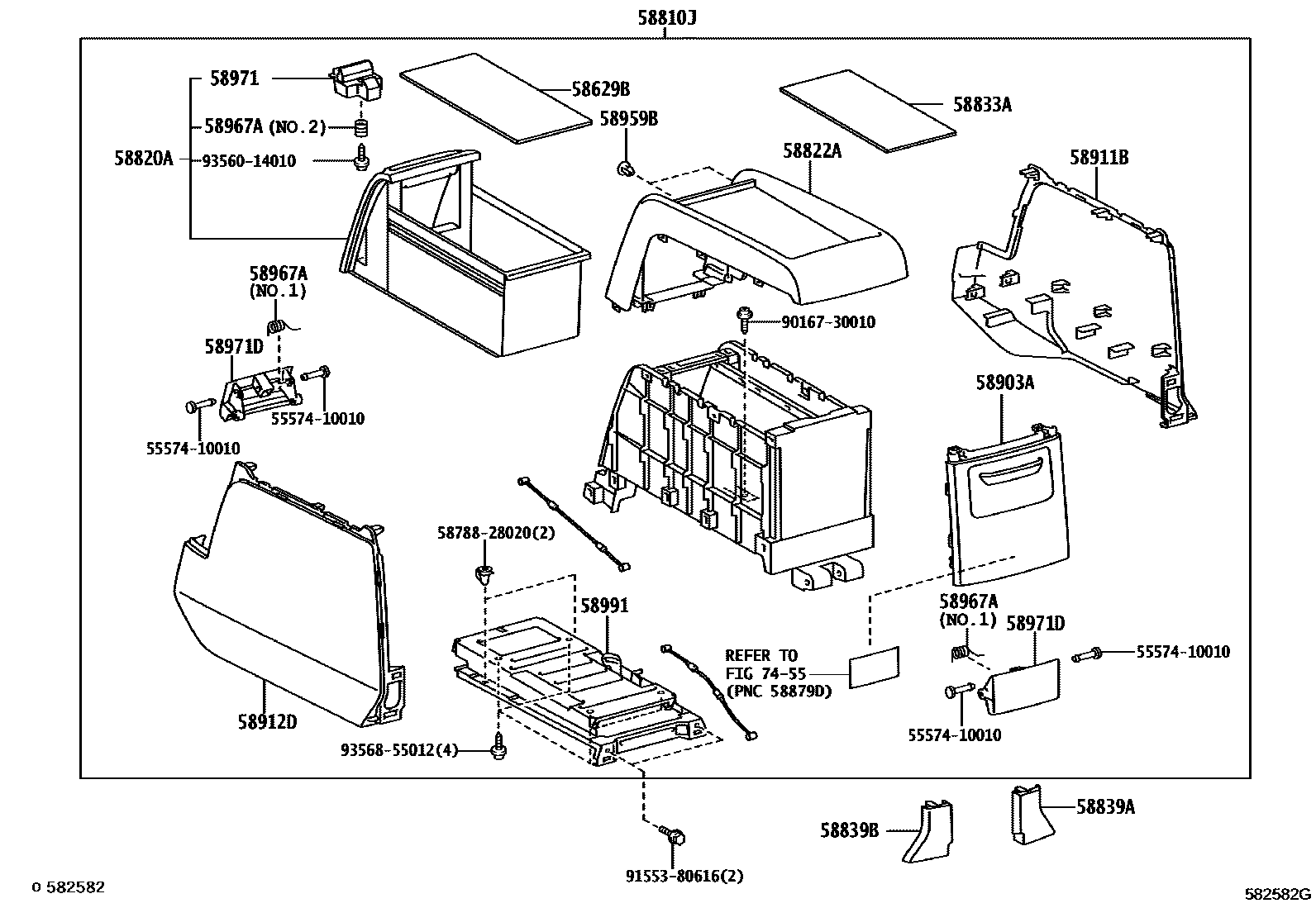

Toyota ESTIMA — CONSOLE BOX & BRACKET

58629BMAT, CENTER CONSOLE

main58629-28010supersedes 58629-28010iACR5#..07S..(AEPR,AERAS)..CBU201605-201910

main58629-28010-B0iACR5#,GSR5#..07S..AERAS..CBU200601-200604

main58629-28010-E0iACR5#,GSR5#..07S..G..CBU200601-200604

58810JBOX ASSY, CONSOLE

main58810-28460-A0iACR5#,GSR5#..G201204-201602

SHELL,TRIM0#

main58810-28460-A2iACR5#..07S..AERAS..CBU201204-201409

main58810-28510-A0iACR5#..07S..AERAS..CBU201409-201602

main58810-28510-C0iACR5#..07S..AERAS..CBU201409-201602

main58810-28570-A0iACR5#,GSR5#..G201603-201605

SHELL,TRIM0#

main58810-28580-A0iACR5#..07S..AERAS..CBU201603-201605

main58810-28580-C0supersedes 58810-28580-C0iACR5#..07S..AERAS..CBU201603-201605

main58810-28360-E0iACR5#,GSR5#..07S..G..CBU200601-200812

main58810-28410-B0iACR5#,GSR5#..07S..AERAS..CBU200601-200812

main58810-28440-B0iACR5#..07S..AERAS..CBU201010-201204

main58810-28460-C1supersedes 58810-28460-C0iACR5#..07S..AERAS..CBU201204-201409

main58810-28570-C0iACR5#,GSR5#..07S..AERAS..CBU201603-201605

58820ABOX ASSY, CONSOLE COMPARTMENT

main58820-28030-A0iACR5#..07S..AERAS..CBU201204-201605

main58820-28030-C0supersedes 58820-28030-C0iACR5#..07S..AERAS..CBU201204-201409

main58820-28030-B0iACR5#,GSR5#..07S..AERAS..CBU200601-200812

main58820-28030-B1iACR5#..07S..AERAS..CBU201010-201204

58822APANEL, CONSOLE, UPPER REAR

main58822-28020-A0iACR5#..07S..AERAS..CBU201204-201605

SHELL,TRIM0#

main58822-28020-C0supersedes 58822-28020-C0iACR5#..07S..AERAS..CBU201204-201409

main58822-28020-B0iACR5#,GSR5#..07S..AERAS..CBU200601-200812

main58822-28020-B1iACR5#..07S..AERAS..CBU201010-201204

58833ACOVER, CONSOLE, UPPER

main58833-28090-A0iACR5#..07S..AERAS..CBU201204-201409

main58833-28090-E0iACR5#..07S..AERAS..CBU201204-201409

BROWN,TRIM20

main58833-28090-J0iACR5#..07S..AERAS..CBU201204-201409

main58833-28100-C0supersedes 58833-28100-C0iACR5#..07S..AERAS..CBU201409-201605

main58833-28040iACR5#,GSR5#..07S..G..CBU200601-200812

main58833-28080iACR5#..07S..AERAS..CBU201010-201204

main58835-28030-B0iACR5#,GSR5#..07S..AERAS..CBU200601-200812

58839ACOVER, CONSOLE BOX HOLE

main58839-28050-A0iACR5#..07S..AERAS..CBU201204-201605

SHELL,TRIM0#

main58839-28050-C0supersedes 58839-28050-C0iACR5#..AEPG201605-201910

main58839-28050-B0iACR5#,GSR5#..07S..AERAS..CBU200601-200812

main58839-28050-B1iACR5#..07S..AERAS..CBU201010-201204

58839BCOVER, CONSOLE BOX HOLE, NO.2

main58839-28060-A0iACR5#..07S..AERAS..CBU201204-201605

main58839-28060-C0supersedes 58839-28060-C0iACR5#..07S..AERAS..CBU201204-201409

main58839-28060-B0iACR5#,GSR5#..07S..AERAS..CBU200601-200812

main58839-28060-B1iACR5#..07S..AERAS..CBU201010-201204

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-28030-A0iACR5#..07S..AERAS..CBU201204-201605

main58903-28030-C0supersedes 58903-28030-C0iACR5#..07S..AERAS..CBU201204-201409

main58903-28030-B0iACR5#,GSR5#..07S..AERAS..CBU200601-200812

main58903-28030-B1iACR5#..07S..AERAS..CBU201010-201204

58911BPANEL, BOX, NO.1

main58911-28120-A0iACR5#..07S..AERAS..CBU201204-201605

main58911-28120-C0supersedes 58911-28120-C0iACR5#..AEPG201605-201910

main58911-28120-B0iACR5#,GSR5#..07S..AERAS..CBU200601-200812

main58911-28120-B1iACR5#..07S..AERAS..CBU201010-201204

58912DPANEL, BOX, NO.2

main58912-28010-A0iACR5#..07S..AERAS..CBU201204-201605

SHELL,TRIM0#

main58912-28010-C0supersedes 58912-28010-C0iACR5#..AEPG201605-201910

main58912-28010-B0iACR5#,GSR5#..07S..AERAS..CBU200601-200812

main58912-28010-B1iACR5#..07S..AERAS..CBU201010-201204

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2supersedes 58959-60060iACR5#..07S..(AEPR,AERAS)..CBU201605-201910

58967ASPRING, CONSOLE DOOR STOPPER

main58967-28020×2supersedes 58967-28030iACR5#..07S..(AEPR,AERAS)..CBU201605-201910

main58967-28030supersedes 58967-28030iACR5#..07S..CBU201605-201910

58971LOCK, CONSOLE COMPARTMENT DOOR

main58992-28040-A0iACR5#..07S..AERAS..CBU201204-201605

SHELL,TRIM0#

main58992-28040-C0supersedes 58992-28040-C0iACR5#..07S..AERAS..CBU201204-201605

main58992-28040-B0iACR5#,GSR5#..07S..AERAS..CBU200601-200812

main58992-28040-B1iACR5#..07S..AERAS..CBU201010-201204

58971DLEVER, CONSOLE COMPARTMENT DOOR LOCK

main58971-28010-A0×2iACR5#..07S..AERAS..CBU201204-201605

main58971-28010-C0×2supersedes 58971-28010-C0iACR5#..07S..AERAS..CBU201204-201409

main58971-28010-B0×2iACR5#,GSR5#..07S..AERAS..CBU200601-200812

main58971-28010-B1×2iACR5#..07S..AERAS..CBU201010-201204

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-28030supersedes 58991-28030iACR5#..07S..CBU201605-201910

7455

5557410010SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010

5878828020BRACKET, JACK HANDLE SUPPORT

main58788-28020

9016730010

main90167-30010

9155380616

main91553-80616

9356014010

main93560-14010

9356855012

main93568-55012

22 parts on this diagram · 1 diagram in section
