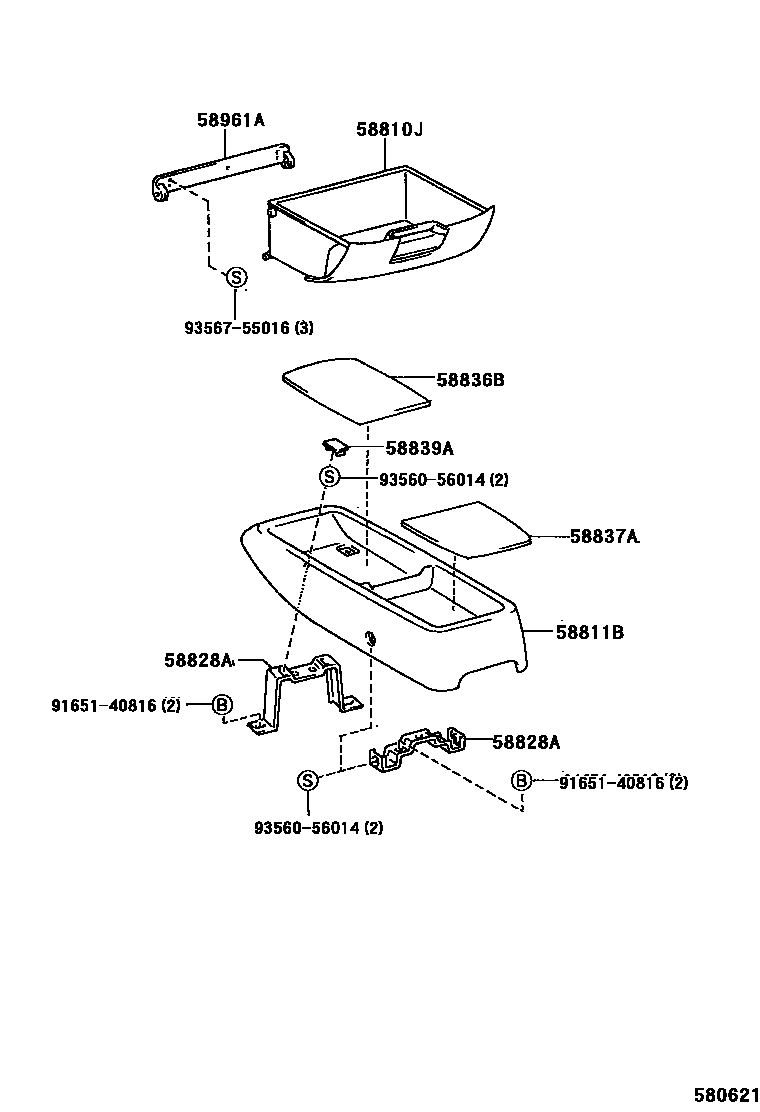

Toyota ESTIMA — CONSOLE BOX & BRACKET

0001 1���-�����-�� 0003 1

58810JBOX ASSY, CONSOLE

main58810-95D34-03iTCR1#,2#199005-199308

GRAY,TRIM1#

main58810-95D34-05iTCR11,21199005-199308

GREIGE,TRIM4#

main58810-95D34-44iTCR11,21199308-199408

GREIGE,TRIM4#

main58810-95D34-B0iTCR1#,2#199308-199912

GRAY,TRIM1#

58811BBOX, CONSOLE

main58801-28010-C0iTCR10,20..V199810-199912

main58811-28080-B0iTCR1#,2#199108-199408

GRAY,TRIM1#

main58811-28080-E1iTCR11,21199108-199408

GREIGE,TRIM4#

58828ABRACKET, CONSOLE BOX, LOWER

main58828-28030iTCR1#,2#199108-199408

FRONT

main58828-28040iTCR1#,2#199108-199408

REAR

main58828-28050iTCR1#,2#199408-199912

58836BPAD, CONSOLE BOX SILENCER, NO.1

main58836-28030-B0iTCR1#,2#199308-199408

GRAY,TRIM1#

main58836-28030-E0iTCR11,21199308-199408

GREIGE,TRIM4#

58837APAD, CONSOLE BOX SILENCER, NO.2

main58837-28010-B0iTCR1#,2#199308-199408

GRAY,TRIM1#

main58837-28010-E0iTCR11,21199308-199408

GREIGE,TRIM4#

58839ACOVER, CONSOLE BOX HOLE

main58839-28010-B0×2iTCR1#,2#199108-199408

GRAY,TRIM1#

main58839-28010-E1×2iTCR11,21199108-199408

GREIGE,TRIM4#

main58839-28020-C0iTCR1#,2#199408-199912

BLACK,TRIM1#

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58961-95D00iTCR1#,2#199005-199912

9165140816

main91651-40816

9356056014

main93560-56014

9356755016

main93567-55016

10 parts on this diagram · 2 diagrams in section
