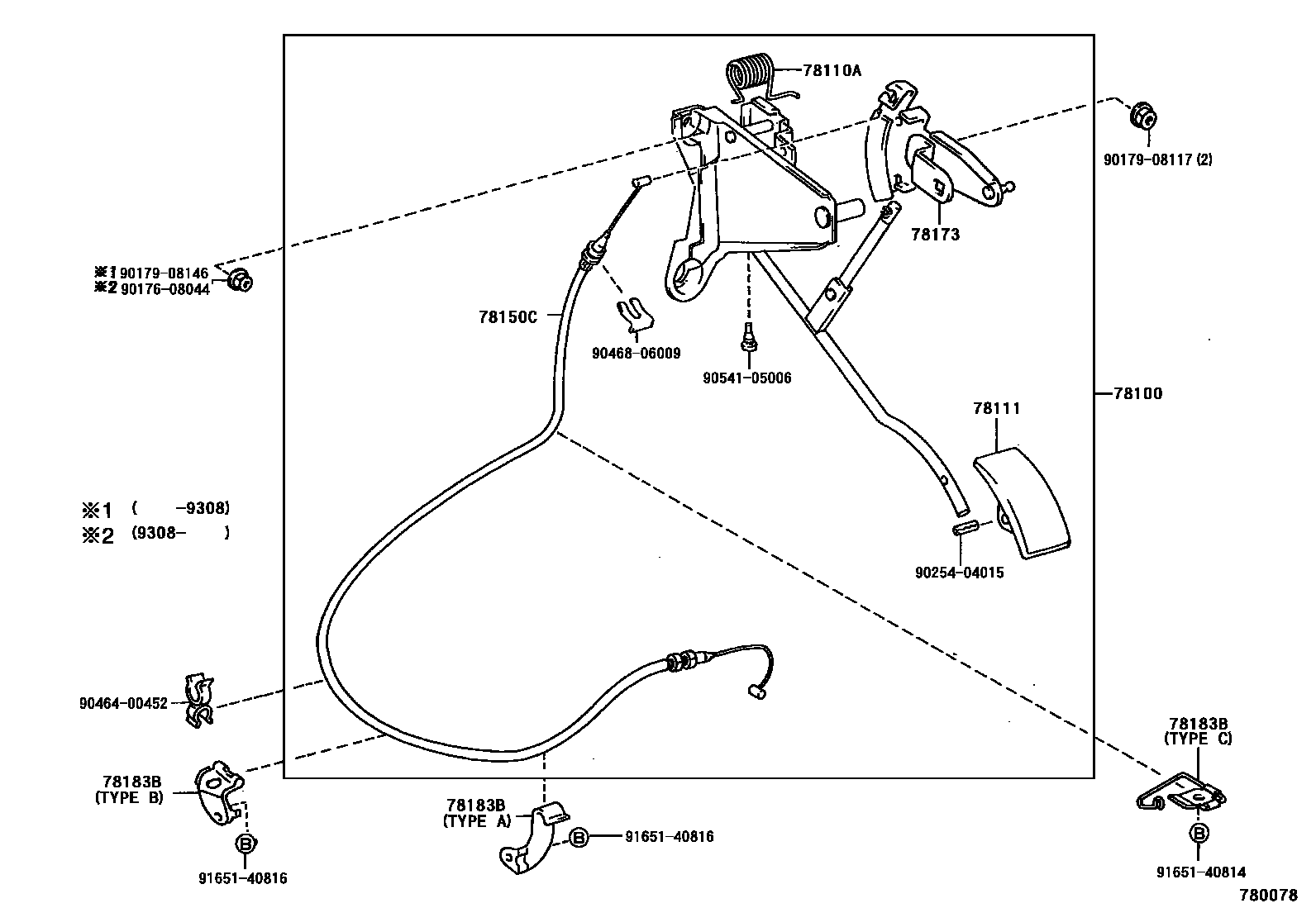

Toyota ESTIMA — ACCELERATOR LINK

0001 1 0002 1

78100LINK ASSY, ACCELERATOR

main78100-28080iTCR1#,2#..EFI199005-199801

main78100-28280iTCR1#,2#..SPC199408-199912

sub78202-28020

sub90176-08044

sub90468-06009

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-23117iTCR1#,2#..EFI199005-199801

78111PEDAL, ACCELERATOR

main78111-28010iTCR1#,2#..SPC199408-199912

main78111-95D00iTCR1#,2#..EFI199005-199801

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-95D03iTCR1#,2#..EFI199005-199801

main78180-28220iTCR1#,2#..SPC199408-199912

78173ARM, ACCELERATOR LINK, NO.1

main78173-95D01iTCR1#,2#..EFI199308-199801

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-28010iTCR1#,2#..EFI199005-199801

main78183-28030iTCR1#,2#..EFI199005-199801

main78183-28120iTCR1#,2#..SPC199408-199912

main78183-28160iTCR1#,2#..SPC199408-199912

main78183-28170iTCR1#,2#..SPC199408-199912

main78183-28180iTCR1#,2#..SPC199408-199912

main78183-28190iTCR11,21199408-199608

main78183-28200iTCR1#,2#..SPC199408-199912

main78183-28210iTCR1#,2#..SPC199608-199912

main78183-95701iTCR1#,2#..SPC199408-199912

TYPE G

main78183-95D01iTCR1#,2#..EFI199005-199801

9017608044

main90176-08044

9017908117

main90179-08117

9017908146

main90179-08146

9025404015

main90254-04015

9046400452

main90464-00452

9046806009

main90468-06009

9054105006

main90541-05006

9165140814

main91651-40814

9165140816

main91651-40816

15 parts on this diagram · 2 diagrams in section
