Toyota ESTIMA HYBRID — PARTIAL ENGINE ASSEMBLY

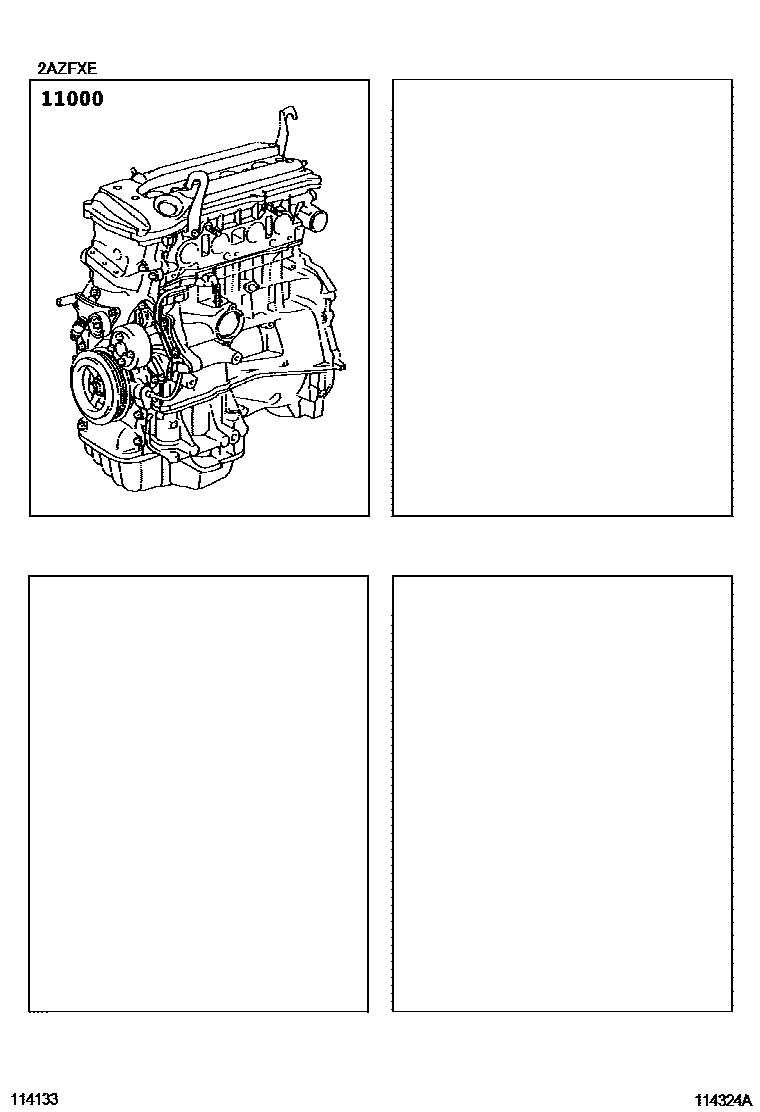

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-28C00i200606-200812
main19000-28C01i201409-201505
main19000-28C02i201505-201605

1 parts on this diagram · 1 diagram in section

PARTIAL ENGINE ASSEMBLY for Toyota ESTIMA HYBRID

This section contains 1 genuine Toyota parts for the PARTIAL ENGINE ASSEMBLY system of the Toyota ESTIMA HYBRID. Key components include: ENGINE ASSY, PARTIAL.
