Toyota ESTIMA HYBRID — HEV CONTROL COMPUTER

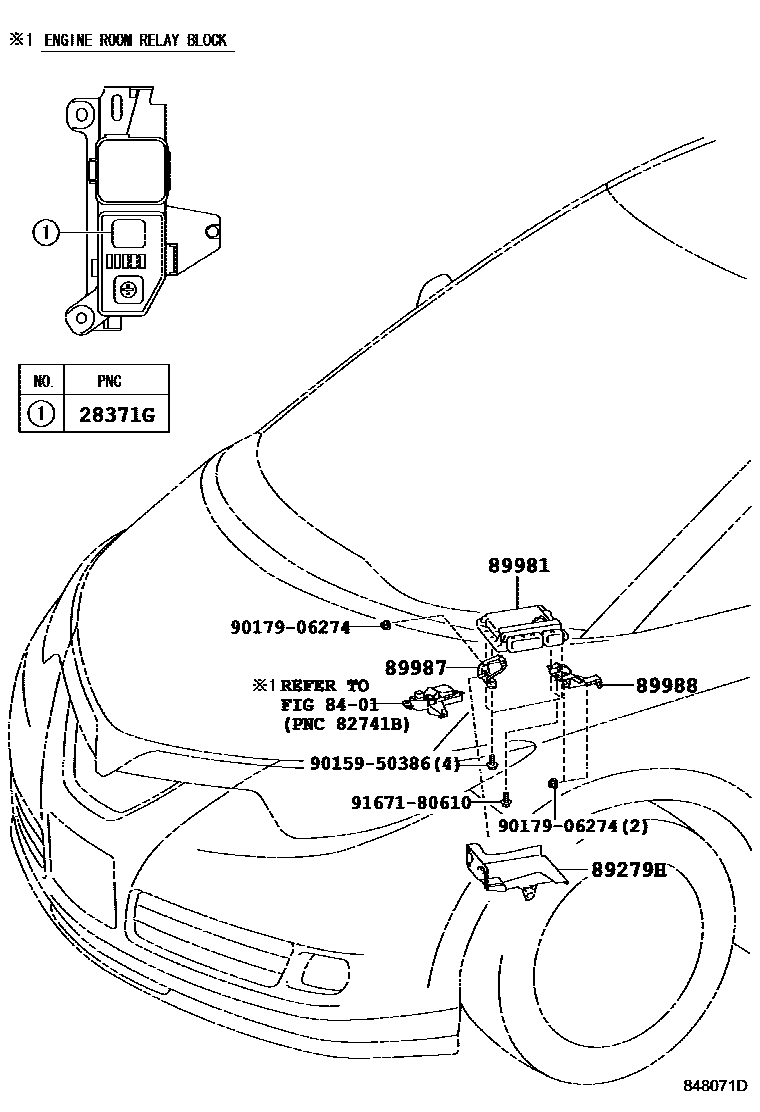

Parts diagram

28371GRELAY, IGNITION CONTACT

main90987-02025i200606-200812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89279HCOVER, COMPUTER

main89279-28070i200606-200812

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-28050i200606-200706

main89981-28060i201204-201206

main89981-28070i200706-200712

main89981-28071i200801-200812

main89981-28080i201206-201409

main89981-28090i200812-201204

main89981-28140i201605

main89981-28160i201409-201412

main89981-28161i201501-201605

89987BRACKET, COMPUTER, NO.1

main89987-28020i200606-200812

89988BRACKET, COMPUTER, NO.2

main89988-28030i200606-200812

9015950386

main90159-50386

9017906274

main90179-06274

9167180610

main91671-80610

9 parts on this diagram · 1 diagram in section

HEV CONTROL COMPUTER for Toyota ESTIMA HYBRID

This section contains 9 genuine Toyota parts for the HEV CONTROL COMPUTER system of the Toyota ESTIMA HYBRID. Key components include: RELAY, IGNITION CONTACT, SWITCH & RELAY & COMPUTER, COVER, COMPUTER, COMPUTER, HYBRID VEHICLE CONTROL, BRACKET, COMPUTER, NO.1.
