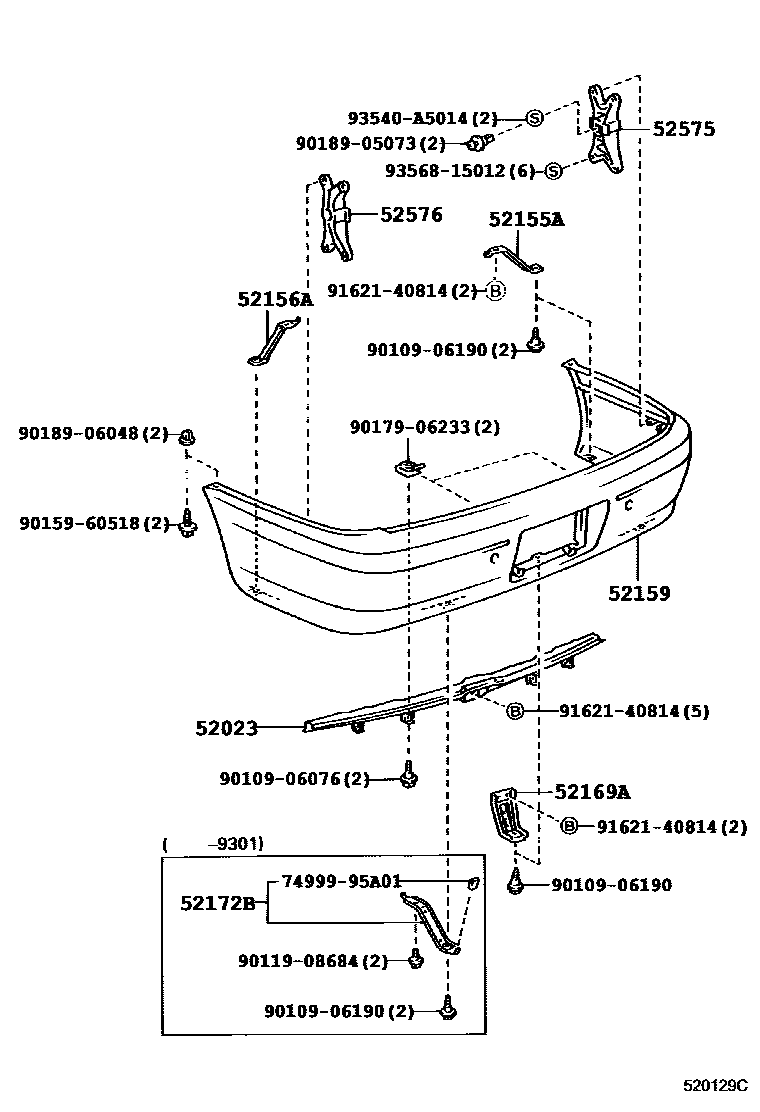

Toyota ESTIMA EMINA/LUCIDA — REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
COOL GLAY,041; COOL GLAY,041 ,573 ,750 ,8H5; COOL GLAY,573 ,750 ,8H5
WARM GLAY,3H8
GLAY M,193 ,3H8
GRAY M,573 ,750 ,8H5
GRAY M,750 ,751 ,8H5
SILVER ME.,042 ,199
GRAY M,193 ,3H8
GRAYISH BROWN,193 ,3J7
SILVER ME.,042
GRAY,191
52169ASUPPORT, REAR BUMPER SIDE, NO.3
52172BREINFORCEMENT, REAR BUMPER, NO.2
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
7499995A01
main74999-95A01
9010906076
main90109-06076
9010906190
main90109-06190
9011908684
main90119-08684
9015960518
main90159-60518
9017906233
main90179-06233
9018905073
main90189-05073
9018906048
main90189-06048
9162140814
main91621-40814
93540A5014
main93540-A5014
9356815012
main93568-15012
19 parts on this diagram · 1 diagram in section
REAR BUMPER & BUMPER STAY for Toyota ESTIMA EMINA/LUCIDA
This section contains 19 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota ESTIMA EMINA/LUCIDA. Key components include: REINFORCEMENT SUB-ASSY, REAR BUMPER, SUPPORT, REAR BUMPER SIDE, RH, SUPPORT, REAR BUMPER SIDE, LH, COVER, REAR BUMPER, SUPPORT, REAR BUMPER SIDE, NO.3.
