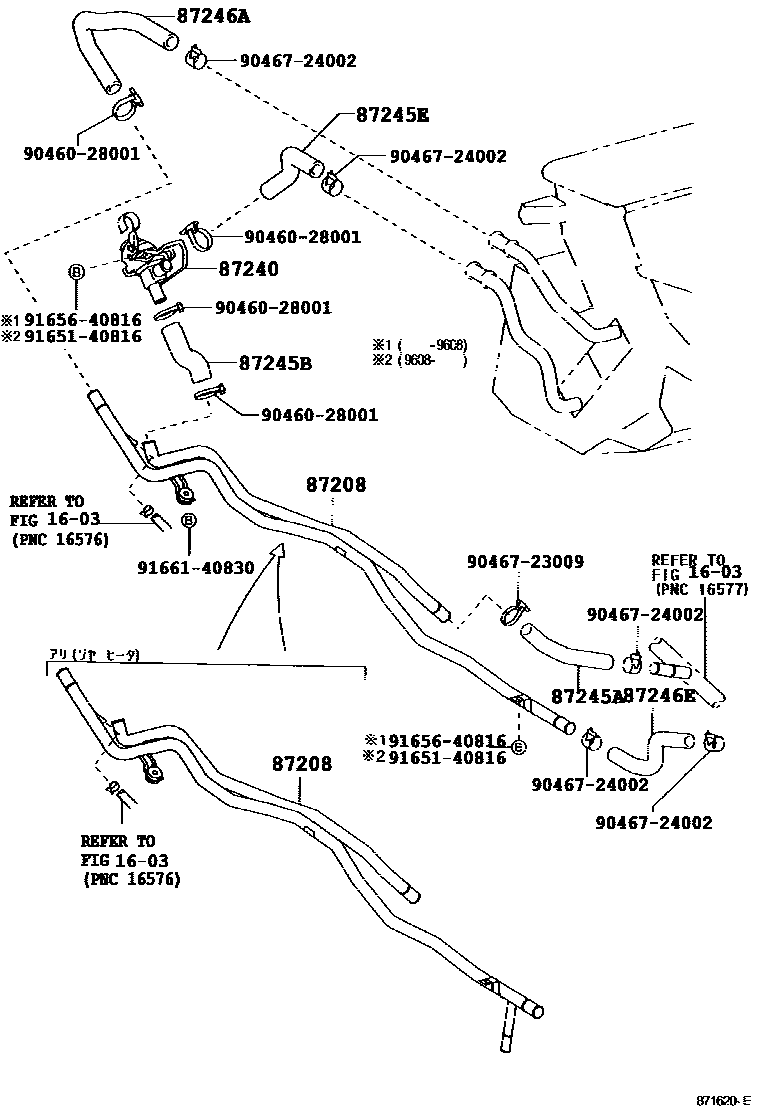

Toyota ESTIMA EMINA/LUCIDA — HEATING & AIR CONDITIONING - WATER PIPING
1603RADIATOR & WATER OUTLET
87208PIPE SUB-ASSY, HEATER WATER
87240VALVE ASSY, HEATER WATER
87245AHOSE, HEATER WATER, INLET A
87245BHOSE, HEATER WATER, INLET B
87245EHOSE, HEATER WATER, INLET E
87246AHOSE, HEATER WATER, OUTLET A
87246EHOSE, HEATER WATER, OUTLET E
9046028001
main90460-28001
9046723009
main90467-23009
9046724002
main90467-24002
9165140816
main91651-40816
9165640816
main91656-40816
9166140830
main91661-40830
14 parts on this diagram · 3 diagrams in section
HEATING & AIR CONDITIONING - WATER PIPING for Toyota ESTIMA EMINA/LUCIDA
This section contains 38 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota ESTIMA EMINA/LUCIDA. Key components include: WATER PUMP, RADIATOR & WATER OUTLET, PIPE SUB-ASSY, HEATER WATER, PIPE SUB-ASSY, HEATER WATER, A, PIPE SUB-ASSY, HEATER WATER, B.
