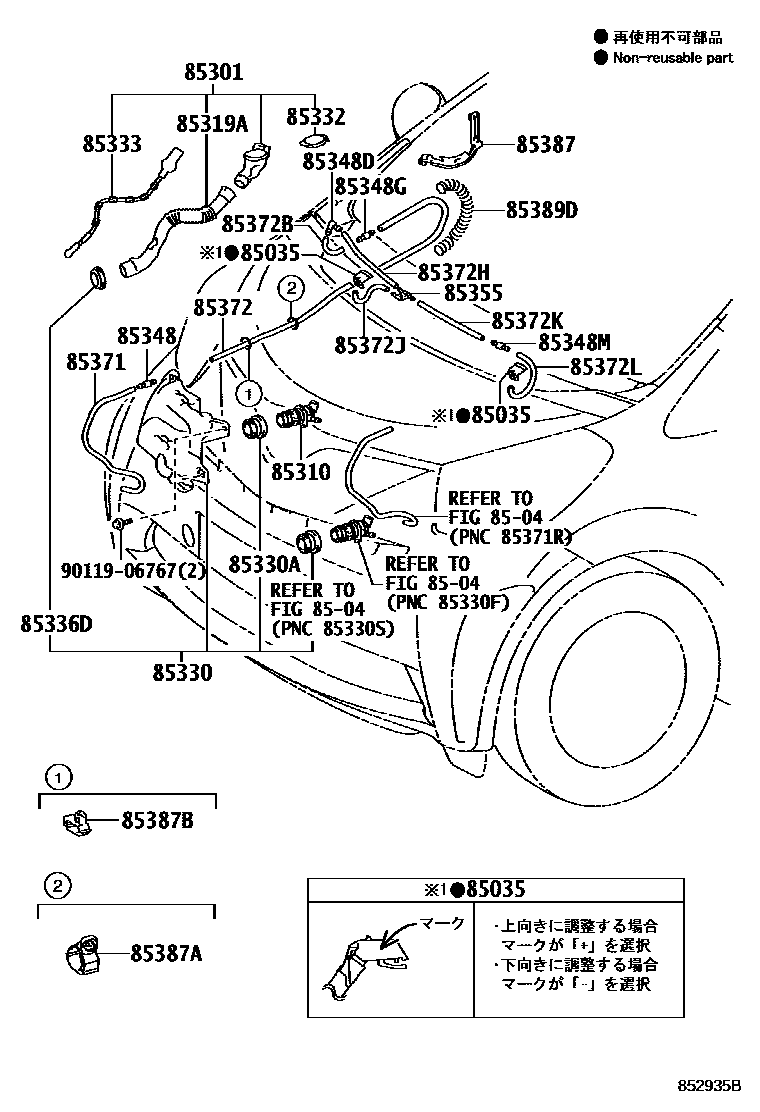

Toyota EQ EV — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-74010×2iKPJ10201209

main85381-74020×2iKPJ10201209

main85381-74030×2iKPJ10201209

8504

85301INLET SUB-ASSY, WASHER

main85318-74040iKPJ10201209

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-74010iKPJ10201209-201212

85319AHOSE, INLET

main85319-74040iKPJ10201209

85330JAR ASSY, WINDSHIELD WASHER

main85315-74040iKPJ10201209

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iKPJ10201209

85332CAP, WINDSHIELD WASHER JAR

main85316-52190iKPJ10201209

85333FILTER, WINDSHIELD WASHER JAR

main85312-21020iKPJ10201209

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iKPJ10201209

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iKPJ10201209

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iKPJ10201209

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iKPJ10201209

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-10260iKPJ10201209

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iKPJ10201209

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-62094iKPJ10201209

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iKPJ10201209

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iKPJ10201209

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-62058iKPJ10201209

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main85389-74010iKPJ10201209

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main90099-62063iKPJ10201209

85372LHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6

main85389-74010iKPJ10201209

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-74020iKPJ10201209

85387ACLAMP, WASHER, NO.2

main53614-12040iKPJ10201209-201212

85387BCLAMP, WASHER, NO.3

main53614-74010iKPJ10201209-201212

85389DSPRING(WASHER HOSE)

main85389-72030iKPJ10201209

9011906767

main90119-06767

27 parts on this diagram · 1 diagram in section
