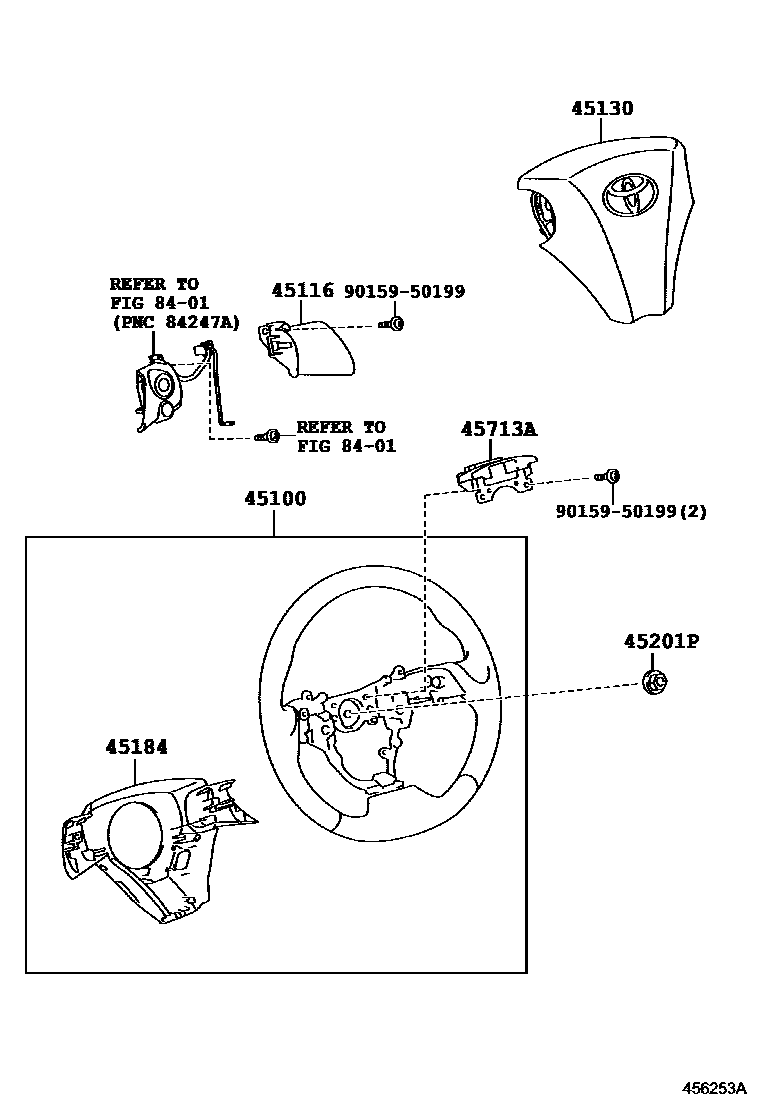

Toyota EQ EV — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-74021-C1i201209-201212

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-74010-C1i201209-201212

BLACK,TRIM2#

45130BUTTON ASSY, HORN

main45130-74060-A0i201209-201212

WHITE,TRIM2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-74010-C0i201209-201212

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main90179-12071i201209

45713ADAMPER, STEERING SHAKE

main45713-74020i201209

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950199

main90159-50199

8 parts on this diagram · 1 diagram in section

STEERING WHEEL for Toyota EQ EV

This section contains 8 genuine Toyota parts for the STEERING WHEEL system of the Toyota EQ EV. Key components include: WHEEL ASSY, STEERING, ORNAMENT, STEERING WHEEL, NO.1, BUTTON ASSY, HORN, COVER, STEERING WHEEL BOSS, LOWER, NUT, STEERING WHEEL SET.
