Toyota EQ EV — SHIFT LEVER & RETAINER
1110BEV MOTOR
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#
33550DBULB, POSITION INDICATOR LAMP
33550ECAP, POSITION INDICATOR LAMP
33560UNIT ASSY, SHIFT LOCK CONTROL
33820BCABLE ASSY, TRANSMISSION CONTROL
33821GNUT (FOR TRANSMISSION CONTROL CABLE)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
35906WIRE SUB-ASSY, INDICATOR LAMP
35921PLATE, CONTROL POSITION INDICATOR
35953GUIDE, POSITION INDICATOR LIGHT
35971EHOUSING, POSITION INDICATOR
BLACK,TRIM2#
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401SWITCH & RELAY & COMPUTER
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
9046814016
main90468-14016
9163160825
main91631-60825
91671A0616
main91671-A0616
21 parts on this diagram · 1 diagram in section

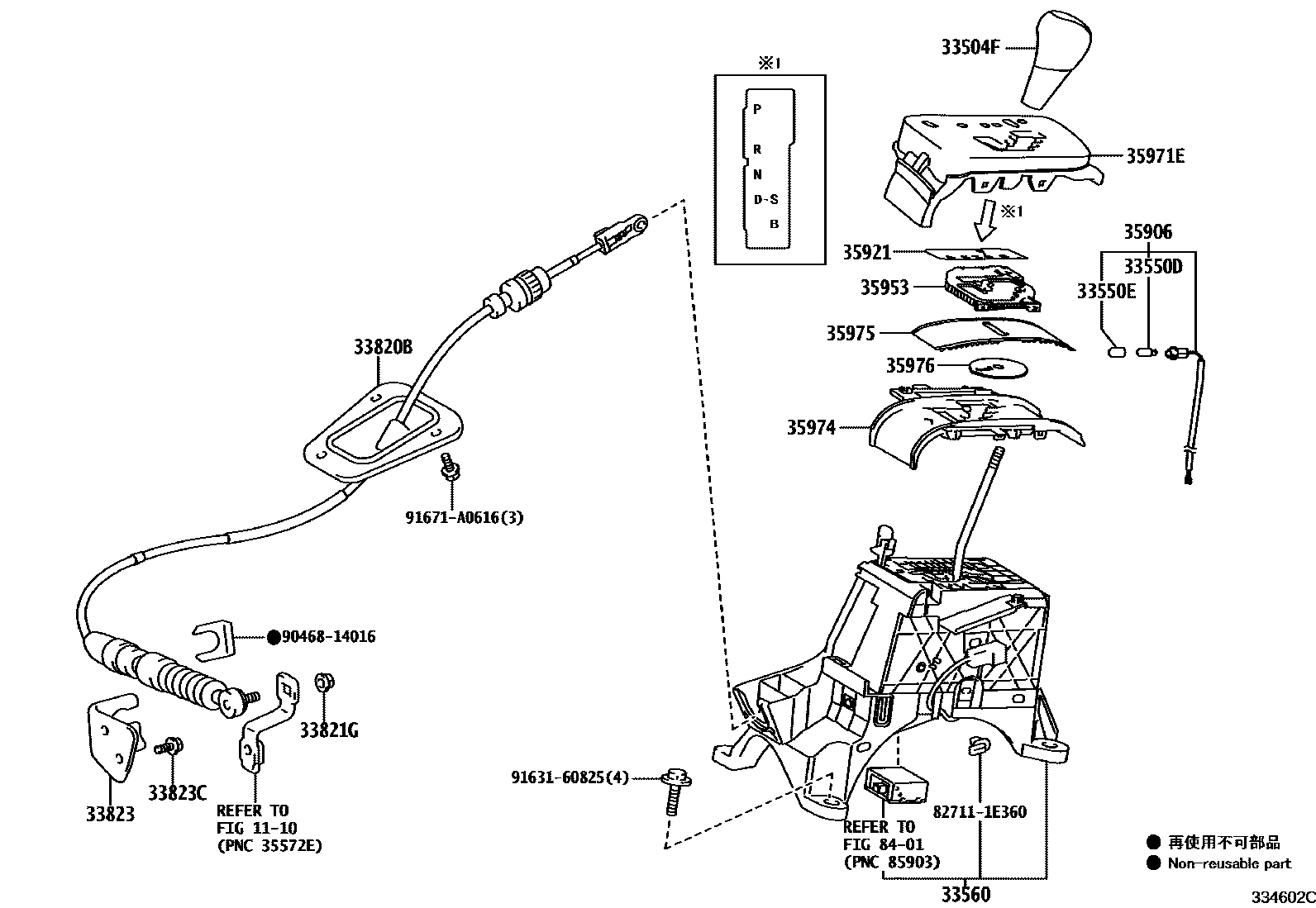

SHIFT LEVER & RETAINER for Toyota EQ EV
This section contains 21 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota EQ EV. Key components include: BEV MOTOR, KNOB SUB-ASSY, SHIFT LEVER, BULB, POSITION INDICATOR LAMP, CAP, POSITION INDICATOR LAMP, UNIT ASSY, SHIFT LOCK CONTROL.
