Toyota EQ EV — MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-74200-B1i201209-201212

DK. GREY,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B0×2i201209-201212

LT.GRAY

58521BHOOK, FLOOR CARPET

main58521-12140×4i201209

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7×3i201209-201212

DK.GRAY,TRIM2#

58563QSILENCER, FRONT FLOOR, NO.3

main58563-74070i201209

58564ASILENCER, FRONT FLOOR, NO.4

main58564-74110i201209

58694APLATE, MAT SET, UPPER

main58694-76010×2i201209

58698CPLATE, MAT SET, LOWER

main58698-76010×2i201209

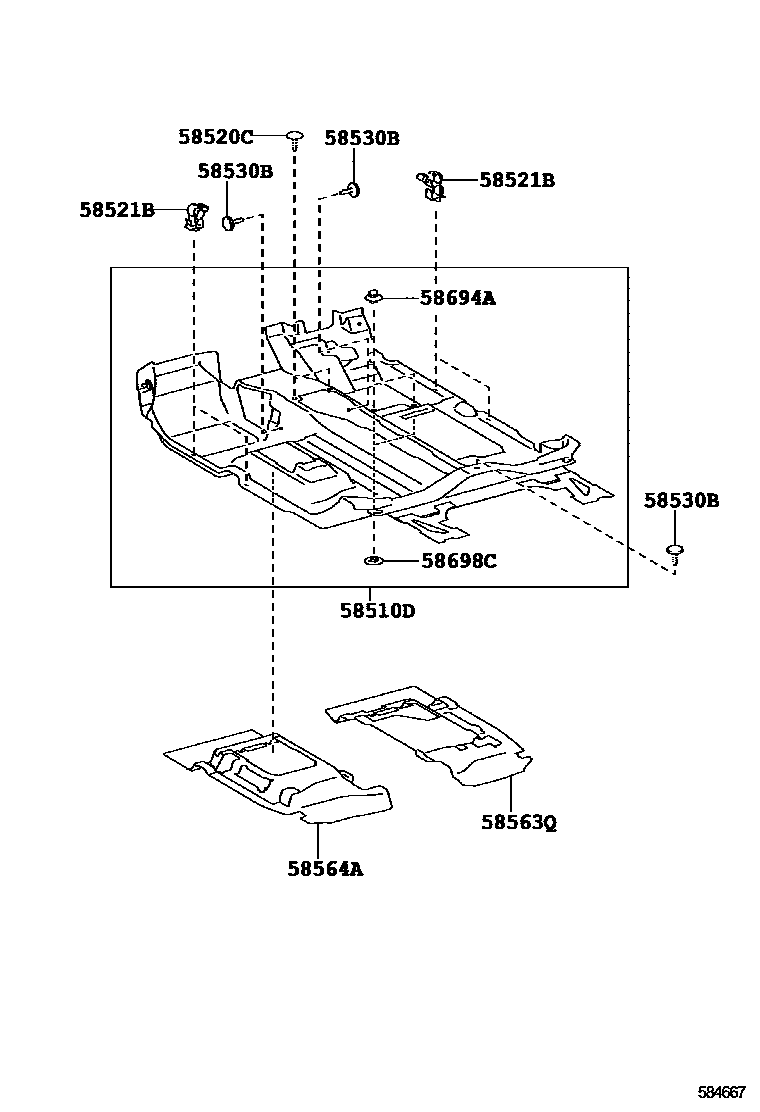

8 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota EQ EV

This section contains 8 genuine Toyota parts for the MAT & CARPET system of the Toyota EQ EV. Key components include: CARPET ASSY, FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), HOOK, FLOOR CARPET, SILENCER, FRONT FLOOR, NO.3.
