Toyota EQ EV — FRONT DOOR WINDOW REGULATOR & HINGE

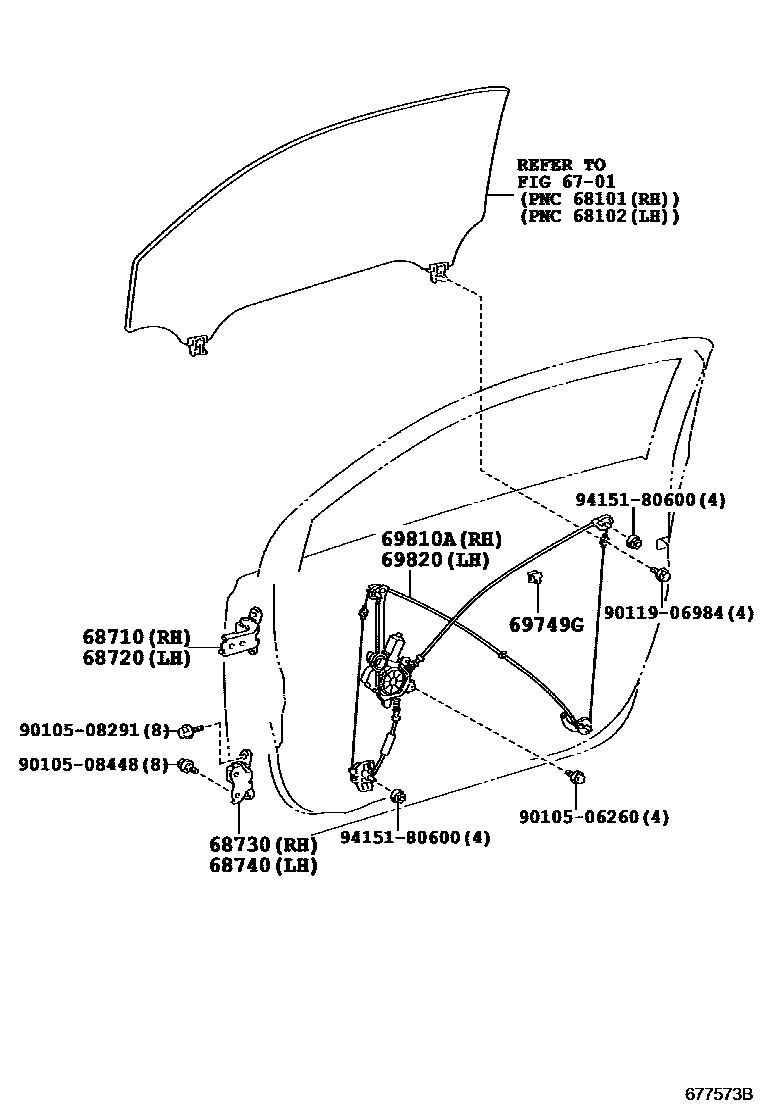

Parts diagram

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151i201209-201212

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151i201209

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-74011i201209

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-74011i201209

69749GCLAMP(FOR FRONT DOOR WINDOW REGULATOR)

main69749-74010×2i201209

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-74020i201209-201212

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-74010i201209-201212

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9011906984

main90119-06984

9415180600

main94151-80600

13 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota EQ EV

This section contains 13 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota EQ EV. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
