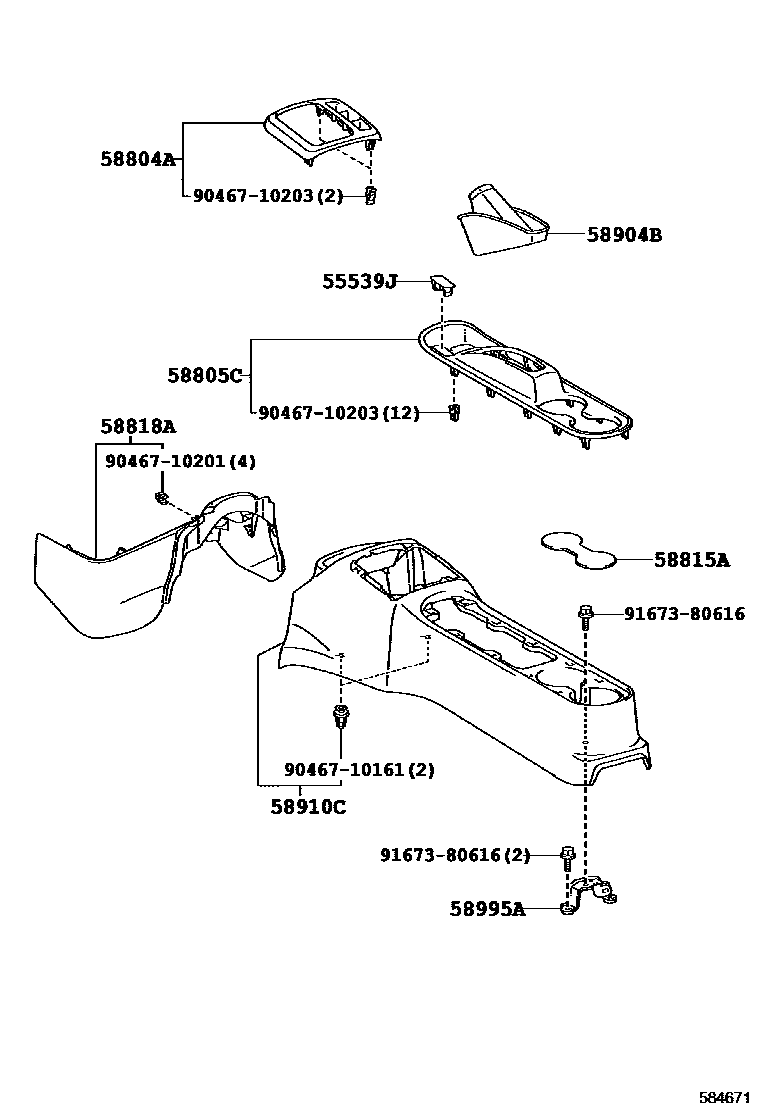

Toyota EQ EV — CONSOLE BOX & BRACKET

55539JCOVER, SPARE SWITCH HOLE

main55539-74010-A1iKPJ10201209-201212

WHITE,TRIM2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-74030-C1iKPJ10201209-201212

BLACK,TRIM2#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-74010-A2iKPJ10201209-201212

WHITE,TRIM2#

58815ACARPET, CONSOLE BOX

main58815-74010iKPJ10201209

58818ACOVER, CONSOLE BOX, FR

main58802-74020-C0iKPJ10201209-201212

BLACK,TRIM2#

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-74020-C0iKPJ10201209-201212

BLACK,TRIM2#

58910CBOX ASSY, CONSOLE, REAR

main58910-74040-C0iKPJ10201209-201212

BLACK,TRIM2#

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-74020iKPJ10201209

9046710161

main90467-10161

9046710201

main90467-10201

9046710203

main90467-10203

9167380616

main91673-80616

12 parts on this diagram · 1 diagram in section
