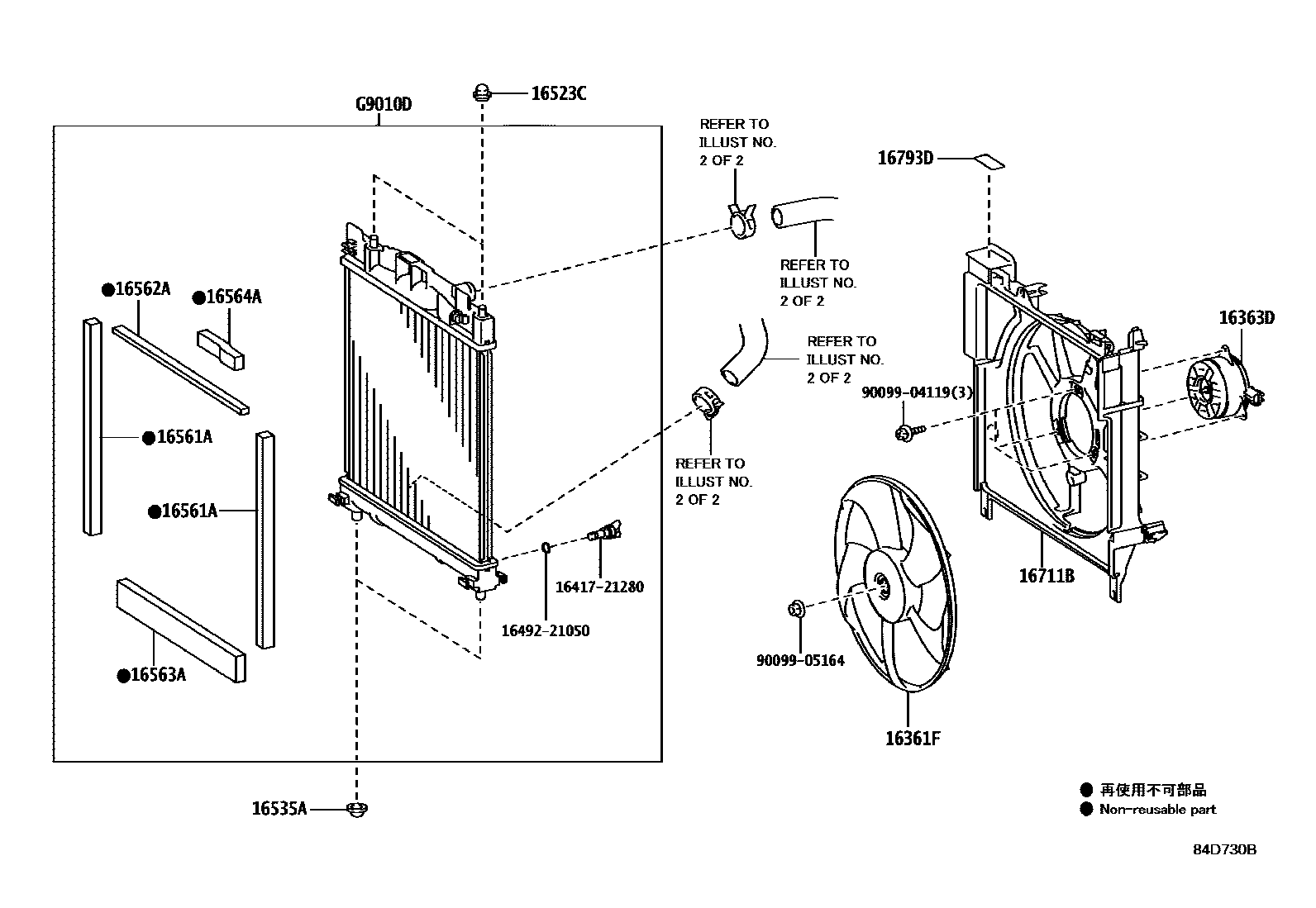

Toyota EQ EV — BEV COOLING

16361FFAN

main16361-40080i201209

16363DMOTOR, COOLING FAN

main16363-10020i201209

16523CCUSHION, RADIATOR SUPPORT

main16523-21030×2i201209

16535ASUPPORT, RADIATOR, LOWER

main90480-22025×2i201209

16561ASEAL, RADIATOR TO SUPPORT, NO.1

main16561-40020×2i201209

16562ASEAL, RADIATOR TO SUPPORT, NO.2

main16561-40030i201209

16563ASEAL, RADIATOR TO SUPPORT, NO.3

main16561-40040i201209

16564ASEAL, RADIATOR TO SUPPORT, NO.4

main16561-40050i201209

16711BSHROUD, FAN

main16711-10050i201209

16793DLABEL, COOLING FAN INFORMATION

main88723-20081i201209

G9010DRADIATOR ASSY

mainG901074010i201209

1641721280COCK

main16417-21280

1649221050RING, O(FOR RADIATOR RESERVE TANK COCK)

main16492-21050

9009904119

main90099-04119

9009905164

main90099-05164

15 parts on this diagram · 2 diagrams in section

BEV COOLING for Toyota EQ EV

This section contains 50 genuine Toyota parts for the BEV COOLING system of the Toyota EQ EV. Key components include: FAN, MOTOR, COOLING FAN, CAP, RESERVE TANK, CUSHION, RADIATOR SUPPORT, SUPPORT, RADIATOR, LOWER.
