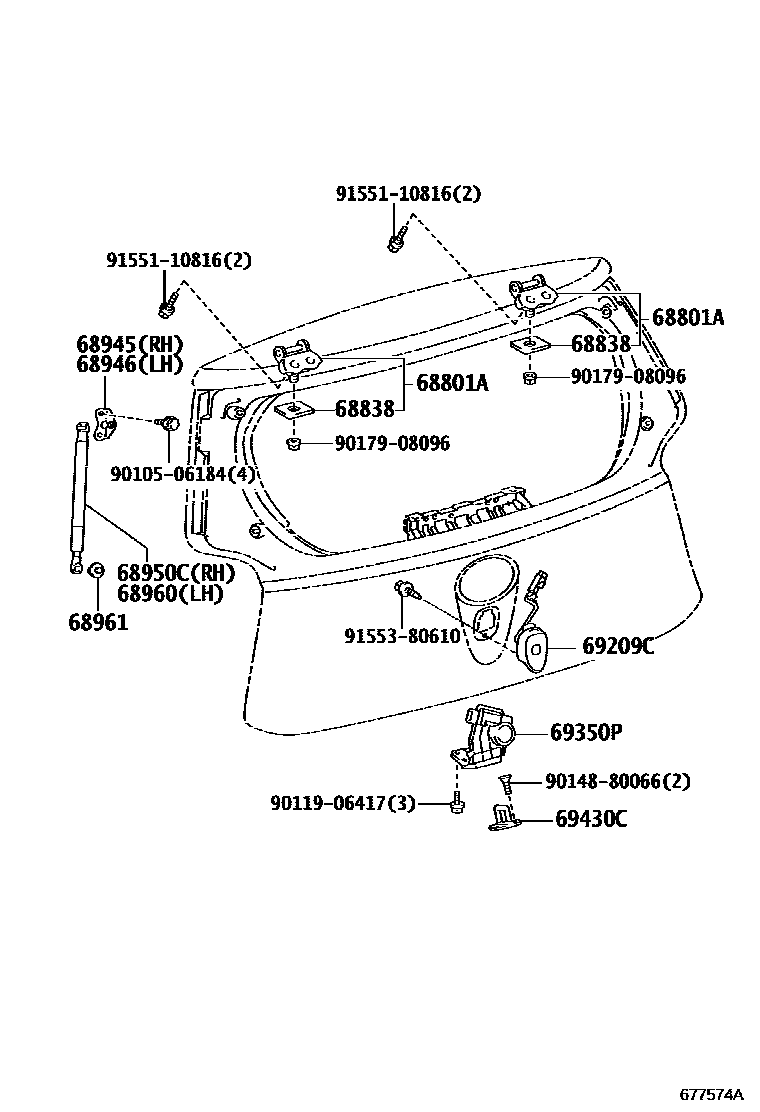

Toyota EQ EV — BACK DOOR LOCK & HANDLE
68801AHINGE SUB-ASSY, BACK DOOR, UPPER
68838PAD, BACK DOOR HINGE, NO.1
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
69209CHANDLE SUB-ASSY, BACK DOOR, OUTSIDE
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,2KR ,2KU ,2KX
COOL SODA ME.,8V7
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69430CSTRIKER ASSY, BACK DOOR LOCK
9010506184
main90105-06184
9011906417
main90119-06417
9014880066
main90148-80066
9017908096
main90179-08096
9155110816
main91551-10816
9155380610
main91553-80610
16 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota EQ EV
This section contains 16 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota EQ EV. Key components include: HINGE SUB-ASSY, BACK DOOR, UPPER, PAD, BACK DOOR HINGE, NO.1, BRACKET, BACK DOOR DAMPER STAY, UPPER RH, BRACKET, BACK DOOR DAMPER STAY, UPPER LH, STAY ASSY, BACK DOOR, RH.
