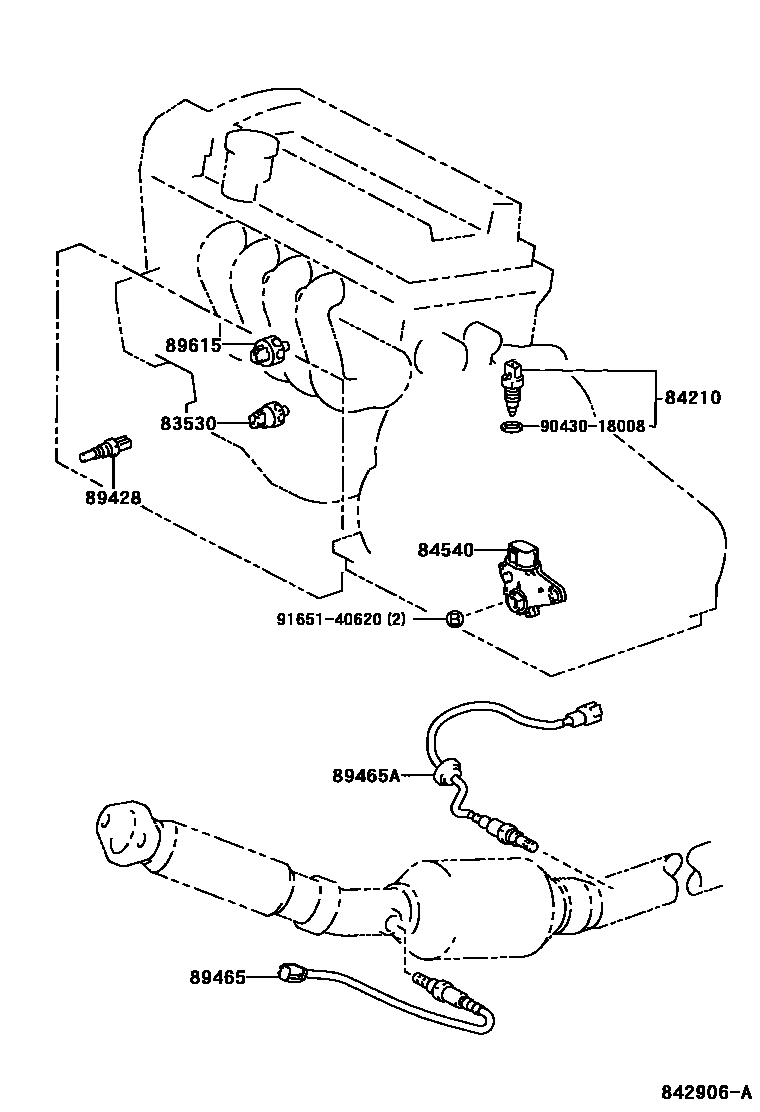

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCP12200208

DENSO

main83530-60020iNCP12199908-200208

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iNCP12..MTM199908-200208

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-52050iNCP12..ATM200208-200511

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20110iNCP12199908-200208

89465SENSOR, OXYGEN

main89465-52050iNCP12199908-200208

main89465-52190iNCP12200208

89465ASENSOR, OXYGEN NO.2

main89465-52060iNCP12199908-200208

PART NUMBER LABEL=89465-52060

main89465-52120iNCP12199908-200208

PART NUMBER LABEL=89465-52120

main89465-52200iNCP12200208

89615SENSOR, KNOCK CONTROL

main89615-52030iNCP12199908-200007

main89615-52040iNCP12200007-200208

TOYOTA

9043018008

main90430-18008

9165140620

main91651-40620

9 parts on this diagram · 6 diagrams in section
