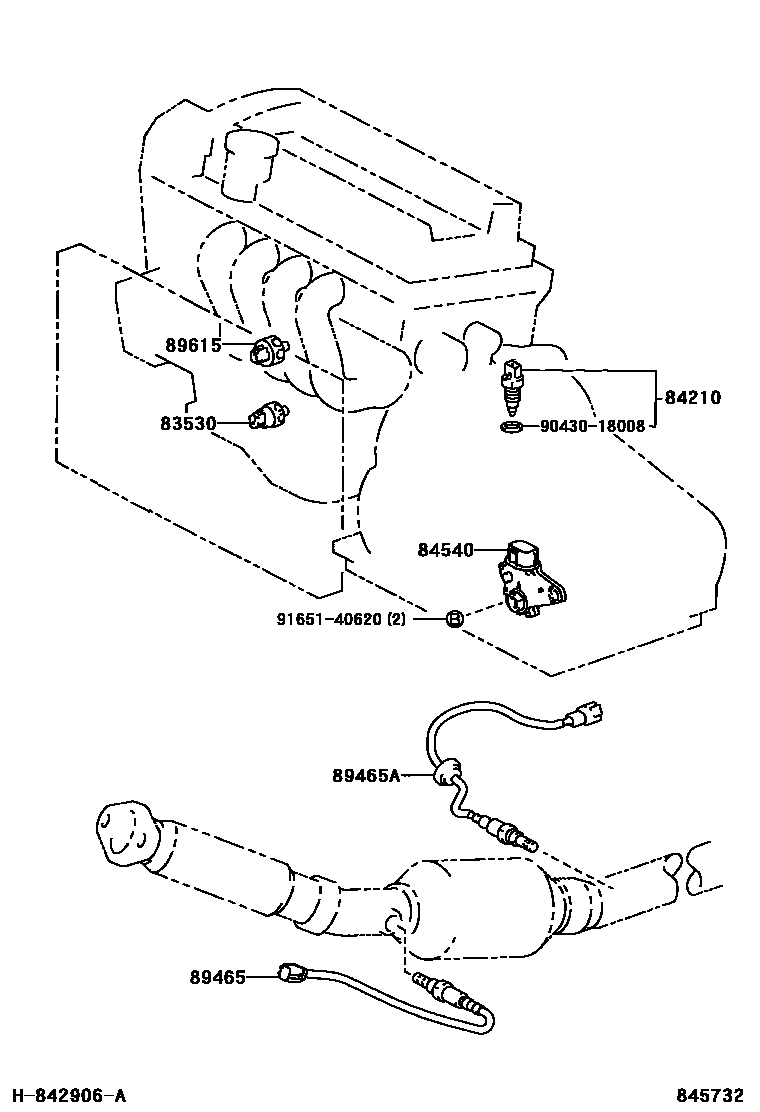

Toyota ECHO — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1COMBINATION SWITCH 0007 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iNCP13200306

DENSO

main83530-60020iNCP13200306

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iNCP13..MTM200306-200508

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-52050iNCP13..ATM200306-200508

89465SENSOR, OXYGEN

main89465-52190iNCP13200306

89465ASENSOR, OXYGEN NO.2

main89465-52200iNCP13200306

89615SENSOR, KNOCK CONTROL

main89615-52030iNCP13200306-200309

DENSO

main89615-52040iNCP13200306-200309

TOYOTA

9043018008

main90430-18008

9165140620

main91651-40620

8 parts on this diagram · 7 diagrams in section
