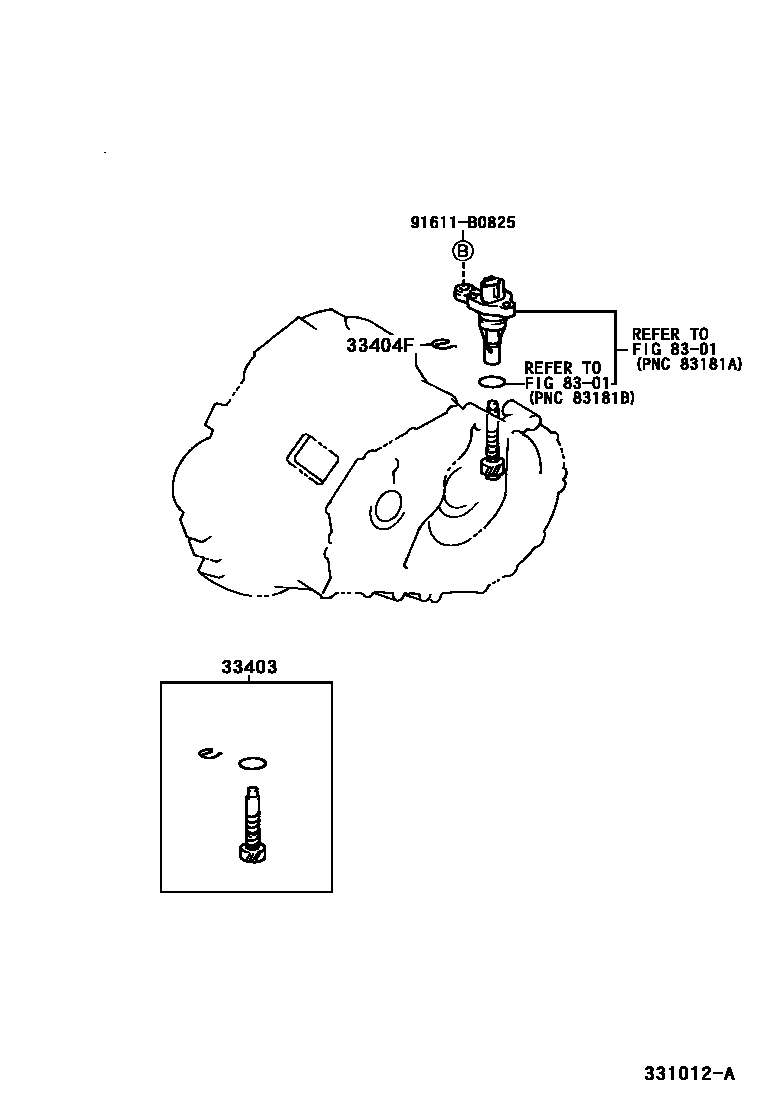

Toyota ECHO — SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19445i199908-200208

N=30,MARK 30:34

main33403-19455i200208

N=30,MARK 30:35

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005i199908-200208

8301METER

→ Go to FIG 83-01

91611B0825

main91611-B0825

4 parts on this diagram · 1 diagram in section

SPEEDOMETER DRIVEN GEAR (MTM) for Toyota ECHO

This section contains 4 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (MTM) system of the Toyota ECHO. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM), CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE), METER.
