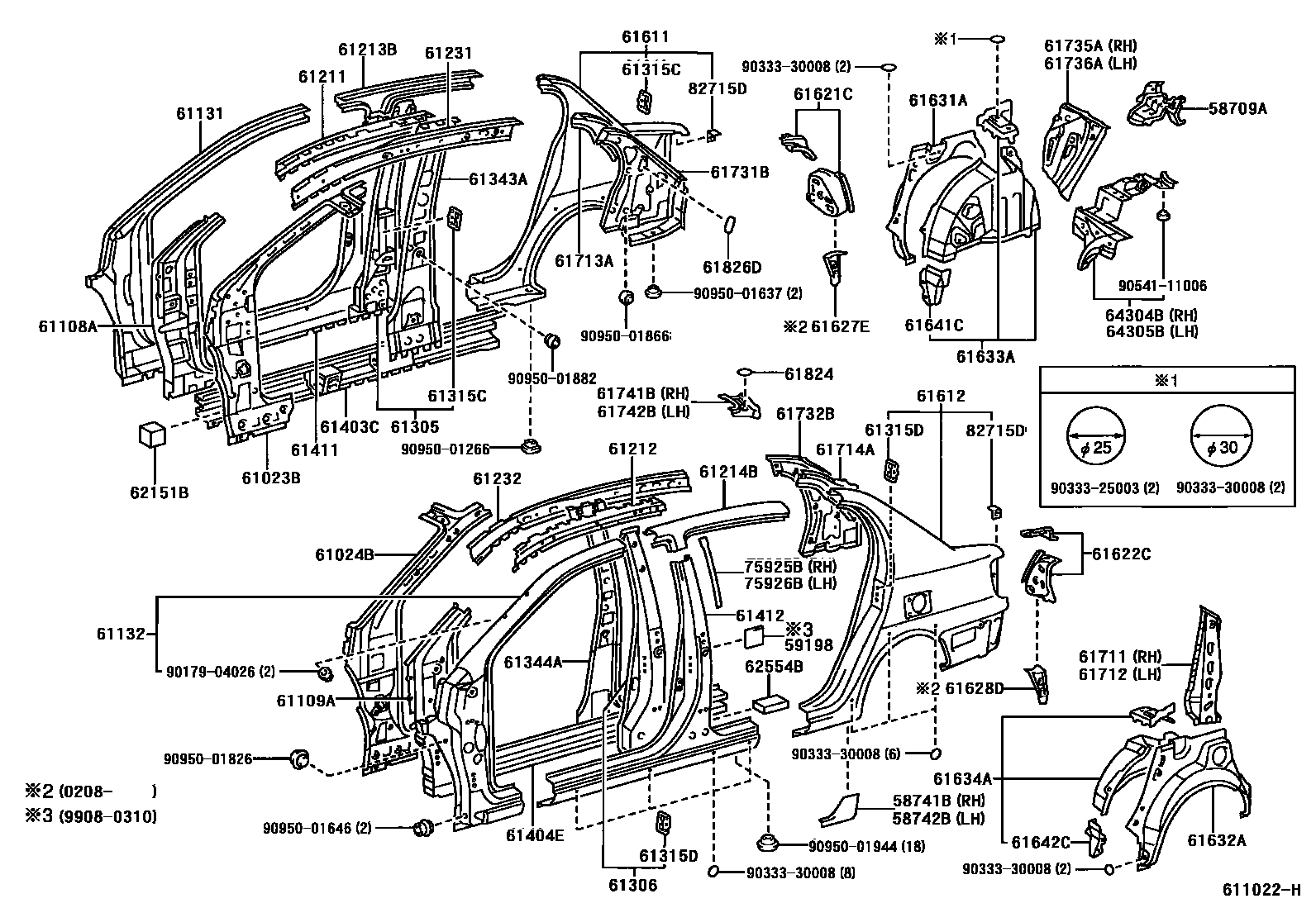

Toyota ECHO — SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

58709ACARRIER SUB-ASSY, JACK

main58709-52010iNCP12200208

58741BPROTECTOR, QUARTER PANEL, RH

main58741-52010iNCP12..4D199908-199911

main58741-52011iNCP12..4D199911-200008

main58741-52012iNCP12..4D200008-200208

main58741-52020iNCP12..2D199908-199911

main58741-52021iNCP12..2D199911-200008

main58741-52022iNCP12..2D200008-200208

58742BPROTECTOR, QUARTER PANEL, LH

main58742-52010iNCP12..4D199908-199911

main58742-52011iNCP12..4D199911-200008

main58742-52012iNCP12..4D200208

main58742-52020iNCP12..2D199908-199911

main58742-52021iNCP12..2D199911-200008

main58742-52022iNCP12..2D200008-200208

59198SEAL, NOISE SHUTTER

main59198-12010×2iNCP12..4D200208-200310

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-52010iNCP12199908-199912

main61023-52011iNCP12199912-200208

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-52010iNCP12199908-199912

main61024-52011iNCP12199912-200208

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-52010iNCP12199908-199910

main61108-52011iNCP12199910-200204

main61108-52090iNCP12200204-200208

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-52010iNCP12199908-199912

main61109-52011iNCP12199912-200204

main61109-52090iNCP12200204-200208

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-52050iNCP12199908-200208

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-52040iNCP12200208-200602

61211RAIL, ROOF SIDE, OUTER RH

main61211-52020iNCP12..2D199908-199909

main61211-52021iNCP12..2D200212

main61211-52040iNCP12..4D199908-199912

main61211-52041iNCP12..4D199912-200208

main61211-52042iNCP12..4D200212

61212RAIL, ROOF SIDE, OUTER LH

main61212-52020iNCP12..2D199908-199909

main61212-52021iNCP12..2D199909-200208

main61212-52040iNCP12..4D199908-199912

main61212-52041iNCP12..4D199912-200208

main61212-52042iNCP12..4D200212

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-52030iNCP12..4D200208-200501

main61213-52031iNCP12..4D200502

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-52030iNCP12..4D199908-200208

main61214-52031iNCP12..4D200502

61231RAIL, ROOF SIDE, INNER RH

main61231-52031iNCP12..2D199909-200212

main61231-52040iNCP12..2D199908-199909

main61231-52041iNCP12..2D200212

main61231-52090iNCP12..4D199908-199912

main61231-52091iNCP12..4D200212

61232RAIL, ROOF SIDE, INNER LH

main61232-52031iNCP12..2D199909-200212

main61232-52040iNCP12..2D199908-199909

main61232-52041iNCP12..2D200212

main61232-52090iNCP12..4D199908-199912

main61232-52091iNCP12..4D199912-200212

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-52011iNCP12..4D199908-200208

sub61305-52911

main61305-52021iNCP12..2D200212

main61305-52030iNCP12..4D200301

W(SRS SIDE AIR BAG)

sub61305-52912

main61305-52040iNCP12..2D200008-200208

W(SRS SIDE AIR BAG)

main61305-52080iNCP12..4D200208-200212

sub61305-52901

61306REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH

main61306-52011iNCP12..4D200212

sub61306-52912

main61306-52021iNCP12..2D199908-200208

main61306-52030iNCP12..4D200301

W(SRS SIDE AIR BAG)

sub61306-52913

main61306-52040iNCP12..2D200212

W(SRS SIDE AIR BAG)

main61306-52080iNCP12..4D200208-200212

sub61306-52901

61315CRETAINER, DOOR LOCK STRIKER, RH

main61315-22020×2iNCP12..4D199908-200208

PUERTORICO SPEC

61315DRETAINER, DOOR LOCK STRIKER, LH

main61315-22020iNCP12..4D199908-200208

W(SIDE PROTECTION MOULDING)

61343APILLAR, CENTER BODY, INNER RH

main61343-52900iNCP12..4D199908-200208

main61343-52901iNCP12..2D199908-200208

main61343-52903iNCP12..4D200212

main61343-52904iNCP12..2D200212

61344APILLAR, CENTER BODY, INNER LH

main61344-52900iNCP12..4D199908-200208

main61344-52901iNCP12..2D200208-200212

main61344-52903iNCP12..4D200212

main61344-52904iNCP12..2D200212

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-52010iNCP12..4D200208

main61403-52020iNCP12..2D199908-200208

main61403-52110iNCP12..2D200212

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-52010iNCP12..4D200212

main61404-52020iNCP12..2D199908-200208

main61404-52110iNCP12..2D200212

61411PANEL, ROCKER, OUTER RH

main61411-52050iNCP12..2D199908-200208

main61411-52060iNCP12..2D199908-200208

W(SIDE MUDGUARD)

main61411-52070iNCP12..4D200208

main61411-52080iNCP12..4D..USA200310

W(SIDE MUDGUARD)

61412PANEL, ROCKER, OUTER LH

main61412-52050iNCP12..2D199908-200208

main61412-52060iNCP12..2D200208-200310

W(SIDE MUDGUARD)

main61412-52070iNCP12..4D199908-200208

main61412-52080iNCP12..4D200208-200310

W(SIDE MUDGUARD)

61611PANEL, QUARTER, RH

main61601-52040iNCP12..2D199908-200208

main61601-52050iNCP12..2D199908-200208

W(SIDE MUDGUARD)

main61601-52060iNCP12..4D199908-200208

sub61601-52370

main61601-52080iNCP12..4D199908-200208

W(SIDE MUDGUARD)

sub61601-52390

main61601-52150iNCP12..2D..USA200208

main61601-52160iNCP12..2D..CND200208

main61601-52170iNCP12..2D..USA200208

W(SIDE MUDGUARD)

main61601-52180iNCP12..2D..CND200208-200310

W(SIDE MUDGUARD)

main61601-52190iNCP12..4D..USA200208-200503

main61601-52191iNCP12..4D..USA200504

main61601-52200iNCP12..4D..CND200208-200503

main61601-52201iNCP12..4D..CND200504

main61601-52210iNCP12..4D..USA200208-200503

W(SIDE MUDGUARD)

main61601-52211iNCP12..4D..USA200504

W(SIDE MUDGUARD)

main61601-52220iNCP12..4D..CND200208-200503

W(SIDE MUDGUARD)

sub61601-52221

61612PANEL, QUARTER, LH

main61602-52050iNCP12..2D199908-200208

main61602-52060iNCP12..2D199908-200208

W(SIDE MUDGUARD)

main61602-52070iNCP12..4D199908-200208

sub61602-52400

main61602-52090iNCP12..4D199908-200208

W(SIDE MUDGUARD)

sub61602-52420

main61602-52170iNCP12..2D..USA200208

main61602-52180iNCP12..2D..CND200208

main61602-52190iNCP12..2D..USA200208

W(SIDE MUDGUARD)

main61602-52200iNCP12..2D..CND200208-200310

W(SIDE MUDGUARD)

main61602-52210iNCP12..4D..USA200208-200503

main61602-52211iNCP12..4D..USA200504

main61602-52220iNCP12..4D..CND200208-200503

main61602-52221iNCP12..4D..CND200504

main61602-52230iNCP12..4D..USA200208-200503

W(SIDE MUDGUARD)

main61602-52231iNCP12..4D..USA200504

W(SIDE MUDGUARD)

main61602-52240iNCP12..4D..CND200208-200503

W(SIDE MUDGUARD)

sub61602-52241

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-52901iNCP12199908-200208

main61621-52903iNCP12200208

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-52900iNCP12199908-200208

main61622-52902iNCP12200208-200602

61627EEXTENSION, QUARTER PANEL, REAR LOWER RH

main61627-52020iNCP12200208

61628DEXTENSION, QUARTER PANEL, REAR LOWER LH

main61628-52020iNCP12200208

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-52010iNCP12199908-200208

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-52010iNCP12200208

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-52907iNCP12199908-200208

W(FIXED TYPE REAR SEAT & ABS)

main61607-52908iNCP12199908-200208

W(FIXED TYPE REAR SEAT)

main61607-52909iNCP12200208

W(6:4 SPRIT REAR SEAT & ABS)

main61607-52910iNCP12200208

W(6:4 SPRIT REAR SEAT)

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-52907iNCP12199908-200208

W(FIXED TYPE REAR SEAT & ABS)

main61608-52908iNCP12199908-200208

W(FIXED TYPE REAR SEAT)

main61608-52909iNCP12199908-200208

W(6:4 SPRIT REAR SEAT & ABS)

main61608-52910iNCP12199908-200208

W(6:4 SPRIT REAR SEAT)

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-52010iNCP12199908-200208

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-52010iNCP12199908-200208

61711PANEL, ROOF SIDE, OUTER RH

main61711-52050iNCP12..2D199908-200208

main61711-52060iNCP12..4D199908-200208

61712PANEL, ROOF SIDE, OUTER LH

main61712-52050iNCP12..2D199908-200208

main61712-52060iNCP12..4D199908-200208

61713AEXTENSION, ROOF SIDE, OUTER RH

main61713-52020iNCP12..4D200208-200412

61714AEXTENSION, ROOF SIDE, OUTER LH

main61714-52020iNCP12..4D200208-200412

61731BPANEL, ROOF SIDE, INNER RH

main61705-52916iNCP12..2D200412

main61705-52917iNCP12..4D200412

main61731-52040iNCP12..2D199908-200208

main61731-52050iNCP12..4D199908-200208

main61731-52160iNCP12..4D200208-200412

61732BPANEL, ROOF SIDE, INNER LH

main61706-52916iNCP12..2D200412

main61706-52917iNCP12..4D200412

main61732-52040iNCP12..2D200208-200412

main61732-52050iNCP12..4D199908-200208

main61732-52160iNCP12..4D200208-200412

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-52010iNCP12200208

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-52010iNCP12199908-200208

61741BREINFORCEMENT, BACK WINDOW OPENING, RH

main61741-52010iNCP12199908-200208

61742BREINFORCEMENT, BACK WINDOW OPENING, LH

main61742-52010iNCP12199908-200208

61824PLATE, NOISE CONTROL, NO.1

main61824-52010×4iNCP12199908-200208

61826DPLATE, NOISE CONTROL, NO.3

main61826-47010×2iNCP12..4D199908-200208

62151BPAD, COWL SIDE SILENCER

main62151-12130×2iNCP12199908-200104

main62151-52010×2iNCP12200104-200208

62554BPAD, PILLAR, NO.4

main62554-12130×2iNCP12199908-200208

64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

main64304-52010iNCP12199908-200208

W(FIXED TYPE REAR SEAT)

main64304-52020iNCP12199908-200208

W(6:4 SPRIT REAR SEAT)

main64304-52050iNCP12200208

W(FIXED TYPE REAR SEAT)

main64304-52060iNCP12200208

W(6:4 SPRIT REAR SEAT)

64305BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH

main64305-52010iNCP12199908-200208

W(FIXED TYPE REAR SEAT)

main64305-52020iNCP12199908-200208

W(6:4 SPRIT REAR SEAT)

main64305-52050iNCP12200208

W(FIXED TYPE REAR SEAT)

main64305-52060iNCP12200208

W(6:4 SPRIT REAR SEAT)

75925BTAPE, BLACK OUT, NO.3 RH

main75925-52010iNCP12..4D199908-200208

75926BTAPE, BLACK OUT, NO.3 LH

main75926-52010iNCP12..4D199908-200208

82715DBRACKET, WIRING HARNESS CLAMP

main82715-33250iNCP12199908-200208

9017904026

main90179-04026

9033325003

main90333-25003

9033330008

main90333-30008

9054111006

main90541-11006

9095001266

main90950-01266

9095001637

main90950-01637

9095001646

main90950-01646

9095001826

main90950-01826

9095001866

main90950-01866

9095001882

main90950-01882

9095001944

main90950-01944

68 parts on this diagram · 4 diagrams in section
