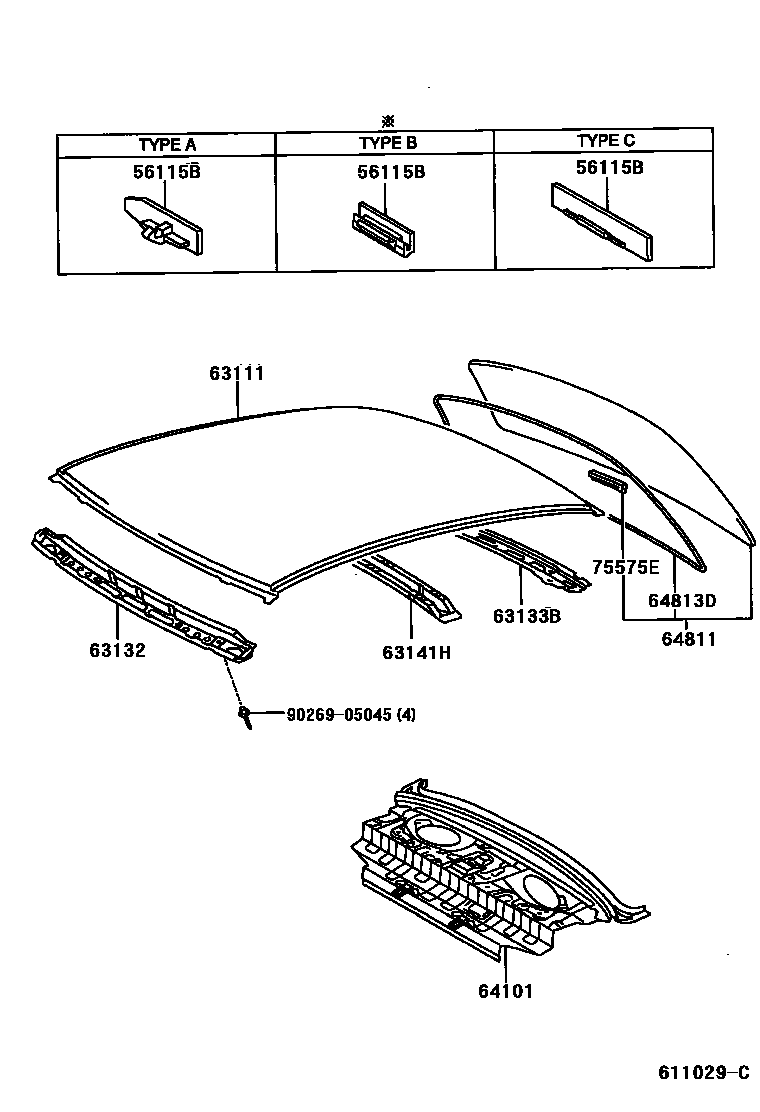

Toyota ECHO — ROOF PANEL & BACK WINDOW GLASS

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30100×2i200208

TYPE B:REFER ILLUST.

main56115-33040×2i199908-200208

main56116-22050×2i200208

TYPE C:REFER ILLUST.

63111PANEL, ROOF

main63111-52130i199908-200208

63132PANEL, WINDSHIELD HEADER, INNER

main63132-52010i199908-199912

main63132-52011i200208-200511

63133BFRAME, BACK WINDOW

main63133-52010i199908-200208

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-52010i199908-200208

64101PANEL SUB-ASSY, UPPER BACK

main64101-52030i199908-200104

W(CENTER SEAT BELT)

main64101-52040i199908-200104

W(6:4 SPRIT REAR SEAT & CENTER SEAT BELT)

main64101-52060i200104-200208

W(CENTER SEAT BELT)

main64101-52070i200104-200208

W(6:4 SPRIT REAR SEAT & CENTER SEAT BELT)

64811GLASS, BACK WINDOW

main64801-52010i200208-200411

*TT,T=3.1,GREEN

main64801-52020i200412

*EHTT,T=3.1,GREEN

main64801-52030i200208-200411

*EHTT,T=3.1,GREEN,COLD SPEC

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-52030i199908-200208

75575EMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-52010i199908-200208

9026905045

main90269-05045

10 parts on this diagram · 1 diagram in section

ROOF PANEL & BACK WINDOW GLASS for Toyota ECHO

This section contains 10 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota ECHO. Key components include: STOPPER, BACK WINDOW GLASS, NO.1, PANEL, ROOF, PANEL, WINDSHIELD HEADER, INNER, FRAME, BACK WINDOW, REINFORCEMENT, ROOF PANEL, CENTER.
