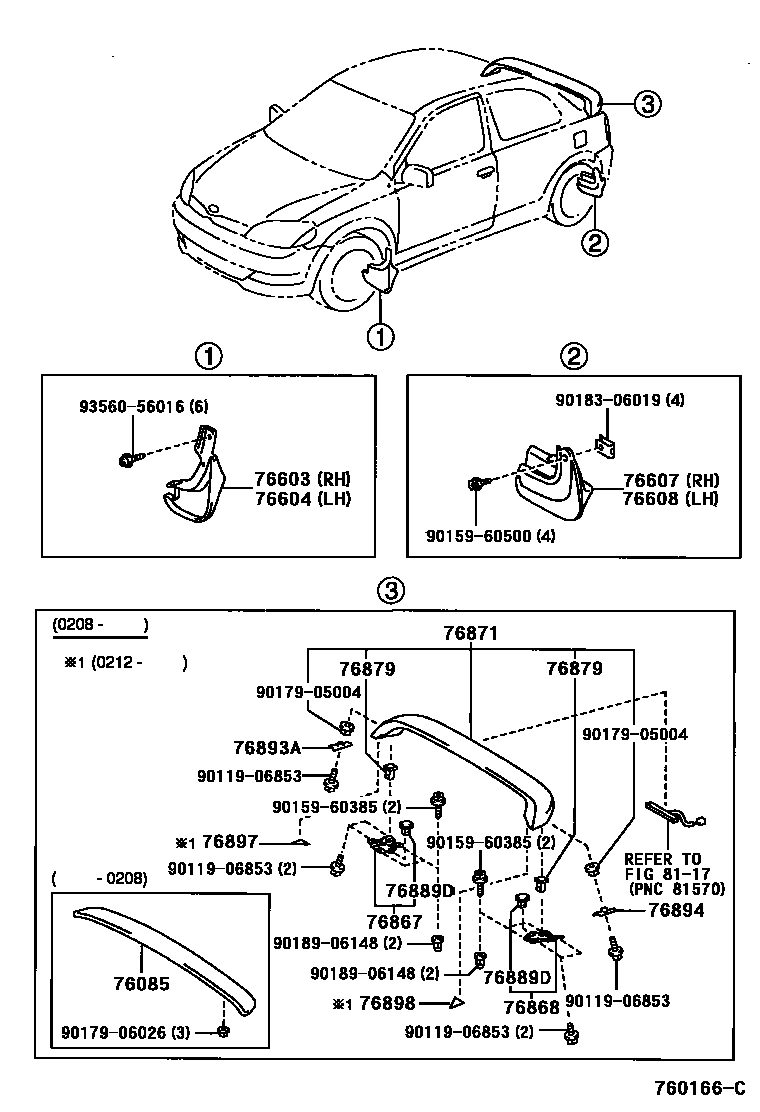

Toyota ECHO — MUDGUARD & SPOILER
76085SPOILER SUB-ASSY, REAR
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76867RETAINER, REAR SPOILER SIDE, RH
76868RETAINER, REAR SPOILER SIDE, LH
76871SPOILER, REAR
76879CLIP, REAR SPOILER, NO.1
76889DCLIP, REAR SPOILER, NO.2
76893ACOVER, REAR SPOILER, RH
76894COVER, REAR SPOILER, LH
76897PROTECTOR, REAR SPOILER, SIDE RH
76898PROTECTOR, REAR SPOILER, SIDE LH
8117
9011906853
main90119-06853
9015960385
main90159-60385
9015960500
main90159-60500
9017905004
main90179-05004
9017906026
main90179-06026
9018306019
main90183-06019
9018906148
main90189-06148
9356056016
main93560-56016
23 parts on this diagram · 3 diagrams in section
