Toyota ECHO — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W030iNCP12199908-200208

main87810-52040iNCP12200208

sub87810-52041

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-1A840iNCP12199908-200208

LEVER REMOTE CONTROL MIRROR

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-1E840iNCP12199908-200208

LEVER REMOTE CONTROL MIRROR

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-52210iNCP12199908-200003

main87910-52211iNCP12200208-200308

main87910-52230iNCP12199908-200003

LEVER REMOTE CONTROL

main87910-52231iNCP12200003-200208

LEVER REMOTE CONTROL MIRROR

sub87910-52232

main87910-52590iNCP12200308

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-52190iNCP12199908-200003

main87940-52191iNCP12200208-200308

main87940-52210iNCP12199908-200003

LEVER REMOTE CONTROL

main87940-52211iNCP12200003-200208

LEVER REMOTE CONTROL MIRROR

sub87940-52212

main87940-52560iNCP12200308-200602

9017906208

main90179-06208

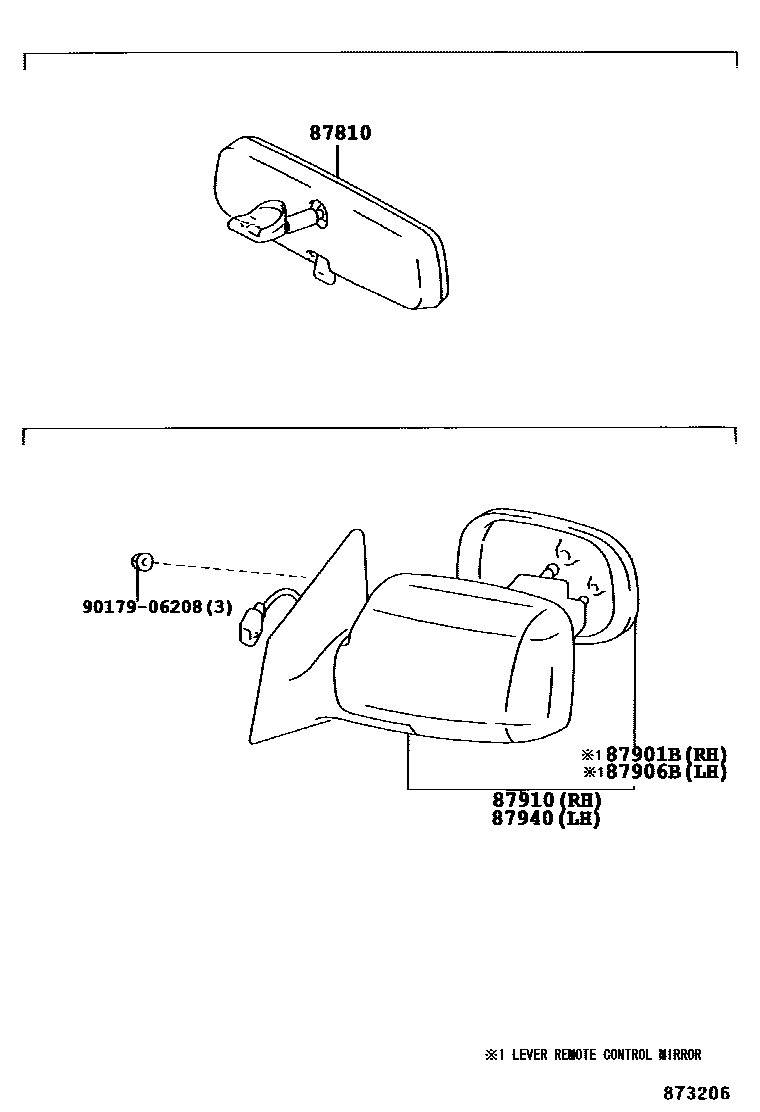

6 parts on this diagram · 1 diagram in section
